Peerless-AV IMAM Display Adaptor for I-Beams up to 12" Wide

IMAM – Peerless-AV Display Adaptor for I-Beams up to 12" Wide

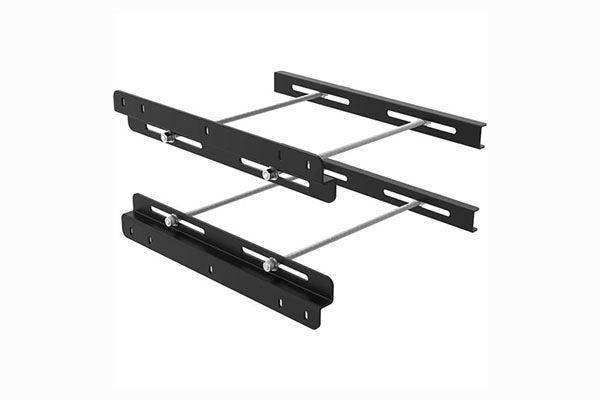

The Peerless-AV IMAM is an I-beam display adaptor that allows compatible Peerless-AV wall mounts to be secured to structural I-beams up to 12" wide, enabling display installations in industrial, stadium, arena, and other environments where traditional wall mounting is not available.

Product Description

The IMAM I-Beam Mount solves a mounting challenge that is common in industrial and large-venue environments: the absence of suitable wall or ceiling surfaces for traditional flat panel mounting. By clamping directly to structural I-beams, this adaptor makes it possible to position digital signage displays, KPI dashboards, and branded content screens precisely where they are most visible, without requiring wall framing or structural modification.

The mount’s corrosion-resistant construction allows for deployment in outdoor or semi-outdoor environments such as stadiums, arenas, and parking structures where the hardware will be exposed to humidity, temperature variation, and other environmental factors that would compromise standard powder-coated steel. The adjustable depth feature accommodates varying I-beam flange widths within the 12" maximum, providing flexibility across different structural steel profiles.

When used in indoor manufacturing facilities, the IMAM provides a practical platform for production floor digital dashboards displaying KPI reporting, Six Sigma metrics, or branded content during customer visits. Its compatibility with a wide range of Peerless-AV wall mount models means integrators can pair it with the appropriate mount head for the specific display and viewing requirements of each installation.

Key Features

• Attaches to structural I-beams up to 12" wide, enabling display mounting in environments where wall or ceiling attachment points are not available.
• Corrosion-resistant construction allows for outdoor and semi-outdoor use in stadiums, arenas, parking garages, and similar venues.
• Adjustable depth accommodates different I-beam flange widths, providing flexibility across varied structural steel profiles.
• Maximum load capacity of 225 lb supports large-format commercial displays in demanding installation environments.
• Compatible with a wide range of Peerless-AV indoor and outdoor wall mount models, enabling integrators to match the appropriate mount head to each application.
• Supports both indoor manufacturing applications (digital dashboards, KPI displays) and outdoor venue deployments (stadiums, arenas).
• RoHS-certified and environmentally friendly construction.
• Five-year limited warranty provides long-term coverage for permanent commercial installations.

Typical Applications

The IMAM is used in commercial and industrial environments where structural I-beams are the only available mounting points, including manufacturing facilities, warehouses, sports arenas, outdoor stadiums, and parking structures. It is particularly well suited for production floor digital signage, KPI dashboards, and branded display installations in customer-facing industrial spaces where conventional wall mounting is not feasible.

Technical Specifications

Frequently Asked Questions

What Peerless-AV wall mounts are compatible with the IMAM?

The IMAM is compatible with a wide range of Peerless-AV indoor and outdoor wall mount models, including the SF630, SF640, SF650, SF660, ST640, ST650, SP730P, SP740P, SA730P, SA740P, PF630, PF640, PT640, and many others. Consult the full compatibility list or contact Creation Networks for guidance on pairing the IMAM with the correct mount head for your display and installation requirements.

Can the IMAM be used outdoors?

Yes. The IMAM’s corrosion-resistant construction is rated for outdoor and semi-outdoor use in environments such as stadiums, arenas, and parking structures where hardware will be exposed to weather and humidity.

What is the maximum I-beam width the IMAM can accommodate?

The IMAM is designed for I-beams up to 12" wide. The adjustable depth feature allows the adaptor to clamp securely across the full range of flange widths within that maximum.
