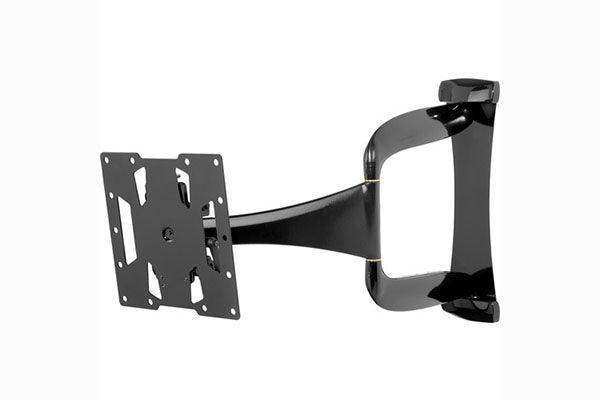

Peerless-AV SUA740P – DesignerSeries Ultra Slim Articulating Wall Mount for 32"–40" Displays

SUA740P – Peerless-AV DesignerSeries Ultra Slim Articulating Wall Mount for 32"–40" Displays

The Peerless-AV SUA740P DesignerSeries Ultra Slim Articulating Wall Mount is engineered exclusively for ultra-thin 32"–40" flat panel displays, retracting to just 1.74" from the wall while extending up to 24.74" for flexible viewing positions.

Product Description

The SUA740P is one of the slimmest articulating arm mounts available for ultra-thin displays, with a gloss black finish that is designed to complement contemporary residential and commercial interiors. The exclusive One-Touch tilt mechanism allows the display angle to be changed without tools, making it practical in environments where viewing angle adjustments are frequent, such as conference rooms, hospitality suites, or executive offices.

Post-installation adjustments are a standout feature of the SUA740P. Vertical adjustment of ±0.5" (13mm) allows the display to be raised or lowered after mounting without reinstalling the wall plate, and ±5° of roll correction addresses minor wall imperfections or stud placement deviations. With up to ±90° of side-to-side swivel, the display can be directed toward different seating positions within the same room.

The VESA-compatible design supports 200 x 100mm and 200 x 200mm mounting patterns, and internal cable management routes cables through the arm for a clean finish. The SUA740P fits displays up to the weight capacity specified for its VESA size range. Find the SUA740P and the full Peerless-AV articulating mount lineup at Creation Networks.

Key Features

• Ultra-slim profile: Arm retracts to just 1.74" (44mm) from the wall, keeping ultra-thin displays flush to the surface when not extended, for a low-profile appearance.
• Extends up to 24.74" (628mm): Full extension pulls the display well away from the wall to accommodate flexible seating arrangements or projection clearance.
• One-Touch tilt mechanism: Provides +15°/-5° of tilt adjustment without tools, allowing quick viewing angle changes in active-use environments.
• ±90° side-to-side swivel: Allows the display to pivot to either side for broad audience coverage or to direct the screen toward a specific area of the room.
• ±0.5" vertical post-installation adjustment: Fine-tunes display height by up to 13mm after installation without removing the mount from the wall.
• ±5° roll for post-installation leveling: Corrects display tilt caused by uneven walls or stud placement without tools, after the display is already mounted.
• Internal cable management: Routes cables through the arm for a clean, finished installation appearance suited to professionally designed spaces.
• VESA 200 x 100mm and 200 x 200mm compatible: Supports standard ultra-thin display mounting patterns with gloss black finish to match modern display aesthetics.

Technical Specifications
