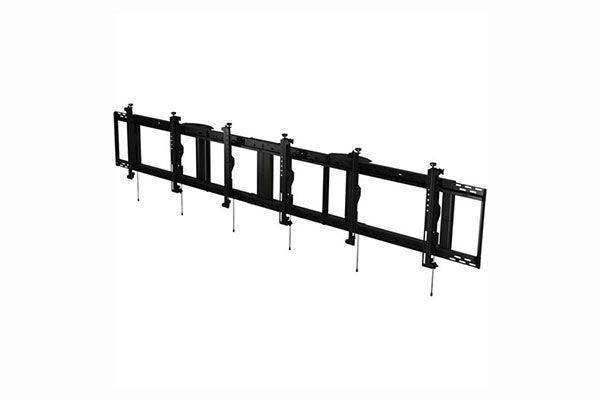

Peerless-AV DS-MBZ942L-3X1 – 3x1 Menu Board Ceiling Mount

Product Overview

The Peerless-AV DS-MBZ942L-3X1 is a SmartMount menu board ceiling mount that suspends three 40" to 42" displays in a 3x1 landscape configuration. Built for quick service restaurant (QSR) menu boards and similar multi-display signage, this ceiling mount uses connecting wall plates and tool-less adjustment to align all three screens on a single plane. It gives integrators a repeatable way to deploy ceiling-hung digital menu boards with a continuous, professional appearance.

Product Description

The DS-MBZ942L-3X1 menu board ceiling mount supports three landscape displays from 40" to 42" with a combined load capacity of 300 lb, using a universal mounting interface up to 600 x 400mm VESA. Tool-less 8-point adjustment provides depth, horizontal, and tilt control at each corner so the installer can level and align every screen without tools. Continuous and IncreLok tilt options let all three displays tilt to the same angle for consistent sightlines, while quick-connect adaptor rails auto-latch to the support frame to speed installation.

Designed primarily for QSR and fast-casual environments, this ceiling-mounted digital menu board solution also fits retail counters, transportation terminals, and other settings that require a clean, multi-screen overhead array. Included security hardware deters tampering and theft in public-facing locations. This mount requires compatible drop columns and a ceiling adaptor for the structure overhead; integrators can review related Peerless-AV mounting hardware in the Peerless-AV collection at Creation Networks.

Key Features

• 3x1 Landscape Configuration — Suspends three 40" to 42" displays side by side for a continuous overhead menu board.
• 300 lb Load Capacity — Supports the combined weight of three commercial displays plus mounting hardware.
• Tool-Less 8-Point Adjustment — Provides depth, horizontal, and tilt control at each corner to align all screens on the same plane.
• Continuous and IncreLok Tilt — Lets every display tilt to the same fixed angle for consistent viewing across the array.
• Quick-Connect Adaptor Rails — Auto-latch to the support frame so displays hang quickly and securely during installation.
• Connecting Wall Plates — Create a continuous mounting surface for a seamless menu board appearance.
• Security Hardware — Deters tampering and theft in public-facing QSR and retail environments.
• TAA Compliant, US Made — Manufactured in the United States and TAA compliant for government and institutional procurement.

Typical Applications

• Quick service restaurant (QSR) and fast-casual menu boards
• Retail point-of-sale and counter signage
• Transportation terminal information displays
• Commercial digital signage in high-traffic spaces

Technical Specifications

Frequently Asked Questions

How many displays does the DS-MBZ942L-3X1 hold?
It holds three landscape displays from 40" to 42" in a 3x1 row, with a combined load capacity of 300 lb.

Does it need additional hardware to reach the ceiling?
Yes. The mount attaches to compatible drop columns and a ceiling adaptor selected for the overhead structure; these are ordered separately based on the install height and ceiling type.

How are the displays aligned?
Tool-less 8-point adjustment provides depth, horizontal, and tilt control at each corner so all three displays sit on the same plane, while connecting wall plates create a continuous surface.

What VESA patterns are supported?
The universal interface supports patterns from 100 x 100mm up to 600 x 400mm.

Is it suitable for government or institutional projects?
Yes. The mount is manufactured in the United States and is TAA and RoHS compliant.

Is the hardware secure in public spaces?
Included security hardware deters tampering and theft, which is important for public-facing QSR and retail menu boards.

What warranty is included?
Peerless-AV backs the DS-MBZ942L-3X1 with a 5-year limited warranty.
