Peerless-AV DS-MBZ942L-2X1 – 2x1 Menu Board Ceiling Mount

Product Overview

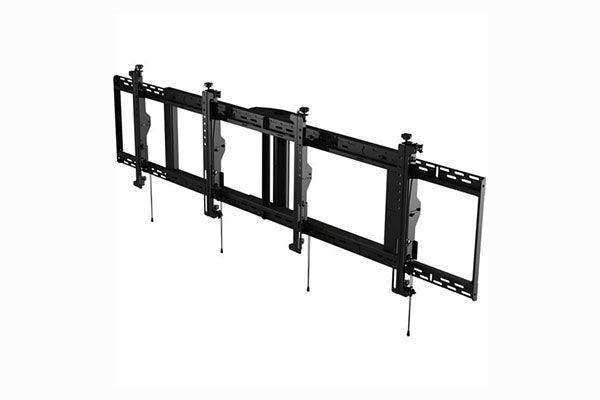

The Peerless-AV DS-MBZ942L-2X1 is a SmartMount digital menu board ceiling mount built for quick-service restaurants and retail signage. It suspends two 40" to 42" displays in a 2x1 landscape configuration from a single ceiling frame, supporting up to 200 lb (90.72 kg). Tool-less 8-point adjustment and Increlok tilt let integrators align both screens on the same plane for a continuous menu board surface.

Product Description

This ceiling-mounted menu board mount is intended for environments where displays must hang from the structure rather than a wall, such as QSR order counters and retail aisles. Connecting wall plates create a continuous mounting surface, and tool-less four-corner depth adjustment lets the installer bring all displays onto the same plane without hand tools. Horizontal adjustment closes the gap between panels for a tight, professional menu board, while the Increlok tilt option locks each display to a matching angle from 0 to 15 degrees. Quick connect adaptor rails auto-latch to the support frame to speed installation and keep displays secure during setup. Included security hardware deters tampering in public, customer-facing spaces. The mount accepts VESA patterns from 100 x 100 up to 600 x 400 mm. Explore comparable fixtures in the Peerless-AV collection at Creation Networks.

Key Features

• 2x1 Landscape Configuration — Mounts two 40" to 42" displays side by side from a single ceiling frame for a unified menu board.
• Tool-less 8-Point Adjustment — Four-corner depth and micro-adjustment align all displays on the same plane without hand tools.
• Increlok Tilt — Continuous and fixed tilt from 0 to 15 degrees locks every display to a consistent angle.
• Quick Connect Adaptor Rails — Auto-latching rails engage the support frame to speed installation and secure each display.
• Horizontal Adjustment — Lets the installer close gaps between panels for a continuous signage surface.
• Security Hardware — Included tamper-resistant hardware deters theft in customer-facing locations.
• 200 lb Load Capacity — Supports a combined display load up to 200 lb (90.72 kg).

Typical Applications

• Quick-service and fast-casual restaurants
• Retail point-of-sale and checkout areas
• Transportation hubs and wayfinding
• Hospitality and concession environments

Technical Specifications

Frequently Asked Questions

How many displays does the DS-MBZ942L-2X1 hold?
It mounts two 40" to 42" displays in a 2x1 landscape configuration from a single ceiling frame.

What is the maximum load capacity?
The mount supports a combined display load up to 200 lb (90.72 kg).

How are the displays aligned?
Tool-less 8-point adjustment, horizontal adjustment, and Increlok tilt let the installer align all panels on the same plane and angle without hand tools.

What VESA patterns are supported?
The mount accommodates VESA patterns from 100 x 100 up to 600 x 400 mm.

Is it TAA compliant?
Yes. The DS-MBZ942L-2X1 is TAA compliant and RoHS compliant, supporting government and institutional procurement.

Does it include security hardware?
Yes. Tamper-resistant security hardware is included to deter theft in customer-facing locations.

What warranty applies?
Peerless-AV provides a 5-year limited warranty.
