Peerless-AV PLCM-UNL-CP Universal Ceiling Mount with Ceiling Plate

PLCM-UNL-CP – Peerless-AV SmartMount Universal Ceiling Mount with Ceiling Plate

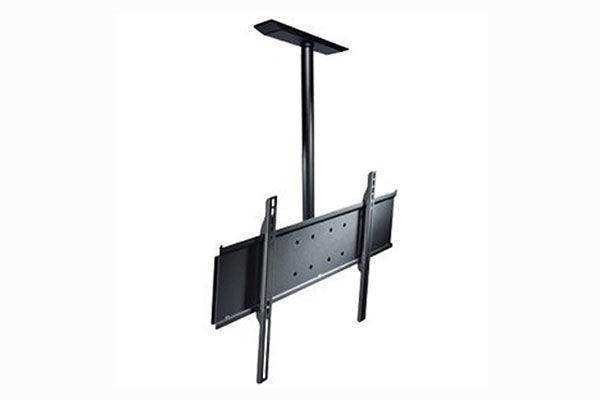

The Peerless-AV PLCM-UNL-CP SmartMount Universal Ceiling Mount combines a universal I-shaped adaptor plate, tilt box, and 1.5" NPT aluminum extension column into a complete ceiling mounting solution for 32" to 60" flat panel displays in high-traffic commercial AV environments.

Product Description

The PLCM-UNL-CP is a fully integrated ceiling mount kit that brings together the PLP-UNL Universal I-Shaped Adaptor plate, the PLCM-2 tilt box, and the EXT103 fixed-length 1.5" NPT aluminum extension column. This combination delivers a 36" drop from the ceiling attachment point and accommodates display mounting hole patterns up to 600 x 400mm — covering the vast majority of commercial flat panels on the market today.

The 1.5" NPT threaded pipe system gives integrators the flexibility to swap extension columns for custom drop lengths without replacing the entire mount assembly. Integrated cable management routes and conceals cabling within the column, eliminating exposed wires and producing a polished result that meets the expectations of corporate, hospitality, and institutional clients.

With an adjustable tilt range of -5° to +20° and 360° of swivel, the PLCM-UNL-CP allows precise display positioning after installation. The simple hook-on display installation method reduces on-site labor time, and landscape or portrait orientation is supported to suit diverse signage and content strategies. Select PLCM-UNL-CP-AB and -AW models include an Agion antimicrobial finish for healthcare and high-contact installations.

Key Features

• Universal I-Shaped Adaptor Plate — Fits displays with VESA mounting hole patterns up to 600 x 400mm, providing broad compatibility across major commercial display brands.
• Landscape and Portrait Orientation — Supports both display orientations so the mount can be configured for standard video content or vertical digital signage without additional hardware.
• Integrated Cable Management — Cables are routed, protected, and concealed within the column for a clean, professional finish that satisfies AV design standards.
• Agion Antimicrobial Finish — Available on -AB and -AW color variants; assists in controlling surface microbial growth in healthcare facilities and other high-touch environments.
• Hook-On Display Installation — The display hooks onto the adaptor plate for straightforward, single-person installation without the need for additional tools or staging equipment.
• Adjustable Tilt and Swivel — -5° to +20° of tilt and 360° of swivel allow the installer to dial in the optimal viewing angle after the display is hung.
• EXT103 Aluminum Extension Column Included — The included column provides a 36" drop; the 1.5" NPT threading is compatible with additional Peerless-AV extension pipes for custom drop heights.
• Ceiling Plate Included — Ships complete with a matching ceiling plate, eliminating the need to source and verify compatibility with a separate ceiling canopy component.

Typical Applications

The PLCM-UNL-CP is well suited to commercial AV installations where displays must be suspended from the ceiling in open or semi-open spaces. Typical deployment environments include airport gate areas and terminal concourses, sports facility concession and seating zones, hotel lobbies, retail floor displays, and corporate common areas where eye-level wall mounting is not feasible. The antimicrobial model variants extend suitability to hospital waiting rooms, clinic corridors, and other healthcare settings.

Technical Specifications

Frequently Asked Questions

What displays are compatible with the PLCM-UNL-CP?

The mount is compatible with 32" to 60" flat panel displays that have VESA mounting hole patterns up to 600 x 400mm. This covers the majority of commercial LCD and LED displays from leading manufacturers.

Can I adjust the drop length if 36" is not sufficient for my installation?

Yes. The EXT103 column included with the kit uses a standard 1.5" NPT thread. Additional Peerless-AV NPT extension pipes can be substituted or added to achieve a custom drop height for high-ceiling environments.

Is the ceiling plate included or sold separately?

The PLCM-UNL-CP ships with a ceiling plate as part of the kit. This distinguishes it from the PLCM-UNL, which does not include the ceiling plate and is intended for installations using a customer-supplied or pre-existing ceiling canopy.
