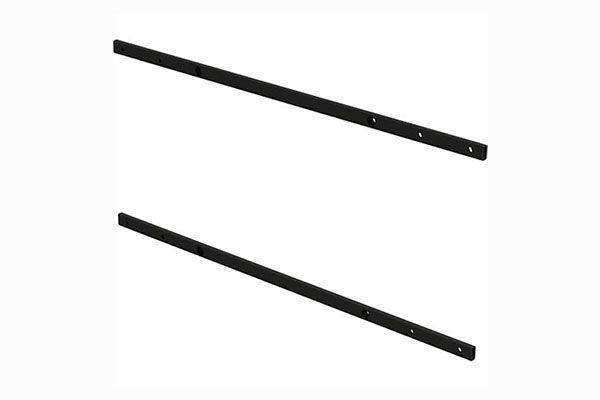

Peerless-AV ACC-V1500X Mount Adaptor Rails for 1200mm and 1500mm Wide Display Mounting Patterns

ACC-V1500X – Peerless-AV Mount Adaptor Rails for 1200mm and 1500mm Wide Displays

The Peerless-AV ACC-V1500X adaptor rails extend the compatibility of existing Peerless-AV mounts to accommodate large-format displays with 1200mm and 1500mm wide VESA mounting hole patterns, supporting commercial flat panels in the 75" to 110" class without requiring a full mount replacement.

Product Description

As display sizes in commercial AV installations continue to increase, installers frequently encounter situations where a mount originally specified for a smaller display must be upgraded to accommodate a larger panel. Replacing the entire mount assembly is the obvious solution, but it is also the most expensive and most disruptive one. The ACC-V1500X provides a more efficient path: it attaches to the existing mount’s 400mm or 500mm-wide mounting interface and extends the effective mounting width to support 1200mm and 1500mm wide hole patterns found on very large commercial displays.

The rails support portrait and landscape mounting orientations, and security hardware is included to deter tampering and theft — a practical consideration in public-facing commercial environments such as retail stores, airports, and hospitality venues. The black powder-coated finish maintains a consistent appearance with standard Peerless-AV mount hardware and commercial display bezels.

This approach is particularly valuable in video wall and large-format display upgrade scenarios, where the structural ceiling or wall attachment points and extension columns are already in place. Rather than disturbing the structural elements of the installation, the ACC-V1500X adapter allows the display interface to be upgraded in place.

Key Features

• 1200mm and 1500mm VESA Pattern Support — Extends mount compatibility to the wide mounting hole patterns found on very large commercial flat panels, including displays in the 75" to 110"+ class.
• Attaches to 400mm or 500mm-Wide Mount Interfaces — Compatible with existing Peerless-AV mounts that have 400mm or 500mm-wide mounting patterns, enabling in-place display upgrades without replacing the mount assembly.
• Portrait and Landscape Orientation Support — Accommodates both display orientations, making the rails suitable for standard video content displays and vertical digital signage installations.
• Security Hardware Included — Tamper-resistant fasteners are supplied to deter unauthorized display removal in public-facing commercial environments.
• Black Powder-Coated Finish — Provides corrosion resistance and a consistent appearance that matches standard Peerless-AV mount hardware and commercial display frames.
• Extends Installation Lifecycle — Allows an existing mount infrastructure to support a larger replacement display, reducing the cost and disruption of display upgrade projects.

Typical Applications

The ACC-V1500X is used in commercial AV installations where a very large flat panel display — typically in the 75" to 110" or larger category — must be mounted to an existing Peerless-AV mount that was originally specified for a smaller display. Common scenarios include retail store display upgrades where larger panels are replacing older, smaller screens on existing mount infrastructure, video wall builds where a single large display is used in place of a tiled array, airport and transportation terminal information displays, and large-format displays in hotel lobbies and conference centers. The security hardware makes it particularly appropriate for installations in publicly accessible spaces.

Technical Specifications

Frequently Asked Questions

What is the maximum display weight the ACC-V1500X supports?

The load capacity of the ACC-V1500X installation is governed by the weight rating of the Peerless-AV mount to which the rails are attached, not solely by the rails themselves. Verify that your existing mount’s rated load capacity is sufficient for the weight of the new display. Contact Creation Networks at creationnetworks.net for guidance on confirming mount load compatibility.

Do the ACC-V1500X rails work with mounts from other manufacturers?

The ACC-V1500X is designed to attach to mounts with 400mm or 500mm-wide Peerless-AV mounting interfaces. Compatibility with third-party mount hardware is not guaranteed and should be verified by measuring the attachment point dimensions before ordering.

Can the ACC-V1500X be used to mount a display in portrait orientation for digital signage?

Yes. The rails support both landscape and portrait display orientations. When mounting in portrait orientation, confirm that the display’s 1200mm or 1500mm mounting hole dimension aligns with the rail span in the rotated position, as some large-format displays have asymmetric VESA patterns.
