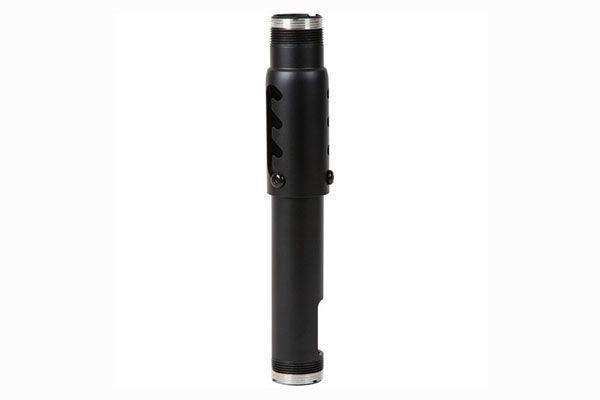

Peerless-AV AEC009012 – 9"-12" Adjustable Extension Column

AEC009012 – Peerless-AV 9"-12" Adjustable Extension Column

The AEC009012 is a 9 to 12-inch adjustable aluminum extension column from Peerless-AV, featuring a 1-1/2"-11.5 NPT threaded connection on both ends, 1-inch height adjustment increments, and integrated internal cable management for clean AV installations.

Product Description

Extension columns are a fundamental component in ceiling-mounted display and projector installations, determining how far the display or projector hangs below the ceiling mount point. The AEC009012 provides 9 to 12 inches of adjustable drop length, which covers the range needed when the exact ceiling height or desired display position is not known at the time of specification, or when fine-tuning the drop height on site after initial installation.

Adjustment is made in 1-inch (25mm) increments using a notched slot design that allows the column length to be set and then locked securely at the desired position. This incremental locking mechanism is more reliable than stepless adjustment systems in commercial environments where vibration or incidental contact could shift an unlocked column over time. The aluminum construction keeps the column lightweight for ease of handling and installation, and the cylindrical profile provides ample internal space to route and conceal multiple cables.

Both ends of the AEC009012 are threaded to the 1-1/2"-11.5 NPT (38mm) standard, making it compatible with the broad range of Peerless-AV ceiling mounts, projector mounts, and display mount accessories that use this thread standard. The column is RoHS compliant, manufactured in the United States, and carries a 5-year limited warranty.

Key Features

• Adjustable drop length from 9 to 12 inches to accommodate varying ceiling heights and display positioning requirements.
• Notched slot adjustment design allows height to be set and locked in 1-inch (25mm) increments.
• Lightweight aluminum construction reduces handling weight during installation and lowers shipping cost.
• Internal cylindrical cavity provides cable management capacity for multiple cables within a single column.
• 1-1/2"-11.5 NPT (38mm) threading on both ends for compatibility with Peerless-AV ceiling and display mounts.
• Lockable position secures the column length against accidental movement after installation.
• RoHS compliant, manufactured in the United States, with a 5-year limited warranty.

Technical Specifications
