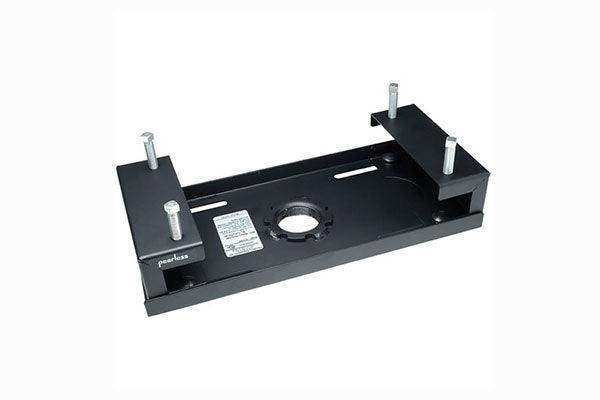

Peerless-AV ACC559 – 7" to 12" I-Beam Clamps for Ceiling Mount Columns
Peerless-AV ACC559 – 7" to 12" I-Beam Clamps for Ceiling Mount Columns is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Peerless-AV ACC559 – 7" to 12" I-Beam Clamps for Ceiling ...
ACC559 – 7" to 12" I-Beam Clamps for Peerless-AV Ceiling Mount Columns
The Peerless-AV ACC559 I-Beam Clamps provide a 250 lb rated steel anchor point for attaching Peerless-AV ceiling mount extension columns directly to overhead structural I-beams, with a 1-1/2"-11.5 NPS threaded fitting compatible with multiple fixed-length and adjustable column models.
Product Description
In commercial and industrial spaces where ceiling drywall or concrete decks are not viable mounting surfaces — such as warehouses, manufacturing facilities, retail floors with open ceilings, and large-format conference rooms — structural I-beams are often the only available overhead anchor point. The ACC559 is the purpose-built clamp assembly for this application, designed to attach to I-beams with a flange width of 7" to 12".
The clamp assembly accepts a 1-1/2"-11.5 NPS threaded fitting, the standard thread specification used across Peerless-AV's extension column lineup. This means the ACC559 is compatible with several fixed-length and adjustable extension column models, giving the integrator flexibility to specify the correct drop height for the installation without changing the structural attachment method.
Constructed from steel and rated to 250 lb, the ACC559 provides a load capacity appropriate for projector and display ceiling mount systems. The black finish matches standard Peerless-AV hardware, and the product is manufactured in the United States.
Key Features
- Attaches Peerless-AV ceiling mount extension columns to structural I-beams with a flange width of 7" to 12".
- Maximum load capacity of 250 lb rated for supporting commercial projector and display ceiling mount systems.
- 1-1/2"-11.5 NPS threaded fitting is compatible with multiple Peerless-AV fixed-length and adjustable extension columns.
- Two adjustment range sizes available: 4" (102 mm) and 5" (127 mm) for different I-beam flange dimensions.
- Steel construction provides the structural durability required for permanent overhead commercial installations.
- Black finish coordinates with standard Peerless-AV mounting hardware.
- Manufactured in the United States.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | ACC559 |
| Color | Black |
| Material | Steel |
| I-Beam Flange Width Range | 7" to 12" |
| Adjustment Range Options | 4" (102 mm) or 5" (127 mm) |
| Maximum Load Capacity | 250 lb |
| Thread Specification | 1-1/2"-11.5 NPS |
| Device Supported | Mounting column (ceiling mount) |
| Approximate Weight | 4.80 lb |
| Country of Origin | United States |
