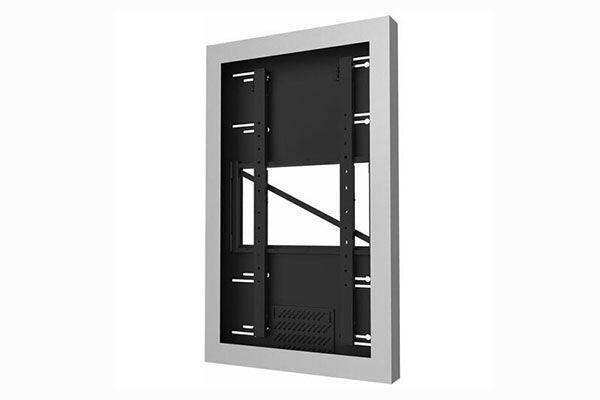

Peerless-AV KIP655-S – 55" Portrait Wall Kiosk Enclosure Silver

Product Overview

The Peerless-AV KIP655-S is a 55-inch portrait wall kiosk enclosure in a silver finish, designed for commercial digital signage installations that demand a slim ADA-compliant profile in high-visibility public environments. This portrait-oriented in-wall kiosk supports most ultra-thin commercial displays at a 3.97-inch depth, and provides integrated space for media players, fans, and accessory electronics to create a complete, self-contained interactive signage solution. Retail directories, healthcare wayfinding kiosks, and transportation information displays are among the primary use cases targeted by commercial AV integrators specifying the KIP655-S.

Product Description

The KIP655-S wall kiosk enclosure accommodates displays up to 55 inches in a portrait orientation, transforming static directories, movie posters, wayfinding maps, or letter boards into dynamic digital experiences. The enclosure extends 3.97 inches (101mm) from the finished wall surface—slim enough to satisfy ADA wall-protrusion requirements while still providing sufficient internal volume to house a media player, signal extender, or other compact peripheral alongside the display. VESA compatibility spans 200×200mm up to 400×600mm, supporting the mounting patterns of most commercial displays in this size class.

A hinged top frame provides quick access to the display and internal components for maintenance, content hardware swaps, and troubleshooting without requiring tools to disassemble the enclosure front. The eight-way tool-less display adjustment system allows installers to position the panel flush within the kiosk window opening for a refined, professional appearance from day one. Thermostat-controlled circulation fans actively manage heat within the enclosure, protecting the display and supporting electronics from thermal stress during continuous commercial operation hours.

The KIP655-S is offered in a silver finish and supports a range of aesthetic customization options including glass or acrylic front panels, alternative powder-coat colors, and vinyl wraps to integrate with brand environments or architectural interiors. Peerless-AV manufactures the KIP655-S in the United States. The enclosure is RoHS certified and backed by a 5-year limited warranty, providing integrators and end users with long-term confidence in the investment.

Key Features

• 55-Inch Portrait Orientation — Designed specifically for portrait-oriented applications including digital directories, wayfinding displays, and interactive information terminals.
• ADA-Compliant 3.97" Profile — Extends 101mm from the wall surface while providing full internal capacity for display plus peripheral equipment, meeting ADA protrusion standards.
• Hinged Top Frame Access — Provides tool-free entry to the display and internal components for efficient maintenance and hardware changes.
• Eight-Way Tool-Less Display Adjustment — Positions the display flush in the kiosk window for a polished installation without specialty tools.
• Accommodates Displays up to 2.00" (50mm) Thick — Supports ultra-thin commercial display form factors while maintaining the slim kiosk profile.
• Thermostat-Controlled Circulation Fans — Actively manages enclosure temperature to protect the display and co-housed electronics during extended operation.
• VESA 200×200 to 400×600mm Compatibility — Covers the mounting patterns of most commercial 55-inch flat panel displays.
• Pre-Assembled Construction — Ships ready for installation, reducing on-site labor and simplifying the deployment process.
• Silver Finish with Customization Options — Standard silver finish; supports glass/acrylic fronts, alternative colors, and vinyl wraps.
• USA Manufactured, RoHS Certified — Domestically produced with restricted hazardous substances compliance for commercial AV deployments.
• 5-Year Limited Warranty — Backed by Peerless-AV's commercial warranty for long-term project reliability.

Typical Applications

• Retail digital directories and interactive product information displays
• Corporate lobby and reception wayfinding kiosks
• Healthcare facility patient wayfinding and information terminals
• Transportation hub gate and schedule information displays
• Hospitality self-service check-in and concierge stations
• Government and municipal public information terminals
• Multi-purpose room and auditorium digital signage kiosks

Technical Specifications

Frequently Asked Questions

Q: Why would an integrator choose a portrait orientation kiosk over a landscape model like the KIL747 or KIL748?

A: Portrait-oriented kiosks are preferred for applications such as wayfinding directories, digital menu boards, elevator lobby signage, and interactive information terminals where vertical content layout matches how users consume the information. Landscape enclosures are generally better suited for video content or wide-format data displays.

Q: Does the KIP655-S meet ADA protrusion requirements?

A: Yes. The KIP655-S extends 3.97 inches (101mm) from the finished wall surface, which satisfies the Americans with Disabilities Act protrusion limits for wall-mounted objects in publicly accessible circulation paths.

Q: Can a media player be housed inside the KIP655-S alongside the display?

A: Yes. The enclosure is designed with sufficient internal volume to accommodate a compact media player, signal distribution device, or other small peripheral alongside the display, supported by the thermostat-controlled fan system to manage heat.

Q: What display thickness does the KIP655-S support?

A: The KIP655-S accommodates displays up to 2.00 inches (50mm) thick, covering the profile of most current ultra-thin commercial displays in the 55-inch class.

Q: How does a technician service the display after the kiosk is installed?

A: The KIP655-S features a hinged top frame that opens to provide direct access to the display and internal components without requiring disassembly of the enclosure front panel.

Q: Is the KIP655-S available in finishes other than silver?

A: The standard configuration is silver. Peerless-AV supports custom finish options including alternative powder-coat colors, glass or acrylic front panels, and vinyl wraps. Contact Creation Networks at creationnetworks.net/pages/contact for custom finish inquiries.

Q: What is the warranty on the KIP655-S?

A: The KIP655-S is covered by a 5-year limited warranty from Peerless-AV covering manufacturing defects in the enclosure, mount mechanism, and integrated fan system under normal commercial use.
