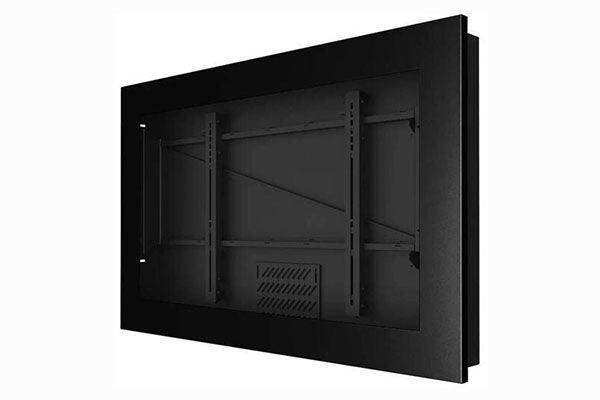

Peerless-AV KIL755 – 55" Landscape In-Wall Kiosk Enclosure

Product Overview

The Peerless-AV KIL755 is a landscape in-wall kiosk enclosure that recesses a 55" commercial display into the wall for flush, large-format digital signage. With a finished profile less than 1" from the wall surface, this in-wall kiosk enclosure creates a clean architectural look for retail, hospitality, and entertainment environments. It is built for integrators who want a recessed digital signage solution that conceals the display, media player, and thermal management inside the wall cavity.

Product Description

The KIL755 in-wall kiosk enclosure accommodates 55" displays up to 3.10" (78 mm) thick and supports VESA mounting patterns from 200 x 200 up to 400 x 600 mm, with a maximum display load of 75 lb. It fits within standard wood-stud wall construction and can be integrated into new builds or retrofit walls. Extending mount arms and a removable front cover give the installer easy access to the display and internal components during installation and maintenance, and eight-way micro-adjustment positions the display within the kiosk window for a flush, even fit.

A thermostat-controlled fan draws air into the enclosure to maintain proper airflow for the display and any signage electronics. The recessed design extends about 1" from the wall, supporting ADA-compliant installation, and the enclosure ships pre-assembled to reduce on-site labor. The gloss black finish supports a range of aesthetic options including glass or acrylic faces and vinyl wraps. For on-wall and portrait kiosk alternatives, browse the full Peerless-AV collection at Creation Networks.

Key Features

• Recessed 55" Landscape Design — Mounts a 55" display in the wall with a finished profile less than 1" thin for a flush appearance.
• Fits Standard Stud Walls — Accommodates displays up to 3.10" (78 mm) thick within standard wood-stud construction, for new builds or retrofit.
• Extending Mount Arms and Removable Front Cover — Provide easy access to the display and internal components during installation and service.
• Eight-Way Micro-Adjustment — Positions the display within the kiosk window for flush, even alignment.
• Thermostat-Controlled Fan — Pulls air into the enclosure to maintain proper airflow for the display and electronics.
• ADA-Compliant Profile — The low-profile design extends about 1" from the wall to support ADA requirements.
• Pre-Assembled — Ships assembled to simplify and speed up on-site installation.
• Aesthetic Flexibility — Supports glass or acrylic faces, multiple colors, and vinyl wraps to match the environment or brand.

Typical Applications

• Hotels and hospitality lobbies
• Retail stores and shopping centers
• Entertainment and event venues
• Corporate lobbies and reception areas
• Interactive wayfinding in transportation hubs
• Education and healthcare facilities

Technical Specifications

Frequently Asked Questions

What size display does the KIL755 hold?
It is designed for 55" displays up to 3.10" (78 mm) thick, mounted in landscape orientation.

Can it be installed in a standard wall?
Yes. The enclosure fits within standard wood-stud wall construction and can be integrated into new builds or retrofit walls.

What VESA patterns and weight are supported?
It supports VESA 200 x 200 up to 400 x 600 mm and a maximum display load of 75 lb.

How thin is the finished installation?
Because the display recesses into the wall, the finished profile is less than 1" thin, extending about 1" from the wall surface for an ADA-compliant look.

How is the display serviced after installation?
Extending mount arms and a removable front cover provide access to the display and internal components for maintenance.

How are the electronics kept cool?
A thermostat-controlled fan pulls air into the enclosure to maintain proper airflow for the display and any media players.

Does it ship assembled and what warranty applies?
The KIL755 ships pre-assembled and is covered by a 5-year warranty on metal components and a 1-year warranty on electronic components.
