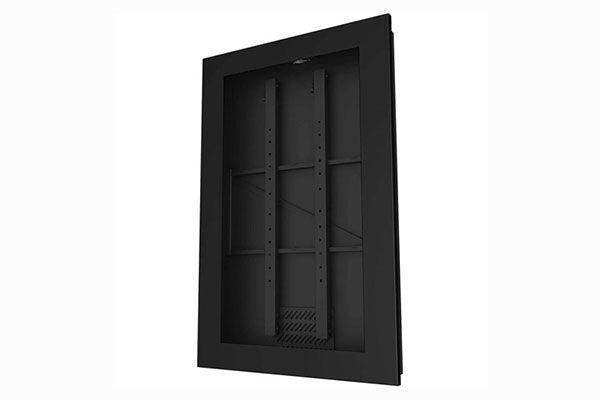

Peerless-AV KIP748 – 48" Portrait In-Wall Kiosk for Digital Signage

Product Overview

The Peerless-AV KIP748 is a 48" portrait in-wall kiosk designed for permanent large-format digital signage installations in high-traffic commercial environments. With an industry-leading 1" (25 mm) front profile that meets ADA requirements, this in-wall portrait kiosk integrates directly into standard wood stud walls for a flush, architectural appearance. The KIP748 supports VESA 200 x 200 through 400 x 600 mm mounting patterns and accepts displays up to 3.10" (78 mm) thick, accommodating the full range of commercial digital signage panels used in retail, hospitality, healthcare, and government facilities.

Product Description

The KIP748 delivers a minimalistic wall-flush look that is not achievable with a conventional surface-mount kiosk. Because the enclosure installs within the wall cavity, only 1" of the kiosk extends beyond the finished wall surface—a dimension that satisfies ADA protrusion requirements for publicly accessible spaces. This makes the KIP748 an appropriate specification choice wherever ADA compliance governs display installations, including public corridors, lobbies, and healthcare facilities.

Eight-way tool-less adjustment on the internal display mount bracket allows the installer to precisely position the display within the kiosk window for flush alignment with the front cover without additional shimming or field modifications. The pull-out mount mechanism gives technicians full access to the rear of the display, connected media players, and wiring for scheduled maintenance or content player swaps without removing the kiosk from the wall. Thermostat-controlled circulation fans actively manage airflow and thermal performance inside the kiosk, extending display life in enclosed wall environments.

The KIP748 ships pre-assembled to accelerate installation in new construction and retrofit projects alike. The front cover accepts a wide range of aesthetic finishing options—glass, acrylic, multiple paint colors, and vinyl wraps—enabling system designers to match the kiosk to corporate branding or ambient architectural finishes. Custom sizes are available from Peerless-AV for non-standard display dimensions.

Key Features

• 1" (25 mm) ADA-Compliant Front Profile — Ultra-low wall protrusion satisfies ADA accessibility requirements for permanently installed displays in public spaces.
• Eight-Way Tool-Less Display Adjustment — Allows precise positioning of the display within the kiosk window for flush alignment without additional tools or shims.
• Pull-Out Mount for Easy Maintenance — The entire display mount assembly extends outward for full rear-access to the display and internal components, simplifying scheduled maintenance.
• Thermostat-Controlled Circulation Fans — Active airflow management maintains safe operating temperatures inside the enclosed kiosk, prolonging display service life.
• Broad VESA Compatibility — Accepts VESA 200 x 200 through 400 x 600 mm mounting patterns, covering the majority of commercial 48" portrait displays.
• Accepts Displays Up to 3.10" Thick — Accommodates commercial displays with integrated media player sleds or rear-mounted devices within the standard wall cavity.
• New Construction and Retrofit Compatible — Installs in standard wood stud walls for both new build and retrofit projects without structural modifications.
• Aesthetic Customization — Front cover accepts glass, acrylic, multiple colors, and vinyl wraps to match brand guidelines or architectural specifications.
• Pre-Assembled — Ships ready for installation to reduce on-site assembly time and labor costs.
• Custom Sizes Available — Peerless-AV offers custom enclosure dimensions for displays outside the standard KIP748 size range.
• 5-Year Limited Warranty — Covered by Peerless-AV's standard commercial five-year warranty.

Typical Applications

• Retail digital signage and wayfinding kiosks
• Hotel and hospitality lobby information displays
• Healthcare facility patient information and wayfinding
• Government building public information displays
• Corporate lobby and reception area digital signage
• Auditorium and conference center event information displays

Technical Specifications

Frequently Asked Questions

Q: Does the KIP748 require a dedicated electrical circuit for the fans?

A: The thermostat-controlled fans draw minimal power and typically share the display circuit. Confirm electrical load requirements with your electrical contractor based on the specific display and media player combination being installed.

Q: Can the KIP748 be installed in a metal stud wall?

A: The KIP748 is designed for standard wood stud wall construction. Metal stud installations may require additional blocking or framing to achieve proper support. Consult Creation Networks or your AV integrator before specifying for metal stud applications.

Q: Is the front cover included, and can it be replaced?

A: A front cover is included with the kiosk. Peerless-AV supports multiple aesthetic options including glass, acrylic, painted, and vinyl-wrapped covers. Contact your dealer for custom cover options.

Q: What access is available for media player installation or replacement?

A: The pull-out mount mechanism allows the entire display assembly to be extended outward from the wall, providing full rear access to the display, media players, and wiring without wall modification.

Q: Is the KIP748 compatible with touch-enabled displays?

A: The kiosk is compatible with commercial touch displays provided they fall within the supported size range and thickness specifications. Confirm touch cable routing requirements with your integrator during design.

Q: What is the lead time for custom-size kiosks?

A: Custom sizing lead times vary. Contact Creation Networks for a quote and estimated production schedule for non-standard display sizes.
