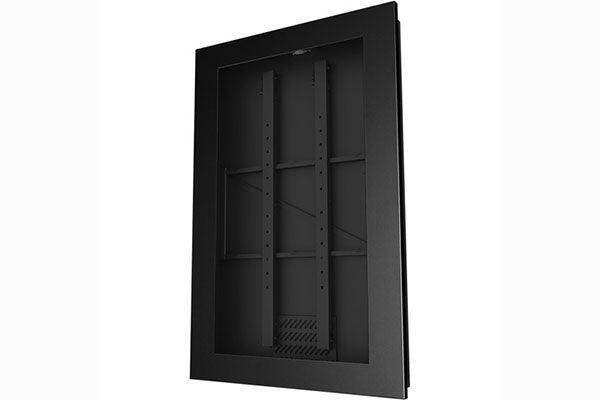

Peerless-AV KIP747 – 47" Portrait In-Wall Kiosk for Digital Signage

Product Overview

The Peerless-AV KIP747 is a 47" portrait in-wall kiosk engineered for flush, ADA-compliant large-format digital signage installations in commercial interiors. Extending only 1" (25 mm) beyond the finished wall surface, this portrait in-wall digital signage kiosk fits within standard wood stud wall construction and accepts displays up to 47" diagonal in VESA configurations from 200 x 200 mm to 600 x 400 mm. The KIP747 is the correct specification choice for retail, corporate, hospitality, government, and healthcare environments where display footprint, accessibility compliance, and professional appearance are primary criteria.

Product Description

Where a surface-mount kiosk would protrude into a corridor or lobby and create ADA compliance concerns, the KIP747 installs within the wall itself. The 1" front profile is an ADA-certified protrusion dimension, making the KIP747 appropriate for public-access spaces including healthcare corridors, government buildings, and educational facilities. The black powder-coat finish presents a clean, architectural appearance that complements both modern and traditional interior design.

The KIP747 accommodates digital signage displays in portrait orientation with a VESA range from 200 x 200 to 600 x 400 mm, which covers the majority of commercial 47" panels currently specified in digital signage projects. The enclosure dimensions—Height 49.3", Width 31.5", Depth 5.1"—fit within a standard wall stud bay. RoHS environmental certification confirms compliance with hazardous substance restrictions for products specified in European and government-procurement projects.

The KIP747 ships pre-assembled with a pull-out mount for rear access to the display and internal components. Thermostat-controlled circulation fans manage thermal performance inside the closed kiosk enclosure. Front cover aesthetic options including glass, acrylic, multiple paint colors, and vinyl wraps allow system designers to align the kiosk appearance with brand guidelines or existing architectural finishes.

Key Features

• 1" ADA-Compliant Front Profile — Meets ADA protrusion requirements for permanently installed displays in publicly accessible spaces.
• Standard Wood Stud Wall Compatibility — Installs within existing standard stud bay dimensions for new construction and retrofit projects.
• VESA 200 x 200 to 600 x 400 mm — Supports the full range of common commercial 47" portrait display mounting patterns.
• Pull-Out Display Mount — Extends outward for full rear access to display connections, media players, and wiring without wall modification.
• Thermostat-Controlled Fans — Active thermal management prevents heat buildup inside the wall cavity and protects display components.
• Aesthetic Finishing Options — Front cover accepts glass, acrylic, paint, and vinyl wraps to meet architectural or brand specifications.
• Pre-Assembled — Ships ready for installation to minimize field labor.
• RoHS Certified — Meets Restriction of Hazardous Substances requirements for government and EU-compliant procurement.
• 5-Year Limited Warranty — Backed by Peerless-AV's standard commercial five-year warranty.

Typical Applications

• Retail wayfinding and promotional digital signage
• Corporate lobby and corridor information displays
• Hospitality property directories and guest information kiosks
• Government building public information displays
• Healthcare facility wayfinding and patient information
• Auditorium and conference center event information boards

Technical Specifications

Frequently Asked Questions

Q: How does the KIP747 achieve ADA compliance?

A: The 1" (25 mm) wall protrusion meets the ADA Standards for Accessible Design's requirement that wall-mounted objects projecting more than 4" into a circulation path have their leading edge at or below 27" from the floor or at or above 80" from the floor. At 1" protrusion, the KIP747 satisfies this requirement across all standard mounting heights.

Q: Can the KIP747 be retrofitted into an existing finished wall?

A: Yes. The KIP747 is designed for both new construction and retrofit installations in standard wood stud walls. A cutout is required in the finished wall surface, and blocking may be needed between studs depending on the specific wall construction.

Q: What media player can be installed inside the KIP747?

A: The KIP747 accommodates media players installed behind the display within the kiosk enclosure. Space available for media player mounting depends on the display thickness. Confirm clearances with your integrator during system design.

Q: Does Peerless-AV offer custom sizes for the KIP series?

A: Yes. Custom KIP kiosk sizes are available for displays outside the standard range. Contact Creation Networks to request a custom size quotation.

Q: What is the warranty on the KIP747?

A: The KIP747 carries a 5-year limited warranty from Peerless-AV covering parts and workmanship defects under normal commercial use conditions.
