Peerless-AV KIL647 – 47" Landscape Wall Kiosk Enclosure

Product Overview

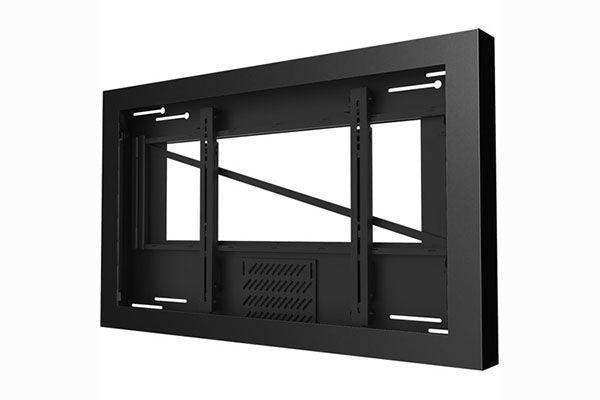

The Peerless-AV KIL647 is a 47" landscape wall kiosk enclosure that turns a commercial display into a secure, professional digital signage point. This on-wall kiosk enclosure mounts most 47" displays up to 2" (50mm) thick and keeps a slim, ADA-compliant 3.97" profile, making it well suited to advertising, interactive wayfinding, and guest-facing signage in high-traffic venues. It ships pre-assembled to simplify integration and includes thermostat-controlled cooling to protect the display during continuous operation.

Product Description

The KIL647 gives integrators a finished, tamper-resistant way to deploy a 47" display on a wall without exposing the panel, media player, or cabling. Despite the slim 3.97" (101mm) profile, the enclosure has room to house a media player, circulation fans, and other electrical equipment behind the display, creating a complete signage solution in a single fixture. A hinged locking frame and security locks restrict access to the interior, which matters in unattended public installations such as hotels, casinos, and theaters. For installation and service, a pull-out mount and eight-way tool-less adjustment let the technician position the display flush within the kiosk window and reach internal components without removing the enclosure. Thermostat-controlled circulation fans maintain airflow to keep the display within its operating range. The enclosure carries displays up to 75 lb (34kg) and supports VESA patterns from 200 x 200 up to 600 x 400mm. For a portrait installation in the same size class, compare the KIP647 portrait wall kiosk, the larger KIL648 landscape wall kiosk, or browse the full Peerless-AV collection.

Key Features

• ADA-Compliant Slim Profile — The enclosure extends just 3.97" (101mm) from the wall, meeting Americans with Disabilities Act clearance requirements for public spaces.
• Hinged Locking Frame and Security Locks — The frame hinges open for installation and service, while integrated locks prevent unintended access to the display and internal electronics.
• Pull-Out Mount — The display mount pulls out from the enclosure for easier installation, adjustment, and maintenance.
• 8-Way Tool-Less Adjustment — Position the display flush within the kiosk window quickly and without tools for a clean, professional alignment.
• Thermostat-Controlled Cooling — Circulation fans activate based on internal temperature to maintain proper airflow within the kiosk.
• 75 lb Load Capacity — Supports 47" displays up to 2" (50mm) thick weighing up to 75 lb (34kg).
• Wide VESA Compatibility — Mounting patterns from 200 x 200 up to 600 x 400mm fit the majority of 47" commercial displays.
• Custom Finishing Ready — Powder-coat construction in Gloss Black or Silver, with support for glass, acrylic, vinyl wraps, and custom colors.
• Pre-Assembled — Ships assembled to reduce on-site labor and speed installation.

Typical Applications

• Hospitality lobbies and guest information
• Casino and entertainment venue signage
• Movie theater concourses and box office displays
• Retail in-store advertising and promotions
• Corporate and commercial meeting space directories
• Transportation hubs and public wayfinding
• Education and healthcare facility signage

Technical Specifications

Frequently Asked Questions

What display does the KIL647 support?
It is designed for 47" commercial displays up to 2" (50mm) thick, weighing up to 75 lb (34kg), with VESA patterns from 200 x 200 up to 600 x 400mm.

Is the KIL647 secure for unattended public spaces?
Yes. A hinged locking frame and security locks restrict access to the display and internal electronics, which is important for installations in hotels, casinos, and theaters.

How thick is the kiosk on the wall?
The enclosure extends 3.97" (101mm) from the wall, a slim profile that meets ADA clearance requirements.

Can it house a media player and cabling?
Yes. Even with the slim profile, there is room behind the display for a media player, fans, and other electrical equipment to create a complete signage solution.

How is the display cooled?
Thermostat-controlled circulation fans activate based on internal temperature to maintain proper airflow within the enclosure.

Is a portrait version available?
Yes. The KIP647 is the portrait-orientation equivalent in the same Peerless-AV wall kiosk line.

What warranty applies?
Peerless-AV provides a 5-year warranty on metal components and a 1-year warranty on electronic components.
