Peerless-AV KIP646-S – 46" Portrait Wall Kiosk Enclosure

Product Overview

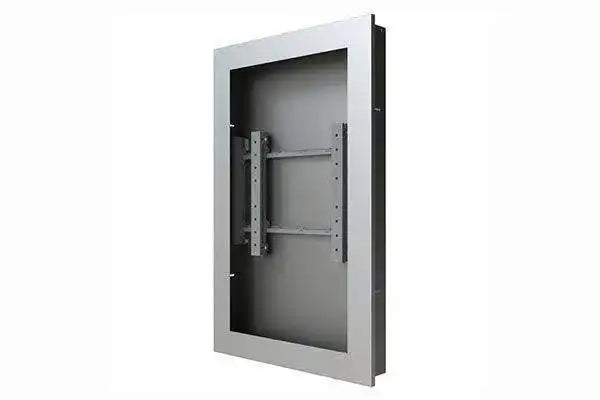

The Peerless-AV KIP646-S is a portrait wall kiosk enclosure built to house 46" commercial displays up to 2" (50mm) thick in a slim, ADA-compliant profile. Part of Peerless-AV's Wall Kiosk Enclosure line, it converts a flat wall into a secure, finished media point for advertising, interactive wayfinding, and brand messaging in portrait orientation. The silver powder-coat enclosure extends just 3.97" (101mm) from the wall, making it a practical wall mount kiosk for corridors, lobbies, and other high-traffic commercial spaces.

Product Description

The KIP646-S gives integrators a complete, pre-assembled portrait wall kiosk enclosure that simplifies the deployment of a 46" digital signage display. The enclosure ships ready to mount, with an integrated pull-out display mount that lets a single installer position and service the screen without removing the full assembly. Eight-way tool-less adjustment allows the display to be aligned flush within the kiosk window for a clean, finished face. The hinged, locking top frame provides fast access to the display, media player, and other internal electronics while keeping the enclosure secure against unintended access.

Thermostat-controlled circulation fans manage airflow inside the enclosure to support continuous commercial operation, and the slim 3.97" depth keeps the installation within ADA reach-range requirements for public spaces. The enclosure supports VESA mounting patterns from 200 x 200mm up to 600 x 400mm and accommodates a wide range of aesthetic finishes, including glass or acrylic faces, custom colors, and vinyl wraps, so the kiosk can match the surrounding environment or reinforce a brand strategy. For comparable landscape models and other mounting options, browse the Peerless-AV collection at Creation Networks.

Key Features

• 46" Portrait Fit — Houses 46" commercial displays up to 2" (50mm) thick in portrait orientation for digital signage and wayfinding.
• Slim ADA-Compliant Profile — Extends only 3.97" (101mm) from the wall to meet Americans with Disabilities Act reach-range requirements in public areas.
• Integrated Pull-Out Mount — Lets a single technician slide the display out for fast installation, adjustment, and maintenance.
• Eight-Way Tool-Less Adjustment — Positions the display flush within the kiosk window for a finished face without tools.
• Hinged Locking Frame — The frame hinges open with security locks to protect internal components while allowing service access.
• Thermostat-Controlled Fans — Built-in circulation fans maintain proper airflow for reliable continuous operation.
• Wide VESA Compatibility — Supports mounting patterns from 200 x 200mm up to 600 x 400mm for broad display compatibility.
• Customizable Finish — Accepts glass/acrylic faces, custom colors, and vinyl wraps to match the deployment environment.

Typical Applications

• Retail storefronts and in-store digital signage
• Hospitality lobbies and guest wayfinding
• Corporate and commercial meeting spaces
• Transportation hubs and passenger information displays
• Healthcare reception and patient communication areas
• Entertainment venues, casinos, and theaters

Technical Specifications

Frequently Asked Questions

What size display does the KIP646-S support?
It is engineered for 46" displays up to 2" (50mm) thick mounted in portrait orientation.

Is the enclosure ADA compliant?
Yes. The low-profile design extends only 3.97" (101mm) from the wall, meeting Americans with Disabilities Act reach-range requirements for public installations.

What VESA patterns are compatible?
The internal mount supports VESA patterns from 200 x 200mm up to 600 x 400mm, covering most commercial displays in this size class.

How is the display serviced after installation?
An integrated pull-out mount and hinged, locking frame let a technician access the display, media player, and electronics without removing the enclosure from the wall.

Does it manage heat for continuous operation?
Yes. Thermostat-controlled circulation fans maintain airflow inside the enclosure to support 24/7 commercial digital signage use.

Can the kiosk be customized to match our space?
The enclosure supports glass/acrylic faces, custom colors, and vinyl wraps, and ships in a silver powder-coat finish on this -S model.

What is the warranty?
Peerless-AV covers the metal components for 5 years and electronic components for 1 year.
