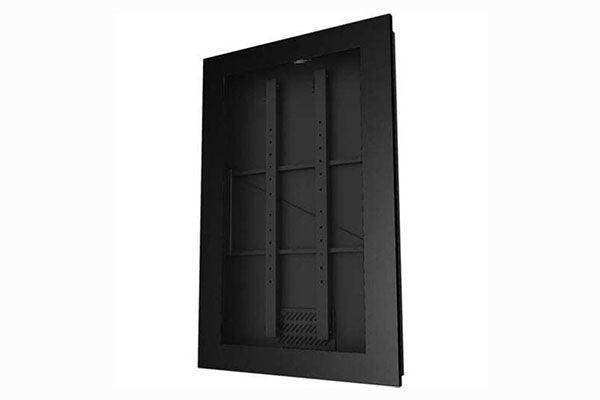

Peerless-AV KIP743 – 43" Portrait In-Wall Kiosk Enclosure

Product Overview

The Peerless-AV KIP743 is a 43" portrait in-wall kiosk enclosure built to recess a commercial display flush into a standard wood stud wall. With a finished profile that extends just 1" (25mm) from the wall surface, this in-wall digital signage kiosk delivers an ADA-compliant installation for hospitality, retail, and wayfinding deployments. It accommodates 43" displays up to 3.10" (78mm) thick and ships pre-assembled to shorten integration time on site.

Product Description

Engineered for permanent digital signage installations, the KIP743 sits inside the wall cavity so the display reads as an integrated architectural element rather than a surface-mounted screen. The enclosure carries displays up to 75 lb (34kg) and supports VESA mounting patterns from 200 x 200 up to 400 x 600mm, covering most 43" commercial panels. A removable front cover and pull-out mount give integrators and facilities staff direct access to the display, media player, and cabling for installation and maintenance without dismantling the wall. A thermostat-controlled circulation fan manages airflow to keep the display and internal electronics within their operating range during continuous use. The enclosure also supports a range of aesthetic finishing options including glass or acrylic faces, custom colors, and vinyl wraps to match the surrounding environment or reinforce a brand program. For on-wall portrait alternatives in the same display size class, compare the KIP646 portrait wall kiosk or browse the full Peerless-AV collection.

Key Features

• True In-Wall Design — The enclosure recesses into a standard wood stud wall and extends only 1" (25mm) from the surface, meeting Americans with Disabilities Act (ADA) clearance requirements for public spaces.
• 8-Way Micro Adjustment — Independent vertical, horizontal, and depth adjustment lets the integrator position the display flush within the kiosk window for a clean, finished appearance.
• Removable Front Cover and Pull-Out Mount — Front access and an extending mount arm simplify display installation and ongoing maintenance of internal components.
• Thermostat-Controlled Cooling — An integrated fan activates based on internal temperature to maintain proper airflow for the display and any media players housed inside.
• 75 lb Load Capacity — Supports 43" displays up to 3.10" (78mm) thick weighing up to 75 lb (34kg), accommodating thicker commercial panels than typical slim kiosks.
• Wide VESA Compatibility — Mounting patterns from 200 x 200 up to 400 x 600mm fit the majority of 43" commercial-grade displays.
• Custom Finishing Ready — Powder-coat construction in Gloss Black or Silver, with support for glass, acrylic, vinyl wraps, and custom colors to match the install environment.
• Pre-Assembled — Ships assembled to reduce on-site labor and speed deployment.

Typical Applications

• Hospitality lobbies and guest wayfinding
• Retail in-store signage and promotions
• Entertainment and movie theater concourses
• Corporate and commercial meeting space directories
• Education campus information displays
• Healthcare facility check-in and wayfinding
• Transportation hubs and public information points

Technical Specifications

Frequently Asked Questions

What size and type of display does the KIP743 support?
It is designed for 43" commercial displays up to 3.10" (78mm) thick, weighing up to 75 lb (34kg), with VESA mounting patterns from 200 x 200 up to 400 x 600mm.

Is the KIP743 a true in-wall enclosure?
Yes. It recesses into a standard wood stud wall and the finished display extends only 1" (25mm) from the wall surface, which meets ADA clearance requirements.

How is the display cooled inside the enclosure?
A thermostat-controlled circulation fan is included and activates based on internal temperature to maintain airflow for the display and any internal media player.

Can I service the display after installation?
Yes. The removable front cover and pull-out mount provide front access to the display and internal components for maintenance without removing the enclosure from the wall.

Does it ship assembled?
The enclosure ships pre-assembled to reduce on-site labor and speed up the installation.

What orientation is the KIP743?
It is a portrait-orientation enclosure. Landscape models in the same Peerless-AV in-wall kiosk line are also available.

What warranty applies?
Peerless-AV provides a 5-year warranty on metal components and a 1-year warranty on electronic components.
