Peerless-AV KIP742-S – 42" Portrait In-Wall Kiosk
Product Overview

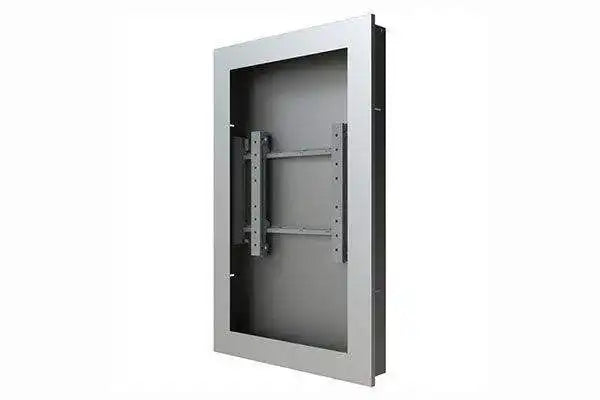

The Peerless-AV KIP742-S is a 42" portrait in-wall kiosk enclosure that recesses a digital signage display into a standard wood-stud wall for a flush, low-profile finish. Finished in silver powder coat, it accepts 42" displays up to 3.10" (78 mm) thick and supports loads to 75 lb (34 kg). With a thermostat-controlled fan and 8-way micro adjustment, it is designed for clean, durable digital signage in indoor commercial spaces.
Product Description
This in-wall kiosk enclosure recesses the display so it extends only about 1" (25 mm) from the wall, meeting Americans with Disabilities Act (ADA) projection guidance and giving large-format digital signage a built-in, architectural appearance. A thermostat-controlled circulation fan pulls fresh air into the enclosure for thermal management of the panel and any internal media player. The enclosure ships pre-assembled with extending mount arms and a removable front cover, so integrators can install the display and access internal components for maintenance without dismantling the unit. Eight-way micro adjustment provides vertical, horizontal, and depth positioning to align the display flush within the kiosk window. The KIP742-S accepts VESA mounting patterns from 200 x 200 up to 400 x 600 mm and is suited to hospitality, retail, corporate, and entertainment venues. See the full Peerless-AV collection at Creation Networks for related kiosks and enclosures.
Key Features
- Low-Profile In-Wall Design — Extends only about 1" (25 mm) from the wall, meeting ADA projection guidance for a flush appearance.
- Thermostat-Controlled Fan — A powerful circulation fan pulls in fresh air to manage heat from the display and internal components.
- 8-Way Micro Adjustment — Vertical, horizontal, and depth adjustment aligns the display flush within the kiosk window.
- Removable Front Cover and Pull-Out Mount — Extending arms and a removable cover ease installation and ongoing maintenance.
- Pre-Assembled Enclosure — Ships assembled to simplify on-site installation of the complete signage solution.
- 75 lb Load Capacity — Supports 42" displays up to 3.10" (78 mm) thick and up to 75 lb (34 kg).
- Silver Powder Coat Finish — Durable powder-coat finish protects the enclosure and suits client-facing environments.
Typical Applications
- Hospitality lobbies and guest areas
- Retail wayfinding and promotional signage
- Corporate lobbies and reception areas
- Entertainment and transportation venues
- Healthcare and education common areas
Technical Specifications
| Model | KIP742-S |
| Type | Portrait In-Wall Kiosk Enclosure |
| Display Size | 42", up to 3.10" (78 mm) thick |
| Load Capacity | 75 lb (34 kg) |
| VESA / Mounting Pattern | 200 x 200 up to 400 x 600 mm |
| Orientation | Portrait |
| Dimensions (W x H x D) | 28.91" x 45.41" x 5.15" (734 x 1153 x 131 mm) |
| Product Weight | 79 lb (35 kg) |
| Wall Projection | Approx. 1" (25 mm), ADA compliant |
| Thermal Management | Thermostat-controlled circulation fan |
| Finish / Color | Powder coat, Silver |
| Indoor/Outdoor | Indoor |
| Assembly | Pre-assembled |
| Warranty | 5 years on metal components, 1 year on electronic components |
Frequently Asked Questions
What display does the KIP742-S fit?
It fits 42" displays up to 3.10" (78 mm) thick, mounted in portrait orientation.
How far does the kiosk project from the wall?
The enclosure extends only about 1" (25 mm) from the wall, meeting ADA projection guidance.
How is heat managed inside the enclosure?
A thermostat-controlled circulation fan pulls fresh air into the kiosk to manage heat from the display and internal components.
How do I service the display after installation?
The removable front cover and pull-out mount arms provide access to the display and internal components without removing the enclosure.
What VESA patterns does it support?
The KIP742-S accepts VESA patterns from 200 x 200 up to 400 x 600 mm.
Is it suitable for outdoor use?
No. This is an indoor in-wall kiosk enclosure.
What warranty applies?
Peerless-AV provides 5 years on metal components and 1 year on electronic components.
