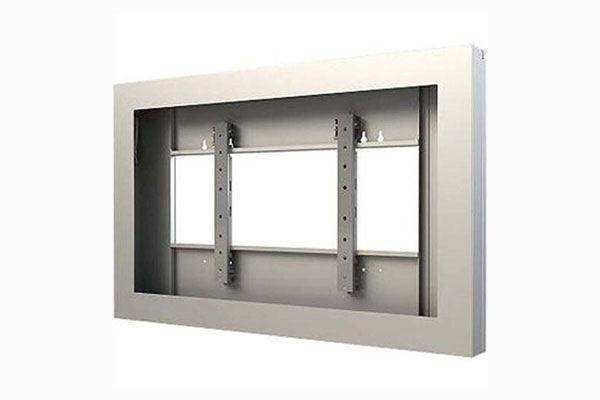

Peerless-AV KIL642-S – 42" Landscape Wall Kiosk Enclosure

Product Overview

The Peerless-AV KIL642-S is a landscape wall kiosk enclosure built to house 42" ultra-thin displays for digital signage, interactive wayfinding, and brand messaging. With a slim, ADA-compliant 3.97" profile, it presents a clean on-wall digital showcase while leaving room inside for a media player, fan, and other electronics. This commercial-grade kiosk enclosure ships pre-assembled with a pull-out display mount and a hinged locking frame, giving integrators a secure, serviceable platform for indoor signage deployments.

Product Description

The KIL642-S is designed for high-traffic public spaces where a digital signage display needs protection, thermal management, and a finished appearance. Despite extending only 3.97" (101mm) from the wall to meet Americans with Disabilities Act clearance requirements, the enclosure accommodates most ultra-thin 42" displays up to 2" (50mm) thick along with the media players and electronics that drive interactive content. A thermostat-controlled circulation fan maintains proper airflow inside the housing so the display and integrated components stay within their operating range during continuous use.

Installation and service are straightforward: the pull-out mount lets a technician position the display for flush alignment using eight-way tool-less adjustment, and the hinged locking frame swings open for access to internal components while integrated security locks deter tampering and theft. The enclosure supports VESA patterns from 200 x 200 up to 600 x 400mm and a wide range of aesthetic options including glass or acrylic fronts, custom colors, and vinyl wraps to match a venue or promote a brand. This unit is finished in silver. For comparable signage and mounting hardware, browse the full Peerless-AV collection at Creation Networks.

Key Features

• ADA-Compliant Profile — The low-profile design extends only 3.97" (101mm) from the wall to meet Americans with Disabilities Act clearance requirements.
• Fits 42" Ultra-Thin Displays — Houses landscape 42" displays up to 2" (50mm) thick with room for media players and electronics.
• Thermostat-Controlled Fan — An integrated circulation fan maintains proper airflow to keep the display and internal components cool.
• Pull-Out Display Mount — The pull-out mount with eight-way tool-less adjustment lets one technician position the screen for flush window alignment.
• Hinged Locking Frame — The frame hinges open for easy installation and maintenance access and locks closed for security.
• Integrated Security Locks — Locks prevent unintended access to the inside of the kiosk enclosure.
• VESA 200 x 200 to 600 x 400mm — A wide mounting-pattern range supports most commercial signage displays up to 75 lb (34 kg).
• Customizable Aesthetics — Supports glass or acrylic fronts, custom colors, and full vinyl wraps to match the environment or brand.
• Pre-Assembled — The kiosk ships pre-assembled to simplify installation of the complete solution.

Typical Applications

• Retail stores and shopping centers
• Hospitality lobbies and hotels
• Transportation hubs and wayfinding points
• Corporate and commercial meeting spaces
• Education and healthcare facilities
• Entertainment venues and casinos

Technical Specifications

Frequently Asked Questions

What display does the KIL642-S fit?
It is built for 42" landscape ultra-thin displays up to 2" (50mm) thick, weighing up to 75 lb, using VESA patterns from 200 x 200 up to 600 x 400mm.

Is the enclosure ADA compliant?
Yes. The low-profile design extends only 3.97" (101mm) from the wall to meet Americans with Disabilities Act clearance requirements.

How is the display kept cool?
A thermostat-controlled circulation fan maintains proper airflow inside the enclosure for the display and any integrated electronics.

Can it house a media player and other electronics?
Yes. The enclosure provides interior space for media players, fans, and other equipment needed to drive interactive signage content.

How are the display and components serviced?
The pull-out mount and hinged locking frame open for installation and maintenance access, with eight-way tool-less adjustment for flush window alignment.

Can the kiosk be customized to match our brand?
It supports glass or acrylic fronts, custom colors, and full vinyl wrap graphics; this model ships in a silver finish.

What warranty is included?
Peerless-AV provides 5 years on metal components and 1 year on electronic components.
