Peerless-AV KIL642 – 42" Landscape Wall Kiosk Enclosure, Black

Product Overview

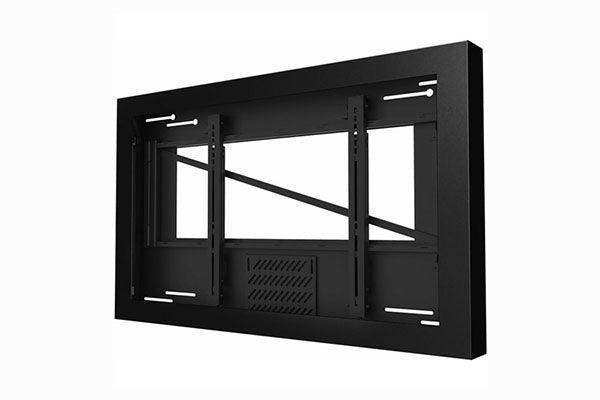

The Peerless-AV KIL642 is a landscape wall kiosk enclosure that turns a 42" commercial display into a finished digital signage kiosk for advertising, wayfinding, and interactive content. This on-wall kiosk enclosure houses the display along with media players, fans, and other electronics behind a slim, ADA-compliant 3.97" profile in a gloss black powder-coat finish. It is a clean, secure digital signage solution for integrators deploying 42" displays in high-traffic commercial environments.

Product Description

The KIL642 wall kiosk enclosure accommodates most 42" displays up to 2" (50 mm) thick and supports VESA mounting patterns from 200 x 200 up to 600 x 400 mm, with a maximum display load of 75 lb. Eight-way tool-less adjustment lets the installer position the display precisely within the kiosk window for a flush, professional alignment, while the integrated pull-out mount makes initial installation, service, and display swaps straightforward. There is room inside the enclosure for media players and other signage electronics.

Thermostat-controlled circulation fans maintain proper airflow within the enclosure to protect the electronics, and a hinged locking frame combined with security locks prevents unauthorized access to the interior. The 3.97" depth keeps the kiosk ADA compliant on the wall, and the enclosure ships pre-assembled to shorten on-site installation time. A silver finish is also available; for related portrait and in-wall models, browse the full Peerless-AV collection at Creation Networks.

Key Features

• 42" Landscape Enclosure — Houses most 42" commercial displays up to 2" (50 mm) thick in landscape orientation.
• ADA-Compliant Profile — Extends just 3.97" (101 mm) from the wall to meet ADA installation requirements.
• Eight-Way Tool-less Adjustment — Positions the display within the kiosk window for flush alignment without tools.
• Thermostat-Controlled Fans — Circulation fans maintain proper airflow to protect the display and internal electronics.
• Hinged Locking Frame and Security Locks — Provide secure access control and prevent unintended entry to the enclosure interior.
• Pull-Out Mount — Allows easy installation, adjustment, and maintenance of the display.
• Pre-Assembled — Ships assembled to simplify and speed up on-site installation.
• Wide VESA Range — Supports VESA 200 x 200 up to 600 x 400 mm with a 75 lb display capacity.

Typical Applications

• Retail stores and shopping centers
• Hotels, casinos, and hospitality lobbies
• Movie theaters and entertainment venues
• Corporate lobbies and reception areas
• Interactive wayfinding in transportation hubs
• Education and healthcare facilities

Technical Specifications

Frequently Asked Questions

What size display does the KIL642 hold?
It accommodates most 42" displays up to 2" (50 mm) thick, mounted in landscape orientation.

What VESA patterns and weight are supported?
The enclosure supports VESA 200 x 200 up to 600 x 400 mm and a maximum display load of 75 lb.

Is the kiosk ADA compliant?
Yes. With a 3.97" profile, the enclosure meets ADA requirements for on-wall installations.

How is the display aligned in the window?
Eight-way tool-less adjustment lets the installer position the display for a flush, even fit within the kiosk window.

How are the internal electronics kept cool?
Thermostat-controlled circulation fans maintain proper airflow inside the enclosure to protect the display and any media players.

How is the enclosure secured?
A hinged locking frame and security locks prevent unintended access to the interior while still allowing service.

Does it ship assembled and what warranty applies?
The KIL642 ships pre-assembled and is covered by a 5-year warranty on metal components and a 1-year warranty on electronic components.
