Peerless-AV KIL742-S – 42" Landscape In-Wall Kiosk Enclosure
Product Overview

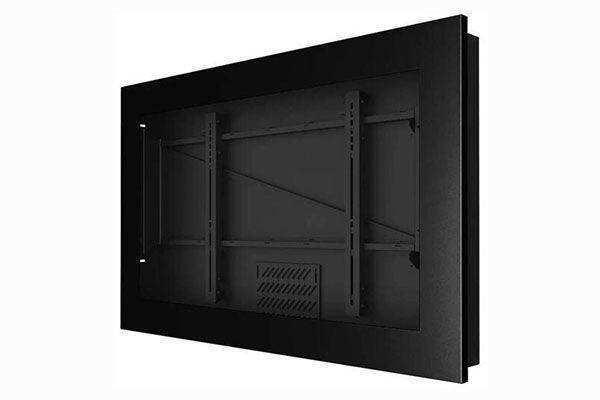

The Peerless-AV KIL742-S is a landscape in-wall kiosk enclosure that houses a 42" display for digital signage, advertising, and wayfinding. With an ADA-compliant 3.97" profile, this on-wall kiosk enclosure presents a clean, recessed look while holding the display, media player, and thermal components in a single secure housing. It gives integrators a vendor-engineered enclosure for commercial signage in public and high-traffic spaces.
Product Description
The KIL742-S ships pre-assembled to speed deployment of the complete signage solution. A hinged, locking frame opens for fast access to the display and internal components, while security locks deter unintended access in unattended installations. Eight-way tool-less adjustment lets installers align the display flush within the kiosk window, and a pull-out mount keeps the panel serviceable after install. Thermostat-controlled circulation fans maintain airflow to protect the display during continuous operation. The enclosure fits 42" displays up to 2" thick and accepts mounting patterns from 200 x 200mm up to 600 x 400mm. For a portrait layout or other sizes, see the comparable KIP743-S portrait in-wall kiosk or browse the Peerless-AV collection at Creation Networks.
Key Features
- Fits 42" Displays — Houses 42" commercial displays up to 2" (50mm) thick in landscape orientation.
- ADA-Compliant Low Profile — Extends 3.97" (101mm) from the wall to meet Americans with Disabilities Act clearance requirements.
- Eight-Way Tool-Less Adjustment — Aligns the display flush within the kiosk window quickly and without tools.
- Thermostat-Controlled Fans — Circulation fans maintain airflow to keep the display and electronics at safe operating temperatures.
- Hinged Locking Frame — The frame hinges open for installation and maintenance access while staying secure.
- Security Locks — Prevent unintended access to the enclosure interior in public deployments.
- Pull-Out Mount — Simplifies installation, adjustment, and servicing of the display.
- Pre-Assembled — Arrives assembled to streamline the full kiosk installation.
- Wide VESA Range — Supports mounting patterns from 200 x 200mm up to 600 x 400mm.
Typical Applications
- Retail and shopping environments
- Hospitality lobbies and casinos
- Entertainment venues and cinemas
- Transportation hubs and wayfinding
- Corporate and government lobbies
Technical Specifications
| Model | KIL742-S |
| Display Fit | 42" displays up to 2" (50mm) thick |
| Orientation | Landscape |
| Load Capacity | 75 lb (34 kg) |
| Mounting Pattern | 200 x 200mm up to 600 x 400mm |
| Wall Profile | 3.97" (101mm), ADA compliant |
| Dimensions (W x H x D) | 43.50" x 27.00" x 3.97" (1105 x 686 x 101mm) |
| Product Weight | 55.6 lb (25 kg) |
| Finish / Color | Powder coat, silver |
| Package Contents | Kiosk with display mounting hardware |
| Ship Weight | 85 lb (39 kg) |
| Warranty | 5 years on metal components, 1 year on electronic components |
Frequently Asked Questions
What display size does the KIL742-S fit?
It is designed for 42" displays up to 2" (50mm) thick in landscape orientation.
Is the enclosure ADA compliant?
Yes. Its 3.97" (101mm) profile meets Americans with Disabilities Act clearance requirements.
What VESA patterns are supported?
Mounting patterns range from 200 x 200mm up to 600 x 400mm.
How is the display cooled?
Thermostat-controlled circulation fans maintain airflow to keep the display and electronics at safe operating temperatures.
How do I service the display?
A hinged locking frame and pull-out mount provide access for installation and maintenance.
Is it secure for public use?
Security locks prevent unintended access to the enclosure interior.
What warranty applies?
Peerless-AV provides 5 years on metal components and 1 year on electronic components.
