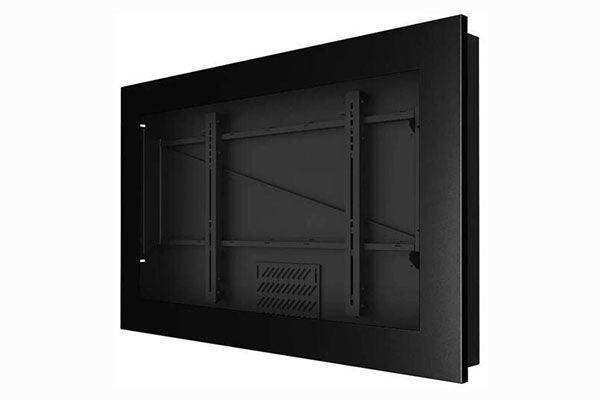

Peerless-AV KIL742 – 42" Landscape In-Wall Kiosk Black

Product Overview

The Peerless-AV KIL742 is a 42" landscape in-wall kiosk enclosure built for commercial digital signage deployments that demand a low-profile, architecturally integrated presentation. With a front depth under 1" from the finished wall surface, the KIL742 is suited for retail digital signage, corporate wayfinding, hospitality information displays, and transportation hubs where a conventional surface-mount kiosk would obstruct traffic flow or conflict with interior design requirements. The enclosure supports displays up to 75 lb with VESA patterns from 200x200 to 600x400, and its extending installation arms simplify rough-in into both new construction and retrofit wall cavities. An integrated fan provides active thermal management for 16/7 and 24/7 continuous operation schedules.

Product Description

The KIL742 delivers the same sub-1" front profile and integrated thermal management as its portrait-orientation sibling, but in a landscape configuration for widescreen content playback, multi-zone layouts, and horizontal wayfinding applications. Pre-assembled components reduce on-site labor during rough-in, and the adjustable width, depth, and height allow the installer to accommodate panels from different manufacturers without additional adapter hardware. The enclosure's extending arms allow a single technician to insert, position, and secure the unit within the wall opening before anchoring. Interior space accommodates a small-form-factor media player or single-board computer, keeping all cabling, signal distribution hardware, and playback electronics fully concealed within the wall cavity for a clean finished result. The gloss black finish coordinates with commercial display bezels, and the RoHS certification confirms compliance with hazardous materials regulations for projects that require it.

Key Features

• Sub-1" Front Profile — Near-flush wall presentation eliminates protrusion hazards and meets ADA reach-range requirements when mounted at compliant heights.
• Landscape Orientation — Optimized for widescreen 16:9 content, horizontal wayfinding layouts, and multi-zone digital signage templates.
• Extending Installation Arms — Adjustable arms simplify insertion into rough openings and accommodate varying wall stud depths.
• Integrated Cooling Fan — Active airflow maintains safe thermal conditions for the display and any co-located media player hardware during extended runtimes.
• Universal VESA Compatibility — Supports mounting patterns from 200x200 to 600x400 mm across most commercial 42" flat panel displays.
• Adjustable Width, Height, and Depth — Field-adjustable to accommodate panels from multiple manufacturers without additional hardware.
• Media Player Bay — Interior space fits a small-form-factor media player, keeping playback hardware concealed within the wall.
• 75 lb Maximum Load Capacity — Handles commercial-grade 42" displays including panels with integrated compute or power-supply units.
• New Construction and Retrofit Compatible — Installs in standard stud-framed walls for both greenfield and renovation projects.
• RoHS Compliant — Meets hazardous substances restrictions for installations with environmental compliance requirements.

Typical Applications

• Retail digital signage and promotional display walls
• Corporate lobby and corridor wayfinding displays
• Hospitality guest information and directory displays
• Government building public information kiosks
• Transportation hub and airport gate information displays
• Healthcare facility directory and patient navigation
• Education campus building directories and event boards

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the KIL742 and the KIP742?

A: Both are 42" in-wall kiosk enclosures with identical mounting and thermal specifications. The KIL742 is designed for landscape (horizontal) display orientation and the KIP742 is designed for portrait (vertical) display orientation. Choose based on your content format and installation design requirements.

Q: Can the KIL742 be installed in retrofit walls?

A: Yes. The extending arms allow the enclosure to be inserted and secured within an existing wall rough opening without requiring access from behind the wall, making it suitable for renovation and refresh projects.

Q: Does the KIL742 include an internal media player bay?

A: Yes. The enclosure includes interior space for a small-form-factor media player or single-board computer, concealing all active playback hardware and cabling within the wall cavity.

Q: What VESA patterns are supported?

A: The KIL742 supports VESA mounting patterns from 200x200 to 600x400 mm, which covers the standard hole patterns on most commercial 42" displays.

Q: How does the enclosure manage heat from the display?

A: An integrated fan draws ambient air through the enclosure to dissipate heat generated by the display panel and any co-located media player hardware, enabling safe 16/7 or 24/7 operation.

Q: What is the weight capacity?

A: The KIL742 supports displays up to 75 lb, accommodating the full range of commercial 42" flat panel displays including those with integrated power-supply or compute modules.

Q: Is this product ADA compliant?

A: The sub-1" front profile helps facilitate ADA-compliant wall installations when mounted at appropriate heights. Verify final ADA compliance with your project drawings and applicable code requirements.
