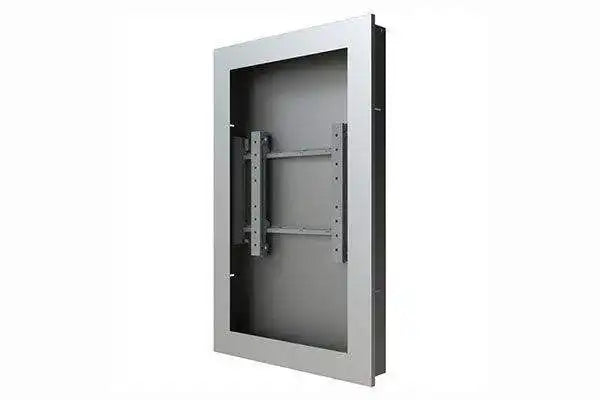

Peerless-AV KIP740-S – 40" Portrait In-Wall Kiosk Enclosure
Product Overview
The Peerless-AV KIP740-S is a portrait in-wall kiosk enclosure that recesses a 40" display into a standard wood-stud wall for digital signage. With a finished profile less than 1" thin, this in-wall kiosk enclosure produces a flush, architectural look while housing the display, media player, and thermal management inside the wall. It is built for integrators deploying commercial signage in hospitality, retail, and public-facing environments.
Product Description
The KIP740-S accommodates 40" displays up to 3.10" (78mm) thick while still fitting within standard wood-stud walls, giving designers latitude on display selection. Extending mount arms and a removable front cover make installation and ongoing maintenance straightforward, and an eight-way micro adjustment positions the display flush within the kiosk window during setup. A powerful thermostat-controlled fan draws air into the enclosure to keep the display at a safe operating temperature for continuous digital signage duty. It ships pre-assembled and supports VESA patterns from 200 x 200mm up to 400 x 600mm. The silver (-S) finish suits modern interiors; for a 43" portrait option see the comparable KIP743-S in-wall kiosk or browse the full Peerless-AV collection.
Key Features
- Fits 40" Displays — Recesses 40" panels up to 3.10" (78mm) thick while still fitting within standard wood-stud walls.
- Sub-1" Finished Profile — Extends about 1" (25mm) from the wall, meeting ADA clearance for a flush, architectural appearance.
- Eight-Way Micro Adjustment — Provides vertical, horizontal, and depth adjustment to align the display flush in the kiosk window.
- Removable Front Cover and Pull-Out Mount — Extending arms and a removable cover give easy access to the display and internal components.
- Thermostat-Controlled Fan — A powerful fan maintains airflow to protect the display during continuous operation.
- Pre-Assembled — Arrives assembled to simplify installation of the complete signage solution.
- Wide VESA Range — Compatible with mounting patterns from 200 x 200mm up to 400 x 600mm.
- 75 lb Load Capacity — Supports displays up to 75 lb (34 kg).
Typical Applications
- Hotel lobbies and hospitality spaces
- Retail and shopping environments
- Entertainment venues and cinemas
- Corporate and government lobbies
- Transportation and wayfinding
Technical Specifications
| Model | KIP740-S |
| Display Fit | 40" displays up to 3.10" (78mm) thick |
| Orientation | Portrait |
| Load Capacity | 75 lb (34 kg) |
| Mounting Pattern | 200 x 200mm up to 400 x 600mm |
| Wall Profile | Extends ~1" (25mm), ADA compliant |
| Dimensions (W x H x D) | 28.91" x 45.41" x 5.15" (734 x 1153 x 131mm) |
| Product Weight | 79 lb (35 kg) |
| Finish / Color | Powder coat, silver |
| Package Contents | Kiosk and display mounting hardware |
| Ship Weight | 90 lb (41 kg) |
| Warranty | 5 years on metal components, 1 year on electronic components |
Frequently Asked Questions
What display size does the KIP740-S fit?
It fits 40" displays up to 3.10" (78mm) thick in portrait orientation.
Does it fit standard walls?
Yes. It is designed to recess within standard wood-stud walls with a finished profile less than 1" thin.
What VESA patterns are supported?
Mounting patterns from 200 x 200mm up to 400 x 600mm are supported.
How is the display kept cool?
A thermostat-controlled fan draws air into the enclosure to maintain a safe operating temperature.
How do I access the display after installation?
Extending mount arms and a removable front cover provide access to the display and internal components.
Does it need assembly?
It ships pre-assembled to simplify installation.
What warranty is included?
Peerless-AV provides 5 years on metal components and 1 year on electronic components.
