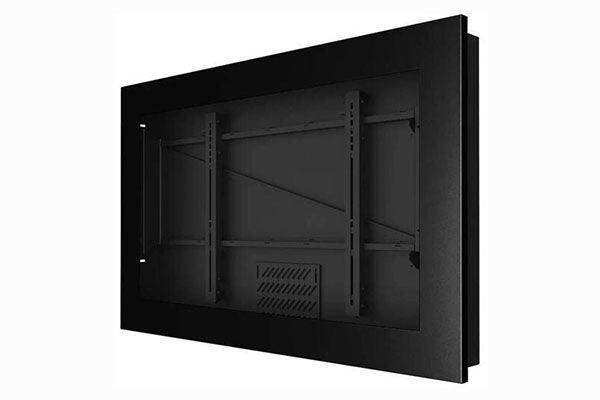

Peerless-AV KIL740 – 40" Landscape In-Wall Kiosk Black

Product Overview

The Peerless-AV KIL740 is a 40" landscape in-wall kiosk enclosure that combines a slim, nearly flush-mount profile with ADA-compliant depth for permanent commercial digital signage installations. Suited for retail, corporate, healthcare, and government environments, the KIL740 supports standalone operation and can be integrated into new construction or retrofit wall cavities with its adjustable extending arms. The enclosure supports displays up to 75 lb across VESA mounting patterns from 200x200 to 600x400, and includes an integrated fan for active thermal management during continuous operation. Its 1" slim front profile and fully integrated media player bay make it a practical choice for any project where the signage installation must meet both aesthetic and accessibility requirements.

Product Description

The KIL740 is purpose-built for 40" landscape commercial displays and shares the core architecture of the KIL742 with dimensional adjustments to fit the slightly smaller panel format. The enclosure is partially pre-assembled at the factory to minimize on-site assembly time, and its extending arms allow the unit to be positioned and secured within the rough opening by a single installer. Adjustable width, height, and depth dimensions give integrators flexibility to accommodate panels from multiple manufacturers without custom adapter hardware. The KIL740's interior bay supports a small-form-factor media player or embedded PC, allowing complete kiosk functionality with all hardware contained within the enclosure. Active thermal management via the integrated fan prevents heat buildup during 16/7 or 24/7 operating schedules, which is essential for displays installed in building common areas, retail floors, or transit facilities running continuous content loops. The gloss black finish is consistent with the KIL740's commercial application context, and the RoHS certification meets standard project environmental compliance requirements.

Key Features

• Sub-1" Front Profile — Near-flush installation meets ADA protrusion limits and delivers a clean, architectural wall finish.
• 40" Landscape Orientation — Optimized for 40" widescreen commercial displays in horizontal content and wayfinding configurations.
• ADA Compliant Design — Low front protrusion supports compliance with ADA wall-mounted object requirements when installed at proper heights.
• Extending Installation Arms — Adjustable arms allow single-person installation in new construction and retrofit wall openings.
• Integrated Cooling Fan — Active airflow protects the display and media player hardware during extended continuous operation.
• Universal VESA Compatibility — Supports 200x200 to 600x400 mm mounting patterns for broad display compatibility.
• Adjustable Width, Height, and Depth — Field-configurable to accommodate panels from multiple manufacturers.
• Integrated Media Player Bay — Interior space for a small-form-factor media player keeps all electronics concealed within the wall.
• 75 lb Maximum Load Capacity — Rated for the full range of commercial 40" flat panel displays.
• RoHS Compliant — Meets hazardous substances regulations for environmentally compliant installations.

Typical Applications

• Retail floor digital signage and product promotion displays
• Corporate building directory and wayfinding kiosks
• Government and municipal public information displays
• Healthcare facility patient navigation and information kiosks
• Hospitality lobby and corridor directional signage
• Education building directory and announcement boards
• Transportation and mass transit passenger information displays

Technical Specifications

Frequently Asked Questions

Q: How does the KIL740 differ from the KIL742?

A: The KIL740 is designed for 40" landscape displays and the KIL742 is designed for 42" landscape displays. Both share the same core architecture — sub-1" front profile, extending installation arms, integrated fan, and adjustable dimensions — but the KIL740's dimensional envelope is sized for the slightly smaller panel format.

Q: Is the KIL740 suitable for high-traffic public areas?

A: Yes. The flush-mount, sub-1" front profile minimizes protrusion into pedestrian pathways, and the enclosed design protects the display and internal hardware from incidental contact. It is appropriate for lobbies, corridors, retail floors, and transit facilities.

Q: What happens if I need to service the display after installation?

A: The KIL740's enclosure is designed for field serviceability. The display and internal media player can be accessed from the front face without requiring wall demolition or removal of finished surfaces.

Q: Can the KIL740 run a display 24 hours a day?

A: Yes. The integrated fan provides active thermal management that keeps operating temperatures within safe limits for continuous 24/7 operation, provided the display itself is rated for extended runtimes by its manufacturer.

Q: Does the KIL740 ship pre-assembled?

A: The enclosure ships partially pre-assembled to reduce on-site labor. The extending arms and display mounting hardware require field installation per the included instructions.

Q: What is the protrusion depth from the finished wall surface?

A: The KIL740 is designed with a front profile of approximately 1" or less from the finished wall surface, which supports ADA compliance for wall-mounted objects in accessible paths of travel when installed at the correct height.
