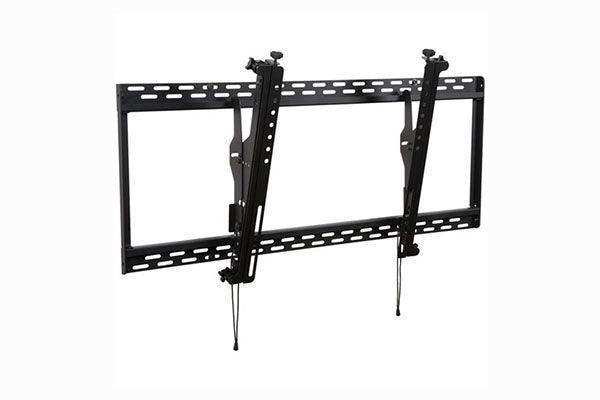

Peerless-AV DS-MBZ642L – QSR Menu Board Wall Mount for 40"–42" Displays

DS-MBZ642L – Peerless-AV QSR Menu Board Wall Mount for 40"–42" Displays

The Peerless-AV DS-MBZ642L is a landscape-orientation menu board wall mount engineered specifically for quick service restaurant (QSR) digital menu board installations, supporting 40" to 42" flat panel displays with a VESA mounting pattern up to 880 x 400 mm.

Product Description

Designed for commercial digital menu board environments, the DS-MBZ642L creates a seamless, continuous mounting surface by connecting wall plates across multiple displays. Both continuous and fixed tilt options allow every display in an array to be set to the same viewing angle simultaneously, ensuring precise alignment across a QSR counter lineup.

Installation efficiency is a central design priority. An easy-hang wall plate supports single-person installation, and the quick-connect latch automatically engages the plate when hanging the display assembly. A built-in kickstand holds the bottom of each display away from the wall during cable connection, reducing the time and labor involved in routing and terminating cables before the display is fully secured.

The DS-MBZ642L includes tool-less height adjustment per universal display adapter bracket and four-corner depth adjustment, allowing installers to compensate for wall imperfections and achieve flush, level alignment across an entire menu board array. Included security hardware deters tampering and theft in public-facing environments. The open wall plate design avoids interference with in-wall electrical and cabling infrastructure.

Key Features

• Landscape configuration designed for 40"–42" displays with VESA mounting hole patterns up to 880 x 400 mm (34.65" W x 15.75" H).
• Tool-less vertical adjustment on each universal display adapter bracket enables post-installation leveling and fine-tuning without additional tools.
• Four-corner depth adjustment keeps all displays on the same plane and compensates for wall imperfections.
• Continuous and fixed tilt options allow uniform tilt angle across an entire multi-display menu board array.
• Easy-hang wall plate design supports single-person installation without requiring a second technician for alignment.
• Quick-connect latch automatically engages the wall plate for accelerated display mounting during installation.
• Kickstand feature holds the display bottom away from the wall during cable connection, improving access and reducing installation time.
• Included security hardware deters tampering and theft in public-access QSR environments.
• Open wall plate construction avoids interference with in-wall boxes and cable pathways.
