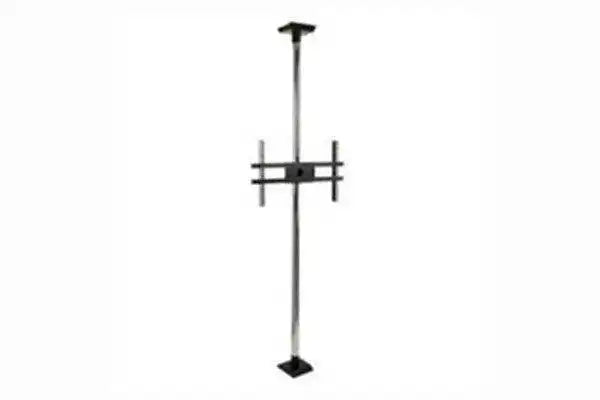

Peerless-AV MOD-FCSKIT300 – 3-Meter Floor-to-Ceiling Mount Kit for 32" to 75" Displays

MOD-FCSKIT300 – Peerless-AV 3-Meter Modular Floor-to-Ceiling Display Mount Kit (Zinc)

The Peerless-AV MOD-FCSKIT300 is a modular floor-to-ceiling mounting kit that supports 32" to 65" flat panel displays between floor and ceiling structures using a 3-meter extension pole, with 360-degree swivel and -5 to +20-degree tilt adjustment for precise display positioning.

Product Description

The Peerless-AV MOD-FCSKIT300 is part of the Modular Series, a platform designed to fulfill multiple commercial display mounting requirements from a compact set of interchangeable components. The floor-to-ceiling approach eliminates the need to penetrate ceilings or walls for structural anchoring, making the MOD-FCSKIT300 appropriate for environments where drilling into architectural surfaces is not permitted or practical, such as historic buildings, leased commercial spaces, or temporary installations.

The kit contains everything required to complete a floor-to-ceiling single or dual display installation: two heavy-duty ceiling plates compatible with wood joists and concrete, a 3-meter extension pole that can be cut to the desired length, a display stacking clamp for single or dual flat-screen configurations, and a universal adapter supporting VESA mounting patterns up to 700 x 400mm for displays from 32" to 75". This comprehensive component set reduces the risk of missing parts on the job site.

Once installed, the display offers -5 to +20-degree tilt with incremental lock positions at every 5-degree interval, providing controlled angle adjustment for different viewer heights and room geometries. The 360-degree swivel allows the display to be rotated to face any direction from the pole, which is useful in open-plan spaces where visibility from multiple angles is required. Maximum load capacity is 132 lb (60 kg), suitable for most commercial displays in the supported size range.

Key Features

• Includes a 3-meter extension column that can be cut on-site to achieve the required height for floor-to-ceiling installations in spaces with non-standard ceiling heights.
• Universal adapter supports 32" to 75" displays with VESA mounting patterns up to 700 x 400mm, providing broad compatibility across display brands and models.
• Two flat square ceiling plates included for mounting on both wood joists and concrete ceiling structures without requiring additional hardware.
• Display stacking clamp supports single or dual flat panel displays on a single pole, allowing multi-screen configurations without additional poles.
• Tilt range of -5 to +20 degrees with incremental locking at every 5-degree interval for stable, repeatable angle settings.
• 360-degree swivel adjustment allows the display to be directed toward any viewing angle from the mounted pole position.
• Maximum load capacity of 132 lb (60 kg) supports heavy commercial-grade displays in the supported size range.
• Zinc finish provides corrosion resistance appropriate for a variety of commercial interior environments.

Typical Applications

The MOD-FCSKIT300 is appropriate for retail environments, corporate lobbies, trade show displays, and open-plan office spaces where wall or ceiling penetration is not available or desirable. It is also used in educational facilities, libraries, and hospitality venues for freestanding display signage that requires a stable, professional-looking installation without permanent wall attachment.

Technical Specifications

Frequently Asked Questions

Can the 3-meter extension pole be cut to a shorter length?

Yes. The included 3-meter extension column is designed to be cut to the desired length in the field. This makes it practical for installations where the floor-to-ceiling height is less than 3 meters, or where a specific pole height is required for optimal display positioning.

Does the MOD-FCSKIT300 support dual-display configurations?

Yes. The included display stacking clamp is designed to serve as a mounting solution for both single and dual flat-screen displays on the single pole. This allows two screens to be mounted at different heights on the same floor-to-ceiling column.

What ceiling types are compatible with the included mounting plates?

The two flat square ceiling plates included with the MOD-FCSKIT300 are designed for mounting on wood joists and concrete ceilings. For other ceiling types, installers should verify structural compatibility before installation.
