Peerless-AV MOD-FPSKIT100-B – 1M Modular Ceiling Mount Kit for Flat Panels (Black)

MOD-FPSKIT100-B – 1M Modular Ceiling Mount Kit for Flat Panel Displays (Black)

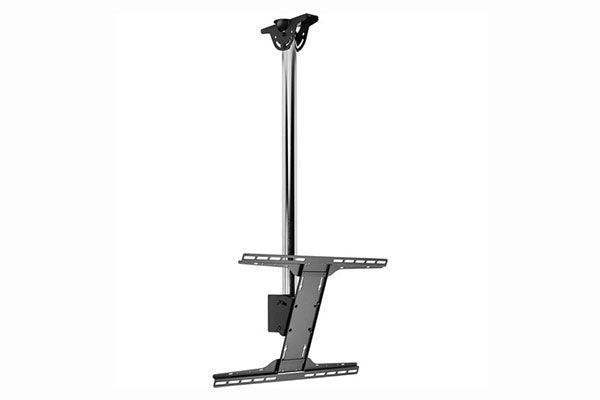

The Peerless-AV MOD-FPSKIT100-B is a complete one-person ceiling mount kit that supports flat panel displays from 39 to 75 inches, featuring a 1-meter (39-inch) extension pole, cathedral ceiling plate, single display mount, and large universal adaptor — all in black.

Product Description

The MOD-FPSKIT100-B is part of Peerless-AV's Modular Mount Line — a system built around a 2-inch (50 mm) diameter pole that is specifically designed to keep component counts low while covering a wide range of ceiling mounting requirements. The kit is equally at home on new construction projects and on upgrade installations where an existing ceiling structure is already in place.

The included Cathedral Ceiling Plate adjusts ±60 degrees, making it appropriate for flat, vaulted, and sloping ceiling surfaces without requiring a separate adapter. The 1-meter pole provides up to 39 inches of drop, positioning the display at an appropriate viewing height in spaces with standard ceiling heights. The Single Display Flat Panel Mount connects to the pole via a quick hook-on feature and tilts from +20 to -5 degrees, locking at every 5-degree increment for precise angle adjustment. Integrated cable management runs through the interior of the pole, keeping signal and power cables hidden from both ends.

The Large Universal Adaptor accommodates VESA mounting patterns up to 600 x 400 mm, providing compatibility with the overwhelming majority of commercial displays up to 75 inches. Additional Modular Series accessories — including the MOD-AUB U-Bolt Adaptor for truss and pipe mounting — allow this kit to be expanded for multi-display configurations or alternative structural attachment points.

Key Features

• Complete ceiling mount kit includes Cathedral Ceiling Plate, 1-meter extension pole, Single Display Flat Panel Mount, and Large Universal Adaptor.
• Cathedral Ceiling Plate adjusts ±60° for installation on flat, vaulted, and sloping ceiling surfaces.
• Supports flat panel displays from 39 to 75 inches with VESA patterns up to 600 x 400 mm.
• Designed for single-person installation with a hook-on mount connection that simplifies display hanging.
• Mount tilts +20° to -5° and locks at every 5° increment for accurate, repeatable viewing angle adjustment.
• Integrated through-pole cable management conceals signal and power cables along the full drop length.
• Installs to wood joist and concrete ceilings; compatible with the MOD-AUB U-Bolt Adaptor for truss and pipe attachment.
• Modular design is expandable with additional Peerless-AV Modular Series accessories for multi-display or custom configurations.

Technical Specifications
