Peerless-AV WMJ018 – 18" Jumbo 2 Single Wall Arm (Black)
Peerless-AV WMJ018 – 18" Jumbo 2 Single Wall Arm (Black) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.

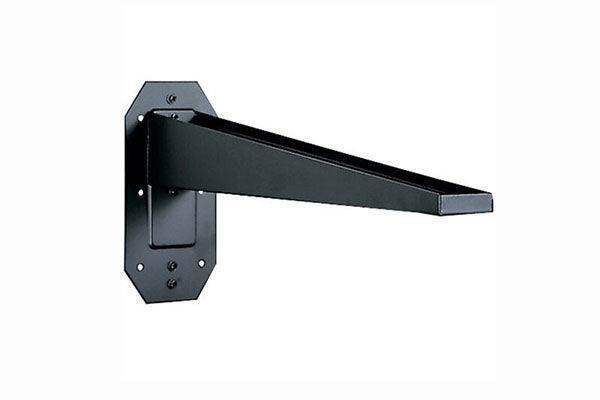

Peerless-AV WMJ018 – 18" Jumbo 2 Single Wall Arm (Black)
WMJ018 – 18" Jumbo 2 Single Wall Arm (Black)
The Peerless-AV WMJ018 is an 18-inch single wall arm for the Jumbo 2 mount series, featuring a 1-1/2"-11.5 NPT threaded fitting that accepts Peerless-AV flush mount tubes and extension columns for flexible display positioning overhead or at height.
Product Description
Wall arms for Jumbo 2 series mounts serve a specific purpose in commercial AV installations: they extend the display out from the wall at a fixed height, typically in environments like warehouses, production floors, fitness centers, and large open-plan spaces where ceiling mounting is impractical but a standard flat wall mount would position the display too close to the wall for adequate sightlines from a distance.
The WMJ018 is the single-arm version of this assembly, designed for installations where one structural anchor point is sufficient. The 1-1/2"-11.5 NPT threaded fitting at the end of the arm is the critical interface point: it accepts either Peerless-AV flush mount tubes for a fixed-position installation or extension columns to achieve additional height adjustment. The arm ships with wood screws for direct stud attachment.
Weighing approximately 9.40 lb and manufactured in the United States, the WMJ018 is engineered to the structural and finish standards of the broader Jumbo 2 mount platform. Compatible Jumbo Mount heads include the JM2630, JM2630D, and JM2640 models.
Key Features
- 18-inch extension arm for Jumbo 2 series mounts, providing wall-standoff positioning for large displays in open-plan spaces.
- 1-1/2"-11.5 NPT threaded fitting accepts Peerless-AV flush mount tubes or extension columns.
- Compatible with Jumbo Mount heads JM2630, JM2630D, and JM2640.
- Ships with wood screws for direct structural stud attachment.
- Single-arm design for installations requiring a single wall anchor point.
- Black finish matches Jumbo 2 series hardware for a coordinated installation.
- Manufactured in the United States.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | WMJ018 |
| Manufacturer | Peerless-AV |
| Arm Length | 18" |
| Configuration | Single Arm |
| Threaded Fitting | 1-1/2"-11.5 NPT |
| Compatible Mount Heads | JM2630, JM2630D, JM2640 |
| Color | Black |
| Weight (Approximate) | 9.40 lb |
| Included Hardware | Wood screws |
| Country of Origin | United States |
| Warranty | Peerless-AV Limited Warranty |
