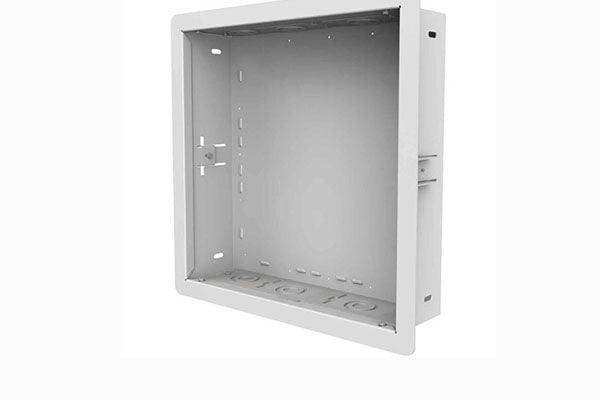

Peerless-AV IB14X14-AC-W – 14x14" In-Wall Box with Duplex Surge Protector (White)

IB14X14-AC-W – Peerless-AV 14x14" In-Wall Box with Duplex Surge Protector (White)

The Peerless-AV IB14X14-AC-W is a 14x14-inch in-wall box with an integrated 720-joule duplex surge protector, designed for clean, code-compliant AV power and cable management in commercial flat panel display installations.

Product Description

Managing power and signal cables behind a wall-mounted display is one of the most common finish-quality challenges in commercial AV installation. The IB14X14-AC-W addresses this directly by providing a recessed enclosure that houses a duplex outlet and surge protector inside the wall cavity, at the display location, eliminating exposed power cords and external power strips from the finished installation.

The 14x14-inch enclosure is large enough to accommodate the gang box, face plate, and the included 720-joule Leviton duplex surge protector while still providing room for cable routing and termination. Removable top and bottom plates allow an installer to complete all wiring terminations outside the box before sliding the completed assembly into the wall opening, reducing the amount of confined-space work required during the installation.

The removable trim ring supports drywall thicknesses from 3/8 to 3/4 inch and allows the box to be installed before or after drywall is applied, accommodating both new-construction and retrofit scenarios. Flexible structural mounting options include dual-stud, single-stud, or drywall-only installation using drywall clamps. Knock-outs accept 3/4-inch, 1.0-inch, 1.25-inch, and 1.5-inch conduit. RoHS certified and TAA compliant. Available from Creation Networks at creationnetworks.net.

Key Features

• Integrated 720-joule Leviton duplex surge protector — Provides in-wall AC power with surge protection at the display location, eliminating external power strips and exposed cords from the finished installation.
• 14x14-inch enclosure — Generous internal volume accommodates the surge protector gang box, face plate, and cable routing without crowding, with a cut-out dimension of 14.4 x 14.4 inches (365 x 365mm).
• Removable mounting plates — Top and bottom plates can be removed so wiring terminations are completed outside the enclosure, reducing confined-space work during installation.
• Pre-construction or retrofit installation — The removable trim ring allows the box to be installed before drywall is hung or retrofit into an existing wall opening, supporting both new construction and upgrade projects.
• Three structural mounting options — Installs between two 16-inch stud centers, to a single stud, or directly into drywall using integrated drywall clamps, accommodating a wide range of wall construction types.
• Multiple conduit knock-outs — Accepts 3/4-inch, 1.0-inch, 1.25-inch, and 1.5-inch conduit for structured wiring and in-wall cable routing.
• RoHS certified and TAA compliant — Meets environmental and trade agreement requirements for government, education, and corporate procurement specifications.
• White finish — Trim ring and face plate in white to match standard commercial drywall finishes and blend with wall-mounted display hardware.

Typical Applications

The IB14X14-AC-W is used in commercial flat panel display installations where in-wall power and cable management are required for a code-compliant, finished result. Typical deployments include corporate conference rooms, hotel room display installations, digital signage in retail environments, and any application where local electrical codes or design specifications prohibit exposed power cords behind wall-mounted displays.

Technical Specifications

Frequently Asked Questions

Does the IB14X14-AC-W include the surge protector, gang box, and face plate?

Yes. The IB14X14-AC-W ships with a 720-joule Leviton duplex surge protector, the compatible gang box, and a face plate. These components are all included in the listed price and are pre-matched for fit within the 14x14-inch enclosure.

Can the IB14X14-AC-W be installed in existing drywall without studs at the correct spacing?

Yes. Integrated drywall clamps allow the enclosure to be secured directly in a drywall opening without stud support, making retrofit installation practical in locations where studs are not at the required spacing for the display position.

Is the IB14X14-AC-W suitable for government or education procurement that requires TAA compliance?

Yes. The IB14X14-AC-W is TAA compliant and RoHS certified, meeting the trade agreement and environmental requirements common in government, K-12, and higher education commercial AV procurement specifications.
