IB14X14-W – Peerless-AV 14"x14" In-Wall Box for Recessed Power and AV Components

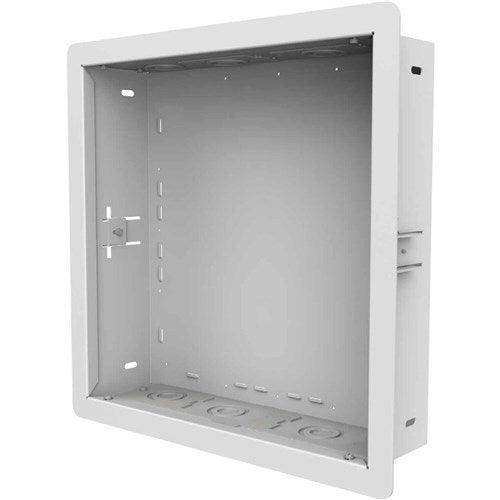

The Peerless-AV IB14X14-W is a 14" x 14" in-wall enclosure engineered for flexible installation in new construction and retrofit environments, providing recessed space for power outlets and low-voltage AV components behind flat panel displays.
Product Description
The IB14X14-W's removable trim ring is a standout feature for commercial integrators working in phased construction projects: the box can be roughed in before drywall is hung, and the trim ring added after finishing — or the trim ring can be omitted entirely for a flush fit in existing walls. The adjustable trim ring accommodates drywall thicknesses from 3/8" to 3/4", covering the full range of standard commercial construction materials.
Flexible securement options allow the box to mount between 16" (406mm) stud centers, to a single stud, or directly into a drywall opening using the included drywall clamps — making it equally practical in new stud bays or during retrofit work where stud placement is not ideal. Multiple conduit knock-outs (3/4", 1.0", 1.25", 1.5") accommodate a range of low-voltage and power conduit sizes. Removable top and bottom plates allow wiring terminations to be completed outside the box before final mounting. The IB14X14-W is UL 2416 listed, manufactured in Taiwan, and backed by a 5-year limited warranty. Find it at Creation Networks.
Key Features
- 14" x 14" enclosure provides ample space for power outlets, low-voltage modules, and AV cabling behind displays.
- Installs between 16" stud centers, to a single stud, or in drywall only via included drywall clamps.
- Removable trim ring enables pre-construction rough-in or clean retrofit installations in finished walls.
- Adjustable trim ring accommodates drywall thicknesses from 3/8" to 3/4" for broad construction compatibility.
- Multiple conduit knock-outs (3/4", 1.0", 1.25", 1.5") support flexible conduit routing for power and signal runs.
- Up to four single-gang outlets can be installed using RACO 420 gang box or equivalent hardware.
- Removable top and bottom plates allow wiring terminations to be completed outside the box before final installation.
- UL 2416 listed; 5-year limited warranty; integrated cable tie locations for organized low-voltage management.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | IB14X14-W |
| Color | White |
| Cut-Out Dimensions | 14.4" x 14.4" (365 x 365mm) |
| Stud Spacing Compatibility | 16" (406mm) centers, single stud, or drywall only |
| Drywall Thickness Range | 3/8" to 3/4" |
| Conduit Knock-Outs | 3/4", 1.0", 1.25", 1.5" |
| Max Single-Gang Outlets | Up to 4 (RACO 420 or equivalent) |
| Listing | UL 2416 |
| Country of Origin | Taiwan |
| Warranty | 5 Year Limited |
| Brand | Peerless-AV |
