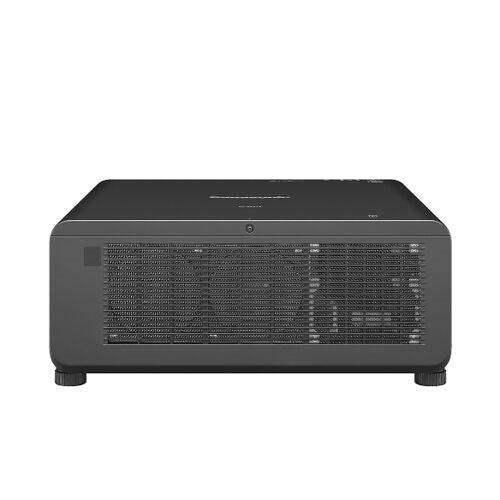

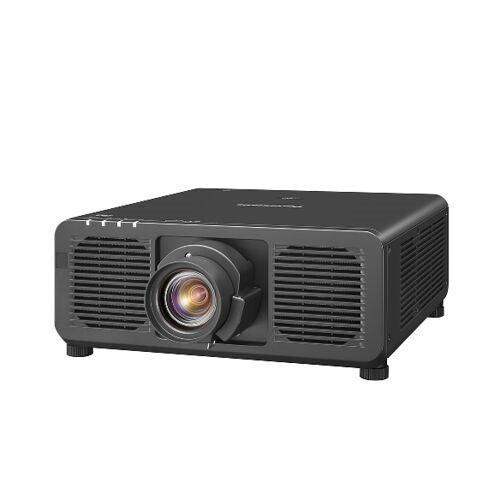

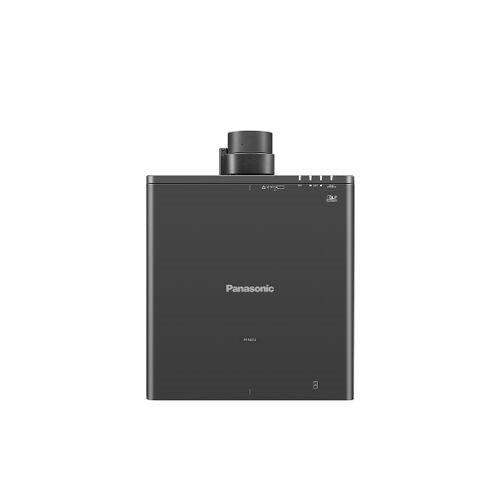

Panasonic PT-REZ12LBU7 12,000 Lum, Laser, WUXGA Res (1920x1200) DLP Proj (No Lens, Black)
Panasonic PT-REZ12LBU7 12,000 Lum, Laser, WUXGA Res (1920x1200) DLP Proj (No Lens, Black) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Panasonic PT-REZ12LBU7 12,000 Lum, Laser, WUXGA Res (1920x1200) DLP...
Product Overview
The Panasonic PT-REZ12LBU7 is a 12,000-lumen WUXGA 1-chip DLP laser projector built for large-venue and live-event deployment where high brightness and unattended reliability are required. As a filter-free install projector with a 20,000-hour maintenance-free laser light source, it is well suited to auditoriums, houses of worship, and rental and staging work. This is the no-lens, black-cabinet configuration, allowing AV integrators to specify the throw and shift range the room demands.
Product Description
The PT-REZ12LBU7 delivers 12,000 ISO lumens at native WUXGA (1,920 x 1,200) resolution, with scene-recognition Dynamic Contrast and Rich Color Enhancer processing for accurate color on large screens. Black-level adjustment is decoupled from geometric adjustment so multi-projector blends remain consistent across curved and irregular surfaces, making the unit a practical choice for projection mapping and edge-blended displays. Connectivity covers two HDMI inputs plus DisplayPort, and an Intel SDM-ready slot lets integrators add optional function boards as a project scales. Full 360-degree orientation and 21:9 signal support cover everything from ceiling-mounted conference room installs to cinematic widescreen content. For lens selection, see the compatible Panasonic ET-C1S600 zoom lens. Buyers comparing brightness tiers can review the matching PT-REZ12LWU7 in white, the 10,000-lumen PT-REZ10LBU7, and the 8,000-lumen PT-REZ80LBU7.
Key Features
- 12,000 ISO Lumens — High brightness holds image contrast in large rooms and venues with significant ambient light.
- Native WUXGA Resolution — 1,920 x 1,200 panels match widescreen presentation and video content without scaling artifacts.
- Filter-Free Laser Engine — An IP5X dust-protected optical engine and liquid cooling support up to 20,000 hours of maintenance-free operation.
- Dynamic Contrast with Rich Color Enhancer — Scene-recognition processing improves perceived contrast and keeps color reproduction accurate.
- Seamless Multi-Screen Blending — Black-level adjustment independent of geometric correction supports edge-blended and curved-screen projection.
- Intel SDM-Ready Slot — Optional function boards expand connectivity for evolving signal and control requirements.
- 360-Degree and 21:9 Support — Free orientation mounting and ultrawide signal handling suit varied install geometries and hybrid meeting layouts.
- Network Control — LAN and RS-232 with Crestron Connected V2, PJLink, Art-Net DMX, Extron XTP, and IPv6 for integration into managed AV systems.
Typical Applications
- Auditorium — High lumen output covers large screens and seating depth.
- House of worship — Filter-free, low-maintenance operation suits long unattended service schedules.
- Broadcast studio — Accurate color and multi-screen blending support set and backdrop projection.
- Commercial meeting space — 21:9 support and network control fit hybrid, integrator-managed environments.
- Multi-purpose room — 360-degree mounting adapts to flexible room configurations.
Technical Specifications
| Model Number | PT-REZ12LBU7 |
|---|---|
| Brand | Panasonic |
| Brightness | 12,000 ISO lumens |
| Native Resolution | WUXGA (1,920 x 1,200) |
| Display Technology | 1-Chip DLP |
| Light Source | Laser, up to 20,000 hours maintenance-free |
| Dynamic Contrast | 25,000:1 (scene-recognition Dynamic Contrast) |
| Lens | Not included (optional Panasonic ET-C1 series) |
| Inputs | 2 x HDMI, 1 x DisplayPort; Intel SDM-ready slot |
| Control | LAN, RS-232; Crestron Connected V2, PJLink, Art-Net DMX, Extron XTP, IPv6 |
| Orientation | Full 360-degree |
| Filter | Filter-free (IP5X dust-protected optical engine) |
| Cabinet Color | Black |
| Shipping Weight | 75.53 lb |
| UPC | 0885170412934 |
| Country of Origin | Vietnam |
Specifications sourced from Panasonic / vendor data. Net weight, cabinet dimensions, power consumption, fan noise level, and operating temperature range require manual review against the current Panasonic PT-REZ12LBU7 spec sheet.
Competitor Comparison
| Criteria | Panasonic PT-REZ12LBU7 | Epson Pro L1070UNL | Christie DWU880-GS |
|---|---|---|---|
| Brightness | 12,000 ISO lumens, among the brighter 1-chip DLP laser units in its class | Approximately 7,000 lumens, a step below in raw output | Approximately 8,000 lumens, also below the REZ12 |
| Imaging technology | 1-chip DLP, filter-free | 3LCD, which can show color brightness differently than DLP | 1-chip DLP, comparable technology |
| Native resolution | WUXGA (1,920 x 1,200) | WUXGA (1,920 x 1,200), matching | WUXGA (1,920 x 1,200), matching |
| Light source life | Up to 20,000 hours maintenance-free laser | Laser light source with comparable rated life | Laser light source with comparable rated life |
| Expandability | Intel SDM-ready slot for optional function boards | Optional HDBaseT and interface options, no SDM slot | Modular input options vary by configuration |
| Blending and mapping | Independent black-level and geometric adjustment for curved-screen blends | Edge blending available, typically via add-on processing | Strong warp and blend toolset, a Christie strength |
| Lens approach | No-lens model with Panasonic ET-C1 interchangeable lenses | Interchangeable lens lineup, lens sold separately | Interchangeable lens lineup, lens sold separately |
Competitor specifications are drawn from published manufacturer data and should be verified against current datasheets before procurement.
Frequently Asked Questions
Does the PT-REZ12LBU7 include a lens? No. This is a no-lens configuration so integrators can match throw distance and shift to the room; Panasonic ET-C1 series lenses such as the ET-C1S600 are compatible.
Can it be mounted at any angle? Yes. The projector supports full 360-degree orientation, including portrait and ceiling mounting, for flexible installation.
How does it integrate with a control system? It supports LAN and RS-232 control with Crestron Connected V2, PJLink, Art-Net DMX, Extron XTP, and IPv6, so it drops into most managed commercial AV systems.
Is routine filter maintenance required? No. The filter-free, IP5X dust-protected laser engine is rated for up to 20,000 hours of maintenance-free operation, reducing service visits in fixed installs.
What warranty applies? Panasonic projectors of this class carry a manufacturer commercial warranty; confirm the current term and registration requirements with Creation Networks before purchase.
