Panasonic PT-RCQ80LWU 8,000 Lumens, Laser, WUXGA Resolution (1,920 ...
Product Overview

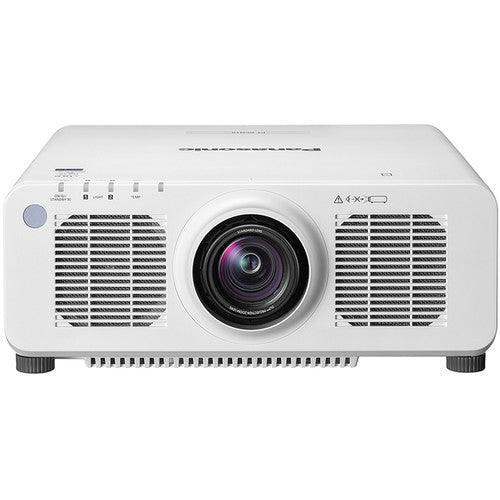

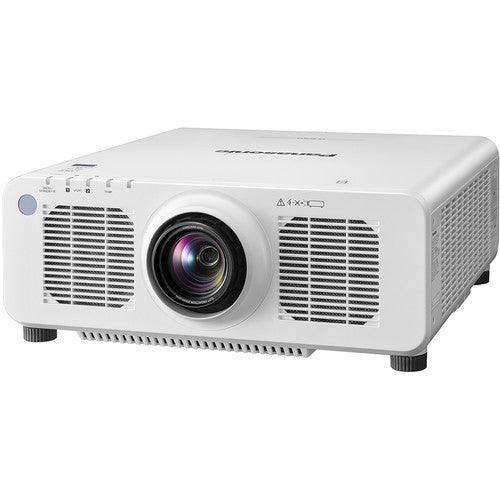

The Panasonic PT-RCQ80LWU is an 8,000-lumen WUXGA 1-chip DLP laser projector for large venue and rental/staging installations. This 8,000-lumen WUXGA DLP laser projector accepts 4K signal input, shifts on-screen detail up to WQXGA (2,715 x 1,697), and ships without a lens so integrators can match the throw to the venue. A SLOT NX expansion bay and HDBaseT, 3G-/HD-SDI, DVI-D, and HDMI inputs make it a flexible engine for auditoriums, broadcast studios, and houses of worship. Note: this model is discontinued; remaining stock and lens compatibility should be confirmed before ordering.
Product Description
The PT-RCQ80LWU uses a single-chip 0.67-inch DLP imager with Smooth Pixel Drive, so there is no panel convergence to maintain and detail resolves up to WQXGA via pixel shift. Panasonic's Rich Color Harmonizer tunes color reproduction for large-screen viewing, and the SONIC SHINE laser cooling system supports up to 20,000 hours of largely maintenance-free operation. An open lens mount supports a range of Panasonic 1-chip DLP lenses for throw ratios from short to long, and the SLOT NX interface bay accepts optional input and networking boards for evolving signal infrastructure. With 360-degree rotation-capable mounting and HDBaseT/Ethernet/RS-232 control, it drops into rack-mounted, ceiling, and rigged configurations. For brighter or 4K-native fixed installs, compare the Panasonic PT-FRQ60WU7 and the Panasonic PT-FRZ60WU7.
Key Features
- 8,000-Lumen 1-Chip DLP Laser — Bright WUXGA image with no panel convergence to maintain over the install life.
- 4K Signal Input with Pixel Shift — Accepts 4K UHD up to 60 Hz and resolves on-screen detail up to WQXGA (2,715 x 1,697).
- SLOT NX Expansion — One interface bay accepts optional input/networking boards to adapt to changing signal infrastructure.
- Broadcast-Grade Inputs — HDBaseT, 3G-/HD-SDI, DVI-D, and HDMI cover professional source devices in studios and large venues.
- Interchangeable Lens Mount — Ships without a lens; supports a range of Panasonic 1-chip DLP lenses for venue-specific throw.
- SONIC SHINE Laser Cooling — Up to 20,000 hours of maintenance-free light-source operation.
- 360-Degree Installation — Rotation-capable mounting plus rear-projection and tilt support for rigging and staging.
- Pro Control — HDBaseT, Ethernet, and RS-232 control compatible with major control systems.
Typical Applications
- Auditorium and large venue staging
- Broadcast studio and production space
- House of worship main image
- Government and commercial meeting space with rental/staging needs
Technical Specifications
| Model Number | PT-RCQ80LWU |
|---|---|
| Display System | 0.67-inch 1-chip DLP |
| Native Resolution | WUXGA (1,920 x 1,200); on-screen up to WQXGA (2,715 x 1,697) via pixel shift |
| Supported Signal | Up to 4K UHD 3,840 x 2,160 @ 60 Hz |
| Brightness | 8,000 lumens |
| Dynamic Contrast | 10,000:1 |
| Uniformity | 90% |
| Lens | No lens included (sold separately); projection size 50-600 in |
| Light Source | Laser phosphor; up to 20,000 hr (full) / 24,000 hr (low) |
| Operation Noise | 40 dB (full) / 38 dB (low) |
| Inputs / Outputs | HDBaseT RJ-45, HDMI, 3G-/HD-SDI (BNC), DVI-D, RS-232 in/out, Ethernet, USB-A |
| Expansion | 1 x SLOT NX interface bay |
| Mounting | Ceiling mountable, rear projection, 360-degree tilt |
| Power | AC 100-240 V, 50/60 Hz; approx. 880 W (medium brightness) |
| Dimensions (W x H x D) | 498 x 200 x 538 mm (19.6 x 7.9 x 21.2 in), without lens |
| Weight | 23.4 kg (51.59 lb) |
| Operating Temperature | 0-45 C (32-113 F) |
| Cabinet Color | White |
| Status | Discontinued |
Competitor Comparison
| Criteria | Panasonic PT-RCQ80LWU | Sharp NEC PV800UL | Epson Pro L-Series (8,000 lm class) |
|---|---|---|---|
| Imaging technology | 1-chip DLP laser, no panel convergence; Smooth Pixel Drive to WQXGA | 3LCD laser (full color brightness; convergence to maintain across 3 panels) | 3LCD laser with 4K Enhancement; convergence across 3 panels |
| Brightness | 8,000 lumens | 8,000 lumens (8,300 center) | Approx. 8,000-9,000 lumens depending on model (verify SKU) |
| Resolution | WUXGA native, on-screen up to WQXGA, 4K60 input | WUXGA native, 4K-ready, HDR10/BT.2020 support | WUXGA native with 4K Enhancement |
| Expansion / signal | SLOT NX bay plus 3G-/HD-SDI, DVI-D, HDBaseT, HDMI | HDBaseT and dual HDMI 2.0; no SDI without external gear | 3G-SDI and HDBaseT on Pro models; lens memory/edge blending |
| Lens system | Interchangeable Panasonic 1-chip DLP lenses, sold separately | Optional motorized-shift lenses, sold separately | Multiple optional powered lenses, sold separately |
| Light source life | Up to 20,000 hr (SONIC SHINE cooling) | Up to 20,000 hr | Up to ~20,000 hr |
| Availability | Discontinued; confirm remaining stock and lens support | Current product | Current product line |
Competitor specifications reflect publicly published manufacturer data and are provided for general comparison; confirm current figures before quoting.
Frequently Asked Questions
Does the PT-RCQ80LWU include a lens?
No. It ships without a lens and supports a range of Panasonic 1-chip DLP lenses so integrators can select the throw ratio for the venue. Because the model is discontinued, confirm current lens availability before ordering.
What 4K and broadcast signals does it accept?
It accepts 4K UHD signals up to 3,840 x 2,160 at 60 Hz and resolves on-screen detail up to WQXGA via pixel shift. Professional inputs include HDBaseT, 3G-/HD-SDI, DVI-D, and HDMI, suiting broadcast and staging workflows.
How does single-chip DLP compare to 3LCD here?
The 1-chip DLP imager has no panel convergence to align or maintain, which can simplify long-term upkeep in rigged and rental use; 3LCD competitors deliver equal white and color brightness but use three panels. Choose based on maintenance model and color preference.
Is it still available to buy?
This model is discontinued. Creation Networks can confirm any remaining stock, compatible lenses, and current alternatives before you commit to a design.
What control systems does it support?
It is controllable over HDBaseT, Ethernet, and RS-232 and is compatible with major control systems. Verify specific Crestron/AMX/Extron driver availability for your environment.
