Panasonic PT-MZ17KLBU7 16,500 Lumens, LCD, WUXGA Resolution (1,920 x 1,200), Laser, 4K Signal Input, Information Monitor (No Lens, Black)

Product Overview

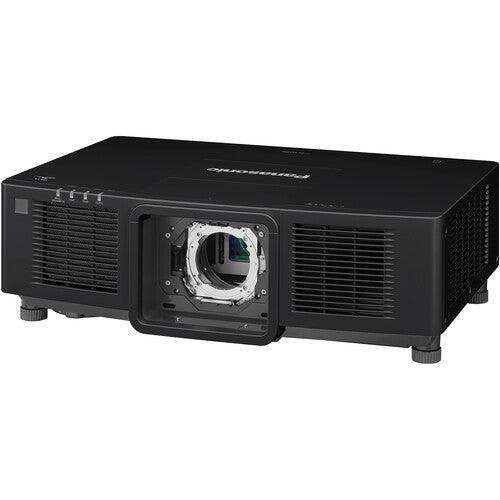

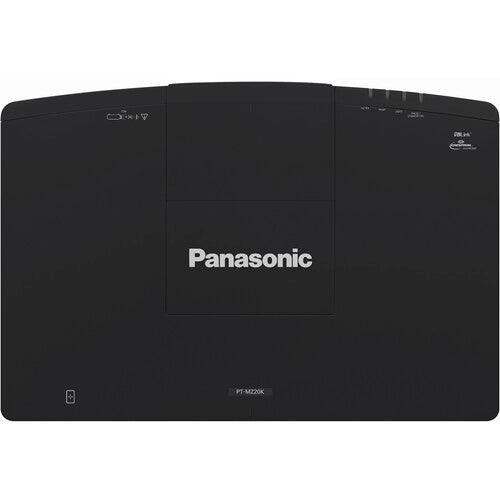

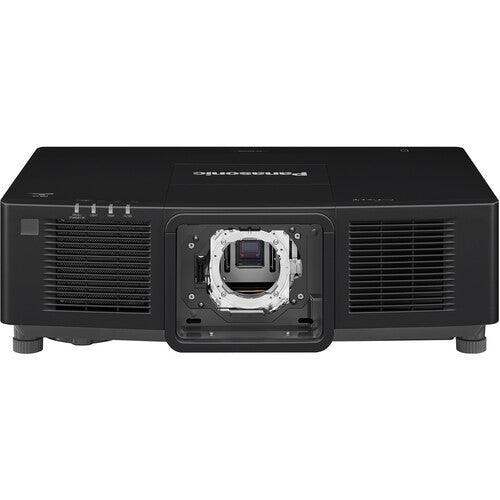

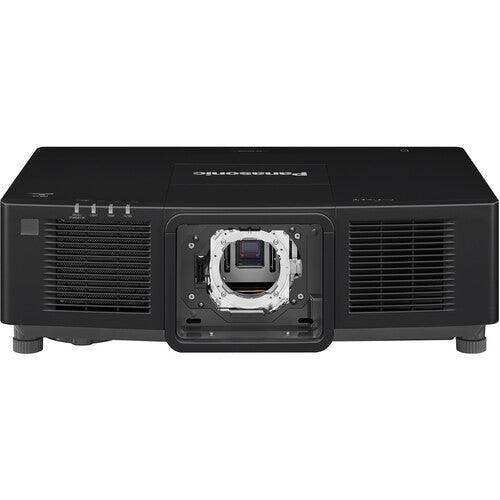

The Panasonic PT-MZ17KLBU7 is a 16,500-lumen 3LCD laser installation projector built for large, well-lit hybrid meeting and learning spaces. With native WUXGA (1,920 x 1,200) resolution, 4K signal input, and a filter-free liquid-cooling design, this 16,500-lumen 3LCD laser projector holds bright, color-accurate images on wide screens in conference rooms, lecture halls, and large venue installations. It ships without a lens so AV integrators can specify the exact throw for the room. The black cabinet keeps the unit visually discreet in finished ceilings and rigging.

Product Description

The PT-MZ17KLBU7 belongs to Panasonic's PT-MZ20K series of commercial-grade WUXGA installation projectors. Its Pure White Generator and Dynamic Contrast NX processing maintain saturated color and deep blacks even when ambient light is high, which is the typical condition in an all-glass conference room or a daylit training room. A multi-laser drive engine keeps the image stable if an individual laser module degrades, and the sealed liquid-cooling and dustproof structure supports long, maintenance-light duty cycles in rack-adjacent and ceiling-mounted deployments. Because the projector accepts a 4K signal and outputs WUXGA, it integrates cleanly with modern UC switchers and IP camera rebroadcast workflows. Buyers comparing brightness tiers in the same series can review the Panasonic PT-MZ14KLBU7 (14,000 lm) and the Panasonic PT-MZ11KLBU7 (11,000 lm); the matching ultra-short-throw option for tight rooms is the Panasonic PT-CMZ50U.

Key Features

• 16,500 3LCD Brightness — Pure White Generator delivers 16,500 lumens of color and white brightness for ambient-light-heavy rooms.
• Native WUXGA Resolution — 1,920 x 1,200 panels match 16:10 presentation content and widescreen UC layouts without scaling.
• 4K Signal Input — Accepts 4K sources and scales to the native panel, simplifying integration with current source devices.
• Filter-Free Liquid Cooling — Sealed liquid-cooling and dustproof construction reduce maintenance trips in ceiling and high-mount installs.
• Multi-Laser Drive Engine — Redundant laser modules keep the image usable if a single module fails during an event.
• Built-In Information Monitor — On-body display shows status and lets technicians change settings without a laptop at the mount.
• Lens Sold Separately — Open lens mount lets integrators specify the exact throw ratio for the screen and room geometry.
• LAN Control and Data Cloning — Network control plus configuration cloning over LAN or USB speeds multi-unit fleet rollouts.

Typical Applications

• Conference room and large commercial meeting space
• Training room and all-hands room
• Auditorium and house of worship main image
• Higher-education lecture hall and government briefing space

Technical Specifications

Specifications sourced from Panasonic / vendor data. Contrast ratio, compatible lens models and throw ratios, power consumption, operating temperature/humidity, net weight, cabinet dimensions, and audio output require manual review against the current Panasonic PT-MZ17KLBU7 spec sheet.

Competitor Comparison

Competitor specifications reflect publicly published manufacturer data and are provided for general comparison; confirm current figures before quoting.

Frequently Asked Questions

Does the PT-MZ17KLBU7 include a lens?

No. Like other PT-MZ20K series installation projectors, it ships without a lens so your integrator can select the correct Panasonic lens for the screen size and throw distance. Confirm the compatible lens lineup on the current Panasonic spec sheet before ordering.

What sources and control systems does it support?

It accepts 4K signal input scaled to the native WUXGA panel and supports LAN-based control and monitoring, configuration Data Cloning over LAN or USB, and the Smart Projector Control app for setup. Verify specific control-system certifications (Crestron, AMX, Extron) against the spec sheet for your deployment.

How is it cooled, and what maintenance does it need?

The projector uses a sealed liquid-cooling system with a dustproof, filter-free structure, which reduces routine filter service in ceiling and high-mount installations. The multi-laser drive engine adds redundancy so a single laser-module issue does not take the image offline mid-event.

Is this projector suitable for large rooms and rebroadcast?

Yes. The 16,500-lumen output is intended for large, well-lit conference rooms, lecture halls, and houses of worship, and the series is designed to support high-quality image rebroadcast via IP camera. For brighter or dimmer rooms, compare other brightness tiers in the series.

What warranty and support apply?

Warranty and support terms are set by Panasonic and the reseller. Confirm the current commercial projector warranty period and any registration requirements with Creation Networks before purchase.
