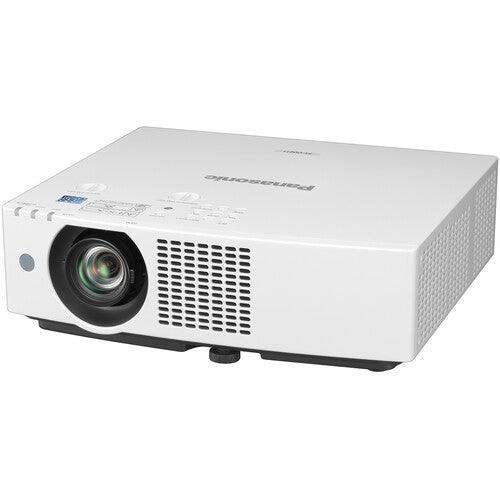

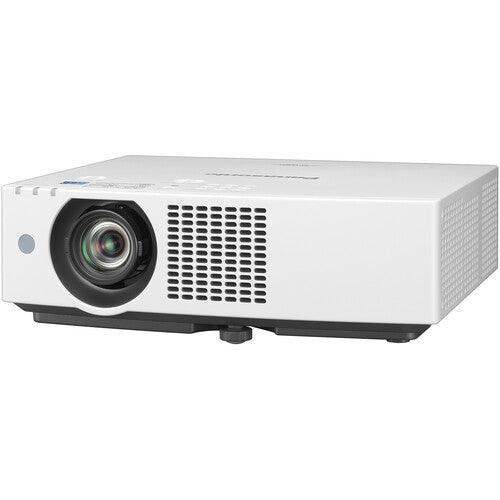

Panasonic PT-LMZ460U 4,600lm WUXGA (1920x1200) Laser LCD Projector

Product Overview

The Panasonic PT-LMZ460U is a 4,600-lumen WUXGA laser projector for everyday classroom, conference room, and training room presenting. This 4,600-lumen WUXGA laser projector pairs a lamp-free LCD engine with a 1.2x manual zoom and wide keystone correction, so it installs cleanly on a tabletop or ceiling mount across a range of room sizes. Dual HDMI and dual VGA inputs and an Ethernet port make it a straightforward fit for mixed legacy and modern AV environments.

Product Description

The PT-LMZ460U projects a 1,920 x 1,200 WUXGA image from 30 to 300 inches at a 1.36-2.05:1 throw ratio, covering most standard meeting and instructional rooms without a specialty lens. A laser-phosphor light source rated for up to 20,000 hours removes routine lamp changes, and vertical (25 deg) plus horizontal (35 deg) keystone correction with 1.2x manual zoom helps square the image on imperfect mounting surfaces. It supports 360-degree installation and ceiling mounting, with a built-in 10 W speaker for rooms without a separate sound system. Dual HDMI and dual VGA inputs ease migration from older room systems, while the RJ-45 LAN port allows network monitoring. For brighter rooms, compare the Panasonic PT-VMZ71U7; for a shadow-free short-throw option, see the Panasonic PT-CMZ50U.

Key Features

• 4,600-Lumen Laser Light Source — Lamp-free brightness for lit classrooms and meeting rooms with up to 20,000-hour operation.
• Native WUXGA Resolution — 1,920 x 1,200 panels display detailed 16:10 content and widescreen video.
• 1.2x Manual Zoom and Keystone — Vertical (25 deg) and horizontal (35 deg) correction square the image on off-axis mounts.
• Flexible Throw Range — 1.36-2.05:1 throw ratio fills 30- to 300-inch screens across common room depths.
• Dual HDMI and Dual VGA — Connects current and legacy sources without adapters in mixed AV rooms.
• Ethernet Network Control — RJ-45 LAN port supports network monitoring and management.
• 360-Degree Installation — Tabletop or ceiling mounting in any orientation to the screen.
• Built-In 10 W Speaker — Onboard mono audio for rooms without dedicated sound reinforcement.

Typical Applications

• Classroom and training room
• Conference room and huddle room
• Commercial meeting space and multi-purpose room
• House of worship secondary image

Technical Specifications

Competitor Comparison

Competitor specifications reflect publicly published manufacturer data and are provided for general comparison; confirm current figures and exact model SKUs before quoting.

Frequently Asked Questions

What size image can the PT-LMZ460U project?

It fills 30- to 300-inch screens at a 1.36-2.05:1 throw ratio with throw distances from 0.86 to 10.65 m, covering most classrooms and meeting rooms. A 1.2x manual zoom and keystone correction help fit the image to the screen.

Does it support legacy sources?

Yes. In addition to two HDMI inputs (HDCP 1.4), it retains two VGA (D-sub) inputs, which simplifies migration in rooms that still carry analog computer sources. An RJ-45 LAN port supports network monitoring.

Is it lamp-free, and how long does the light source last?

Yes. The laser-phosphor light source is rated up to 20,000 hours (medium) and 24,000 hours (low brightness), removing scheduled lamp replacements over a typical install life.

Can it be ceiling mounted in any orientation?

Yes. It supports ceiling mounting and 360-degree installation, so it can be oriented to the projection surface in tabletop or rigged configurations.

What warranty and support apply?

Warranty and support terms are set by Panasonic and the reseller. Confirm the current commercial projector warranty period and registration requirements with Creation Networks before purchase.
