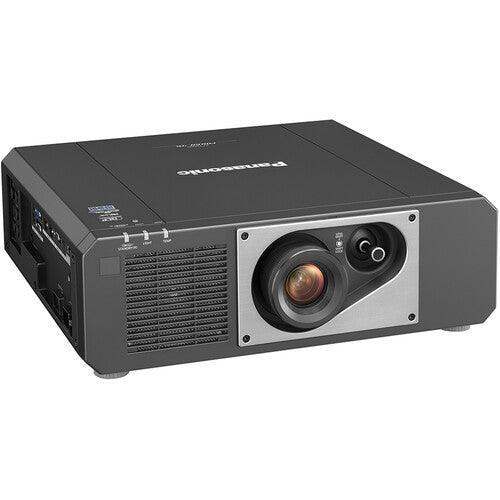

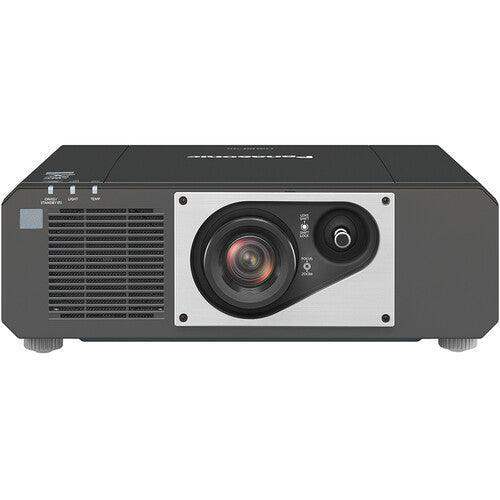

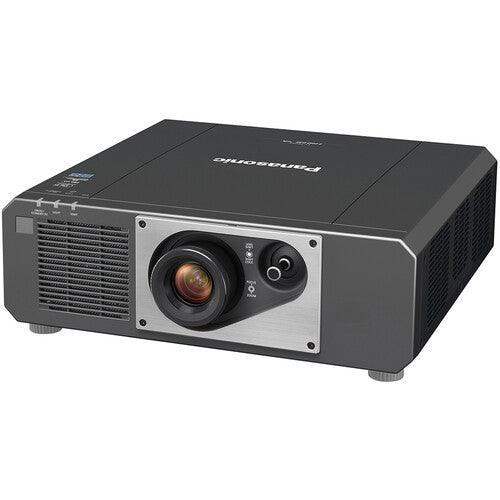

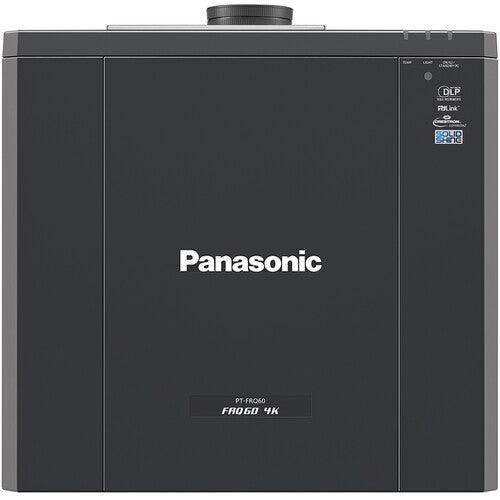

Panasonic PT-FRQ60BU7 6,000 Lumens, 1DLP, 4K (3840 x 2160 pixels) (With Quad Pixel Drive) laser projector, CEC compatibility (Black)

Product Overview

The Panasonic PT-FRQ60BU7 is a 6,000-lumen 4K UHD laser projector built for permanent commercial installations where image quality and uptime both matter. Its 1-chip DLP engine pairs a laser phosphor light source with Panasonic Quad Pixel Drive to render 3840 x 2160 4K UHD images, making it a strong fit for conference rooms, auditoriums, and large-venue digital signage. Filter-free cooling and a sealed optical block support continuous duty cycles, and 4K Digital Link transports uncompressed 4K over a single cable for clean rack-mount and remote-source layouts.

Product Description

Designed as a commercial-grade large-venue projector, the PT-FRQ60BU7 combines a laser light source rated for roughly 20,000 hours of maintenance-free operation with practical installation tools for AV integrators. Joystick-controlled vertical and horizontal lens shift, manual 2x optical zoom, and a 1.46–2.93:1 throw ratio give designers flexibility to place the projector in tight ceiling or rear-throw positions while still filling screens from 40 to 300 inches. Panasonic Free Grid geometry correction lets technicians align images on curved or irregular surfaces directly from the remote, without a PC. For multi-projector walls and synchronized signage, 4K Digital Link distribution, projector cloning to as many as 99 units, and multi-unit brightness and color calibration streamline rollout and ongoing management. Buyers comparing brightness tiers can step down to the 4K UHD PT-FRQ50BU7, choose the WUXGA PT-FRZ60BU7 at the same brightness, or move to the higher-output 3LCD PT-VMZ71U7 for very large rooms.

Key Features

• 6,000-Lumen Laser Light Source — Delivers consistent brightness in well-lit conference rooms and large venues without lamp replacement.
• 4K UHD via Quad Pixel Drive — A 1-chip 0.65" DLP device with Quad Pixel Drive outputs 3840 x 2160 resolution for sharp text and detailed signage content.
• Filter-Free, Sealed Optical Block — Head-pipe cooling and a dust-resistant optical engine support approximately 20,000 hours of maintenance-free operation.
• 4K Digital Link Transport — Carries uncompressed 4K/60p video and control over a single CAT 5e or higher run up to 164 feet, simplifying source-to-projector cabling.
• Joystick Lens Shift and 2x Zoom — Vertical and horizontal lens shift with manual 2x optical zoom give installers placement flexibility across ceiling and rear-throw mounts.
• Free Grid Geometry Correction — On-screen grid adjustment corrects distortion on irregular surfaces directly from the remote, no computer required.
• Failover Laser Redundancy — A multi-laser drive engine limits brightness loss if a single diode fails, protecting mission-critical presentations.
• Multi-Unit Calibration and Cloning — Sensor-based brightness and color matching plus settings cloning to up to 99 units speed multi-projector deployments.

Typical Applications

• Conference Room — High brightness keeps 4K content readable in rooms with significant ambient light.
• Auditorium — Lens shift, 2x zoom, and a 300-inch maximum image suit large seating areas.
• House of Worship — Filter-free 24/7 operation and Free Grid alignment support long services on non-flat surfaces.
• Commercial Meeting Space — 4K Digital Link cabling keeps source equipment in the rack and out of the room.
• Multi-Purpose Room — Flexible throw range and geometry correction adapt to changing setups and screen sizes.

Technical Specifications

Specifications sourced from Panasonic / vendor data. HDR support and integrated audio output level require manual review against the current Panasonic PT-FRQ60 spec sheet.

Frequently Asked Questions

Does the PT-FRQ60BU7 include a lens?
Yes. Unlike Panasonic's large-venue 3-chip models, the PT-FRQ60BU7 ships with a fixed integrated zoom lens (1.46–2.93:1), so no separate lens purchase is required for standard installations.

Can it transmit 4K over a single cable for rack-mounted sources?
Yes. 4K Digital Link carries uncompressed 4K/60p video and control over one CAT 5e or higher run up to 164 feet, which keeps source devices in an equipment rack away from the projector.

Is it rated for continuous, around-the-clock operation?
The laser light source and filter-free, sealed optical engine are designed for 24/7 duty in signage and exhibit environments, with roughly 20,000 hours of maintenance-free operation.

How does it support multi-projector installations?
It offers sensor-based multi-unit brightness and color calibration plus settings cloning to as many as 99 projectors, simplifying uniform large-scale rollouts.

What warranty applies?
Warranty terms follow Panasonic's current commercial projector policy; confirm coverage and any extended-warranty options with Creation Networks before purchase.
