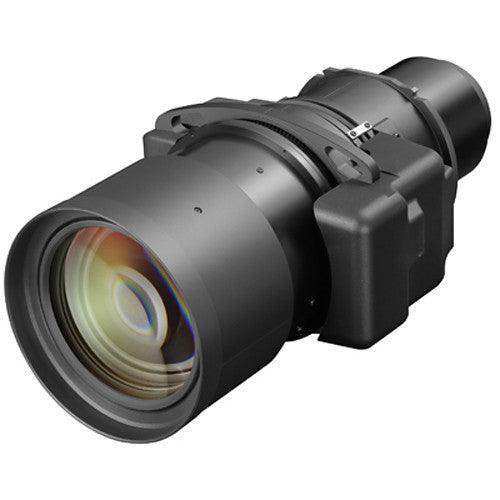

Panasonic ET-EMT750 2.10 – 4.14:1 Zoom lens for PT-MZ16K/MZ13K/MZ10K LCD laser projectors

Product Overview

The Panasonic ET-EMT750 is a long-throw projector zoom lens for the PT-MZ16K, PT-MZ13K, and PT-MZ10K commercial LCD laser projectors. With a 2.10–4.14:1 throw ratio (16:10), this PT-MZ16K zoom lens lets integrators place a high-brightness projector well back from the screen in deep rooms. It is the right optic for large-venue installs where the projection booth or rear ceiling mount sits far from the image. The lens covers the mid-to-long throw range within the ET-EM interchangeable lens lineup for these projectors.

Product Description

Built for Panasonic's 10,000-to-16,000-lumen class PT-MZ16K/MZ13K/MZ10K LCD laser projectors, the ET-EMT750 varies projection distance by adjusting focal length across a 46–90.5mm range at an f/1.82–2.53 aperture. The throw ratio is 2.10–4.14:1 in 16:10, 2.10–4.15:1 in 16:9, and 2.50–4.97:1 in 4:3, making it suited to auditoriums, houses of worship, and large meeting spaces where the projector is mounted at the back of the room. Selecting the correct lens is central to a clean install: match the throw ratio to your room depth and screen width before ordering. For other throw ranges on the same projectors, compare the longer-throw ET-EMT850, the mid-throw ET-EMS650, and the shorter-throw ET-EMW500.

Key Features

• Dedicated PT-MZ16K/MZ13K/MZ10K Fit — Engineered specifically for Panasonic's PT-MZ16KL, MZ13KL, and MZ10KL LCD laser projectors.
• Long-Throw Zoom Range — A 2.10–4.14:1 throw ratio (16:10) places the projector well back from the screen in deep rooms.
• Variable Focal Length — 46–90.5mm focal range adjusts projection distance without moving the projector.
• Wide Aperture — f/1.82–2.53 maintains light throughput across the zoom range for bright, even images.
• Multi-Aspect Coverage — Supports 16:10, 16:9, and 4:3 projection with defined throw ratios for each.

Typical Applications

• Auditorium
• House of worship
• Large conference room
• All-hands room
• Broadcast studio

Technical Specifications

Specifications sourced from Panasonic / vendor data. Powered zoom/focus and lens-memory support require manual review against the current Panasonic ET-EMT750 spec sheet.

Frequently Asked Questions

Which projectors is the ET-EMT750 compatible with? It is designed for the Panasonic PT-MZ16KL, PT-MZ13KL, and PT-MZ10KL LCD laser projectors. It is not cross-compatible with other Panasonic lens families such as the ET-D3LE (3DLP) or ET-DLE (1DLP) series.

How do I choose between the ET-EM lenses? Match the throw ratio to your room depth and screen width. The ET-EMT750 (2.10–4.14:1) covers long throws; choose the ET-EMT850 for the longest throws, or shorter-throw ET-EMW/ET-EMS lenses when the projector sits closer to the screen.

Can the lens be swapped in the field? Panasonic's PT-MZ-series projectors use interchangeable lenses, so the optic can be changed during installation or a later refit. Follow Panasonic's lens installation and registration procedure for the projector.

What warranty and support apply? The lens is covered under Panasonic's applicable accessory/Pro AV warranty; terms vary. Contact Creation Networks for current warranty details and compatibility confirmation for your exact projector model.
