Panasonic ET-ELW21 0.8 :1 fixed zoom lens for PT-MZ880/MZ770/MZ670 Series, PT-EZ770 Series, PT-EZ580 Series and PT-EZ570 Series projectors

Product Overview

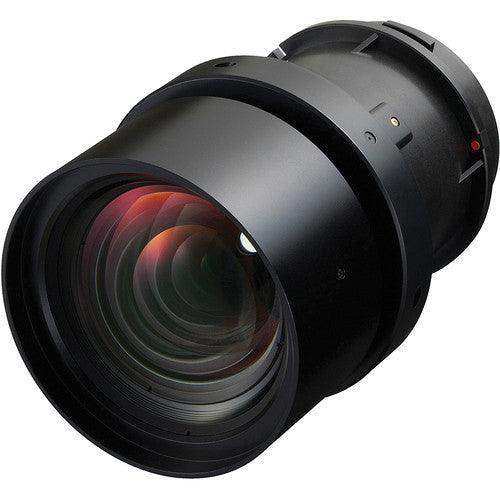

The Panasonic ET-ELW21 is a 0.8:1 fixed short-throw lens for compatible Panasonic commercial projectors. Its short throw ratio places a large image on screen from a very close projector-to-screen distance, which makes it well suited to tight rooms and rear-projection cavities where mounting depth is limited. As a factory Panasonic optical assembly, this short-throw projector lens is matched to the lens mount and engine of its supported PT-MZ and PT-EZ series projectors. It is a fixed-focus design intended for permanent installations with a set geometry.

Product Description

The ET-ELW21 delivers a 0.8:1 throw with an f/2 aperture and a 13.05mm focal length in a compact ø4.3 x 6.5-inch barrel weighing about 2.4 pounds. Panasonic notes the lens is well suited to rear projection, where a short throw lets the projector sit close behind the screen in a shallow cavity. Because it is interchangeable, AV designers can re-lens a compatible projector for a short-throw or rear-projection room rather than buying a new projector. For longer throw distances on the same projector families, compare the near-standard Panasonic ET-ELW20 (1.3–1.7:1) and the long-throw Panasonic ET-ELT22 (2.7–4.5:1) and ET-ELT23 (4.4–7.1:1).

Key Features

• 0.8:1 Short Throw — Places a large image from a very short projector-to-screen distance.
• Fixed-Focus Design — Optimized for permanent installs with a set screen geometry.
• Rear-Projection Ready — Short throw lets the projector sit close behind the screen in shallow cavities.
• f/2 Aperture, 13.05mm Focal Length — Compact wide-angle optics matched to its supported projectors.
• Interchangeable Lens Mount — Installs into the projector's lens bayonet for field-replaceable optics.
• Compact, Lightweight Barrel — About 2.4 lb in a ø4.3 x 6.5-inch body for low added mount load.

Typical Applications

• Multi-purpose room — Large image in shallow rooms where the projector must sit close to the screen.
• House of worship — Rear-projection setups in shallow cavities behind the screen.
• Broadcast studio — Short-throw rear projection for set backdrops and on-set displays.
• Conference room — Front short-throw projection where mounting depth is limited.

Technical Specifications

Specifications sourced from Panasonic / vendor data. The exact projector compatibility list and lens-shift behavior require manual review against the current Panasonic ET-ELW21 spec sheet and lens compatibility chart, as prior vendor copy referenced an older projector set.

Frequently Asked Questions

Which projectors does the ET-ELW21 fit? It is designed for supported Panasonic PT-MZ and PT-EZ series commercial projectors. Confirm your exact projector model against Panasonic's current lens compatibility chart before ordering.

Is this a zoom or fixed lens? It is a fixed-focus short-throw lens with a 0.8:1 throw ratio, optimized for installations with a set screen geometry.

Is it suitable for rear projection? Yes. Panasonic notes the lens is well suited to rear projection, where the short throw lets the projector sit close behind the screen in a shallow cavity.

How does it compare to the ELW20 and ELT lenses? The ET-ELW21 has the shortest throw (0.8:1). The ET-ELW20 (1.3–1.7:1), ET-ELT22 (2.7–4.5:1), and ET-ELT23 (4.4–7.1:1) cover progressively longer distances. Choose by projector-to-screen distance and target image size.

Is warranty and support available through Creation Networks? Yes. This is a genuine Panasonic optical accessory; contact Creation Networks for warranty terms, availability, and integration support.
