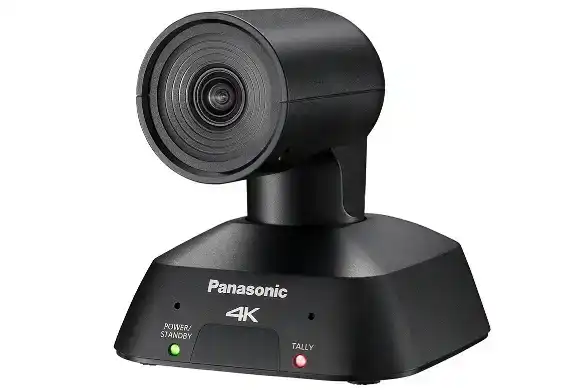

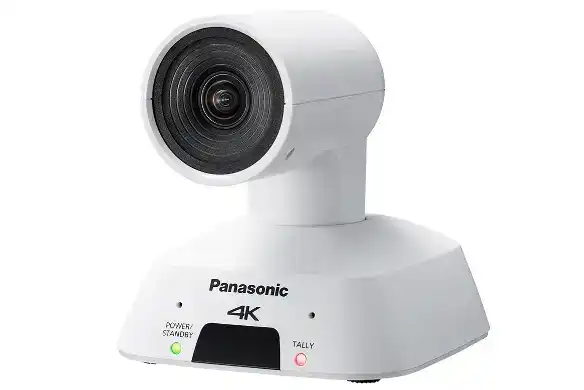

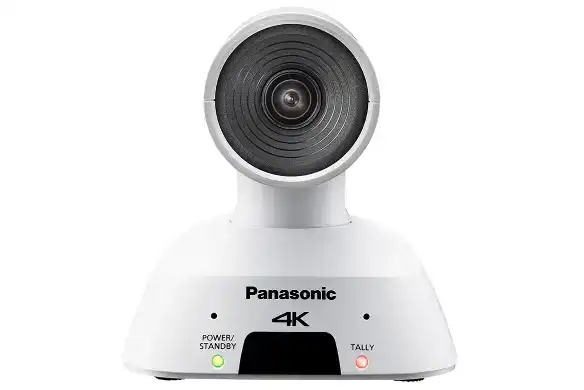

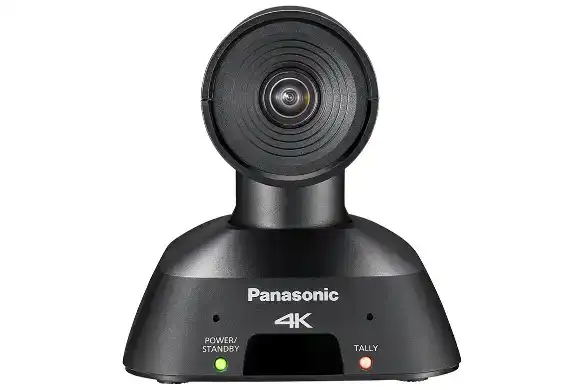

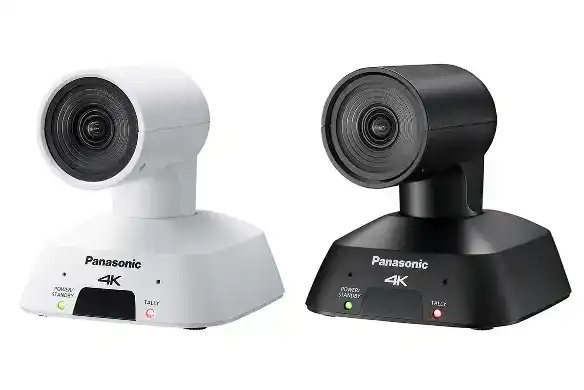

Panasonic AW-UE4 Wide Angle 4K PTZ Camera with IP Streaming

Product Overview

The Panasonic AW-UE4 is a compact wide-angle 4K PTZ camera built for huddle rooms, small conference rooms, and live IP streaming. Its 111° ultra-wide field of view captures an entire small space from a single fixed mount, while HDMI, IP, and USB outputs let it drop into conferencing, recording, and production workflows. With PoE or USB power and a built-in microphone, this 4K conferencing camera simplifies cabling for AV integrators outfitting high-density rooms.

Product Description

The AW-UE4 outputs 4K/30p video through three interfaces — HDMI, LAN (IP), and USB — so a single camera can feed a room display, a network stream, and a UC platform such as a soft codec. A 1/2.5-type MOS sensor and 111° wide-angle lens frame small rooms without a second camera, and 4x digital zoom provides tighter framing when needed. Pan (±110°) and tilt (±25°) are set manually at install, making the AW-UE4 a fixed-position wide camera rather than a motorized pan-tilt unit.

Power over Ethernet allows a single cable for power and IP video, and USB power offers an alternative for desktop or cart deployments. A built-in microphone with mute supports quick huddle-room setups. For motorized pan/tilt with optical zoom, step up to the Panasonic AW-UE50 (24x optical zoom); for NDI-based professional streaming, see the Panasonic AW-UE100.

Key Features

• 111° Ultra-Wide Lens — Captures an entire huddle room or small space from one fixed camera position.
• 4K/30p Video Output — Delivers high-resolution image quality for conferencing, recording, and streaming.
• Three Output Interfaces — HDMI, IP (LAN), and USB let one camera serve displays, network streams, and UC platforms.
• PoE or USB Power — Single-cable PoE simplifies install; USB power suits desktop and cart setups.
• 1/2.5-Type MOS Sensor — Compact imager sized for fixed wide-angle capture.
• 4x Digital Zoom — Provides tighter framing within the wide field of view.
• Built-In Microphone with Mute — Adds quick audio pickup for simple huddle-room deployments.
• Manual Pan/Tilt Positioning — ±110° pan and ±25° tilt are set at install for a fixed, repeatable framing.

Typical Applications

• Huddle Room — 111° lens frames the whole table from one wall-mounted camera.
• Conference Room — USB and IP outputs feed soft codecs and room systems for video calls.
• Broadcast Studio — Compact fixed angle for e-sports and small-set production via IP or HDMI.
• Training Room — Wide capture and PoE cabling support quick, low-profile installs.

Technical Specifications

Specifications sourced from Panasonic / vendor data and noted by the manufacturer as preliminary. Supported frame rates beyond 4K/30p, IP streaming protocols, low-light performance, and weight require manual review against the current Panasonic AW-UE4 spec sheet.

Frequently Asked Questions

Is the AW-UE4 a motorized PTZ camera?
No. Pan (±110°) and tilt (±25°) are set manually at installation. It functions as a fixed wide-angle 4K camera with digital zoom rather than a remotely steered PTZ head.

Can it work over a single cable?
Yes. With PoE, one Ethernet cable provides both power and IP video. USB power is also supported for desktop or cart use.

Will it integrate with video conferencing platforms?
The USB output supports UC soft codecs as a camera source, while HDMI and IP outputs feed room displays and network streams. Confirm platform compatibility for your specific deployment.

Does it include a microphone?
Yes, a built-in microphone with a mute function is included for simple huddle-room audio pickup.

What support and warranty apply?
The camera carries Panasonic's Pro AV warranty. Contact Creation Networks for current terms, extended coverage, and integration guidance.
