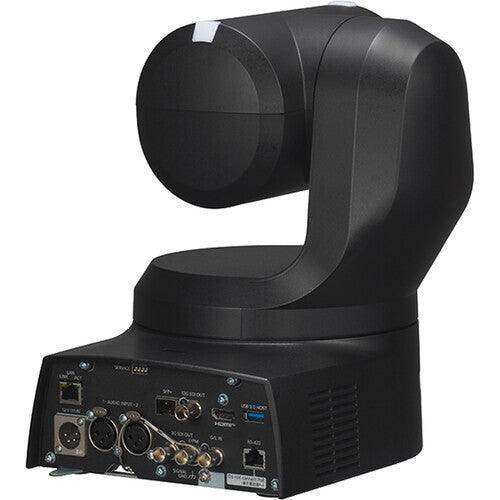

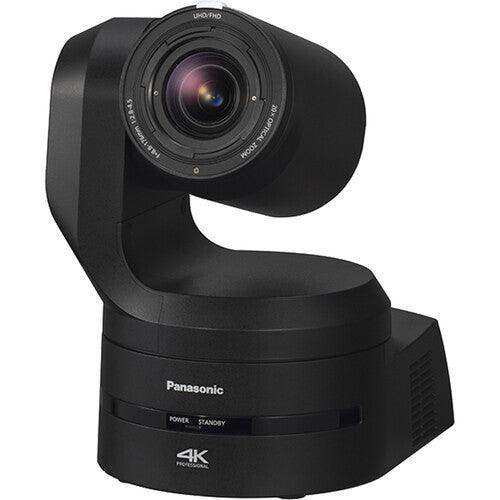

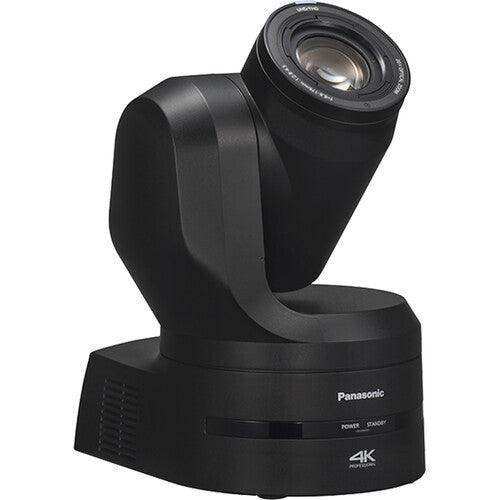

Panasonic AW-UE160W/K Platinum UHD 4K 20x PTZ Camera

Panasonic SKU: AW-UE160KPJ
No reviews
Model: Black
Price:
$14,495.00 $14,995.00

Description

Capture optimal 4K images, even in the most challenging lighting conditions with the AW-UE160 UHD 4K 20x PTZ Camera from Panasonic. This pro PTZ camera outputs up to UHD 4K 60p over a variety of 4K connections including 12G-SDI, HDMI, optical fiber, and IP streaming. It features a large 1" type MOS sensor, a 20x optical zoom with a wide 75.1° angle-of-view, and PoE++ compatibility.

A 2x high-speed mode enables smooth slow-motion capture, and a built-in OLPF (optical low-pass filter) reduces any moiré effects when shooting against an LED wall or in similar situation. Additional camera features include PDAF (phase-detection autofocus), HDR/HLG compatibility, front and rear tally lights, 1/4, 1/16, and 1/64 ND filters, and live streaming via RTMP.

 4K 1" MOS Sensor The AW-UE160 features a newly developed 4K 1" MOS sensor that offers the highest sensitivity of Panasonic's entire PTZ lineup. This sensitivity enables you to easily capture clear images even in the most challenging lighting conditions, including concert venues and houses of worship. Low-Pass Filter A new optical low-pass filter reduces moiré effects, producing clearer picture quality when shooting against an LED wall, which is especially important for staging or worship environments. High-Speed Frame Rates 2x high-speed capture enables you to create smooth slow-motion video suitable for sports, Esports, and other dynamic events. Phase Detection AF PDAF (phase-detection autofocus) technology enables you to focus on moving subjects with high speed and precision.
  • 4K 1" Type 9.6MP MOS Sensor
  • Up to UHD 4K60 & 1080 Simultaneous Out
  • 12G-SDI, HDMI, Fiber & IP Transmission
  • Improved Phase-Detection Autofocus
  • 20x Optical Zoom, 2x High-Speed Capture
  • HDR Mode with HLG/BT.2020 Compatibility
  • Wide 75.1° Horizontal Viewing Angle
  • Up to 180°/Sec Pan/Tilt Speed
  • Live Stream to Platforms via RTMP
  • 2 x XLR Audio In, Front/Rear Tally Lamps

Panasonic AW-UE160 Specs

 Imaging
Image Sensor 1"-Type MOS
Horizontal Resolution (TV Lines) 1600 TV Lines
Sensor Resolution Effective: 9.62 Megapixel
Built-In ND Filter Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
Low Pass Filter Optical
Focus Control Autofocus
Manual Focus
Exposure Control
Shutter Speed 1/2000 to 1/48 Second
Gain 0 to 36 dB
Precise Scan Rate Control Yes
Sensitivity f/11 at 2000 lux (Normal)
Minimum Illumination 2 Lux
Flip / Mirror Support Image Flip
White Balance 2000 to 15,000K
Lens
Focal Length 8.8 to 176mm (35mm Equivalent Focal Length: 24.5 to 490mm)
Optical Zoom Ratio 20x
Field of View Horizontal: 75.1 to 4°
Vertical: 46.7 to 2.3°
Diagonal: 82.8 to 4.6°
Maximum Aperture f/2.8 to 4.5
Video Capture
External Recording Modes SDI/BNC / HDMI / RJ45
UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps
HD (1920 x 1080p) at 23.98/24.00/25/29.97/50/59.94/60.00 fps
HD (1920 x 1080i) at 50/59.94 fps
1280 x 720 at 50/59.94 fps
Broadcast Output NTSC/PAL
Gamma Curve HDR-HLG, Normal 1
IP Streaming NDI, NDI|HX
x
Control
Move Speed Pan: 0.08 to 1800°/sec
Tilt: 0.08 to 1800°/sec
Movement Range Pan: 350° (-175 to 175°)
Tilt: 240° (-30 to 210°)
Tally Light Yes
Supported Control Protocols IP
RS-422
Max Cable Length 328.1' / 100 m (Cat 5e, Cat 6)
Interface
Video I/O 1 x BNC (12G-SDI) Output
2 x BNC (3G-SDI) Output
1 x HDMI 2.0 Output
Audio I/O 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input
Other I/O 1 x RJ45 (LAN) Control
1 x RJ45 (RS-422)
Expansion Slots 1 x SFP+ Slot
Power
PoE Support PoE++ 802.3bt
Power I/O 1 x XLR 4-Pin (12VDC at 1.5 A) Input
Power Consumption 10.8 to 13.2 VDC at 5 A
PoE: 42 to 57 VDC
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 122°F / -20 to 50°C
Operating Humidity 20 to 90%
General
Environmental Protection None
OS Compatibility Android
Chrome OS
Windows 10
macOS 10.13 to 15
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility
Sound Level NC35 (at Full Speed)
Dimensions (W x H x D) 10.9 x 9.4 x 8.4" / 27.7 x 24 x 21.3 cm (Without Protrusions, Bracket)
Weight 10.1 lb / 4.6 kg
Packaging Info
Package Weight 16.035 lb
Box Dimensions (LxWxH) 19.2 x 16 x 15"
