Sound Control Technologies RC6-P15-K – RemoteCam6 Panasonic AW-UE145 Project Pack

Product Overview

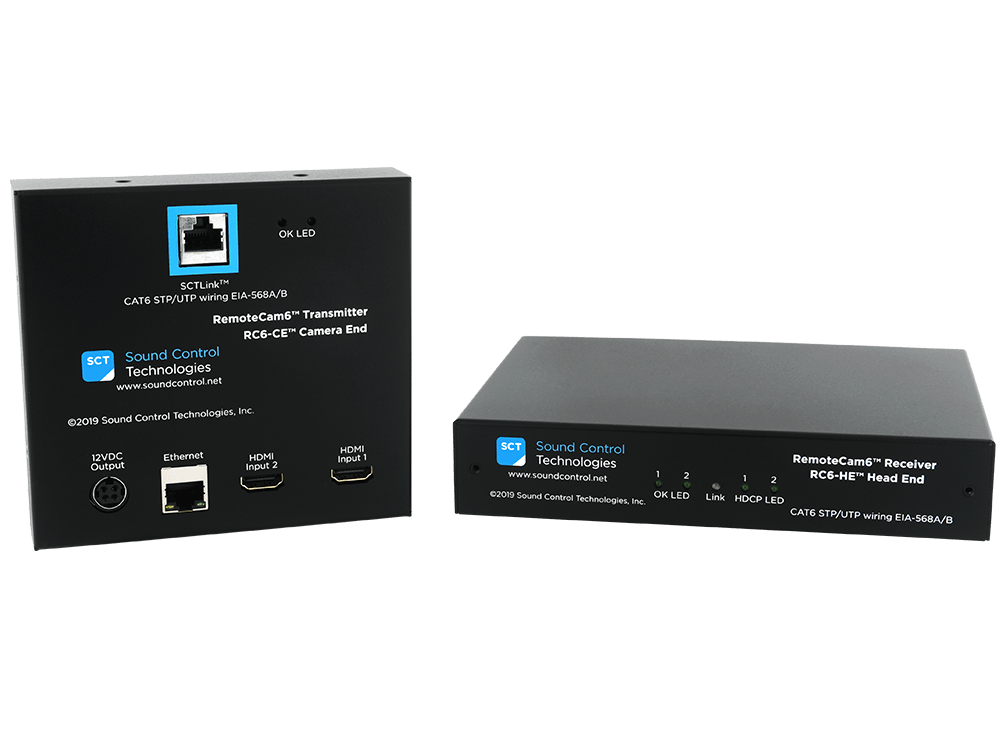

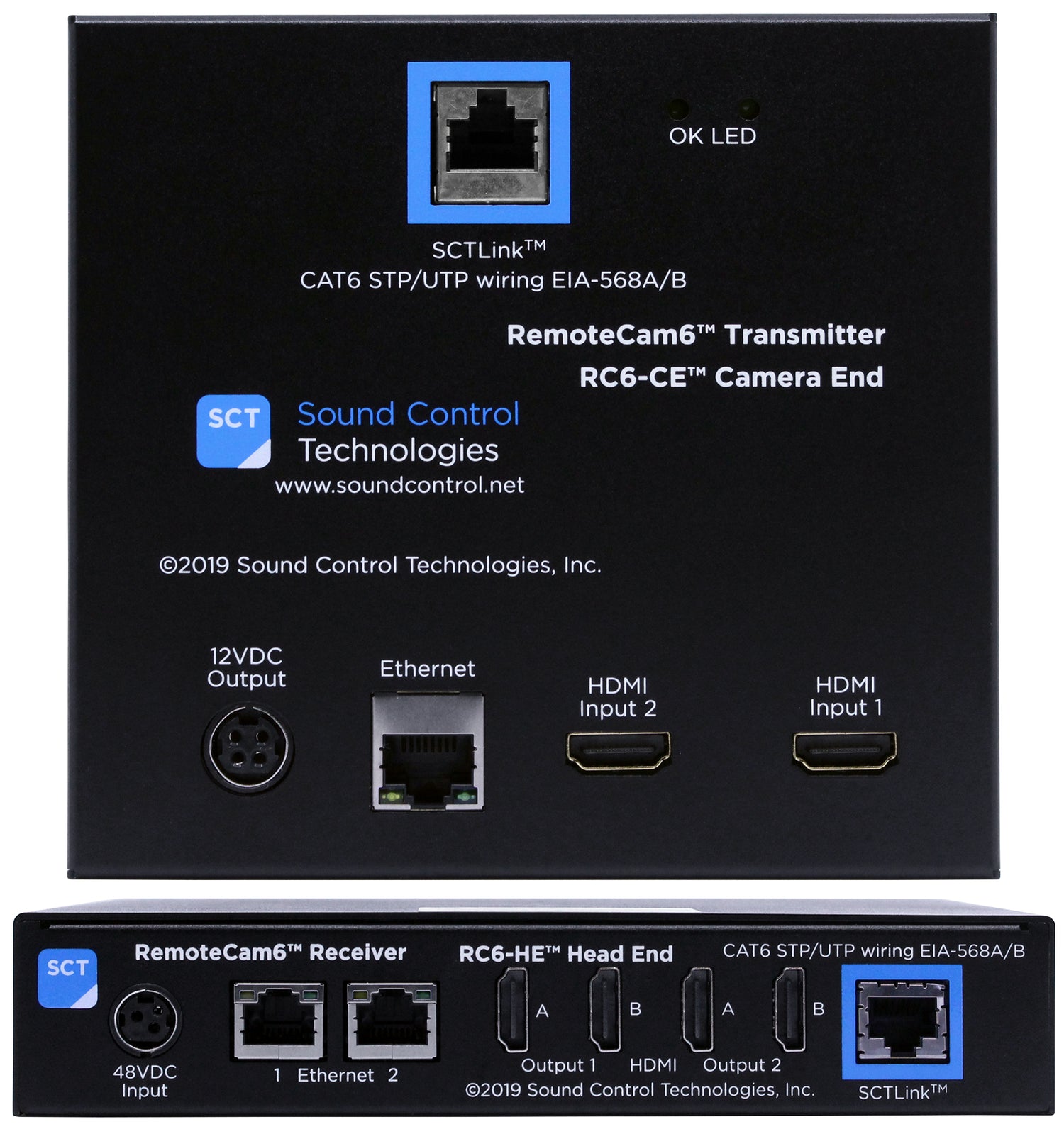

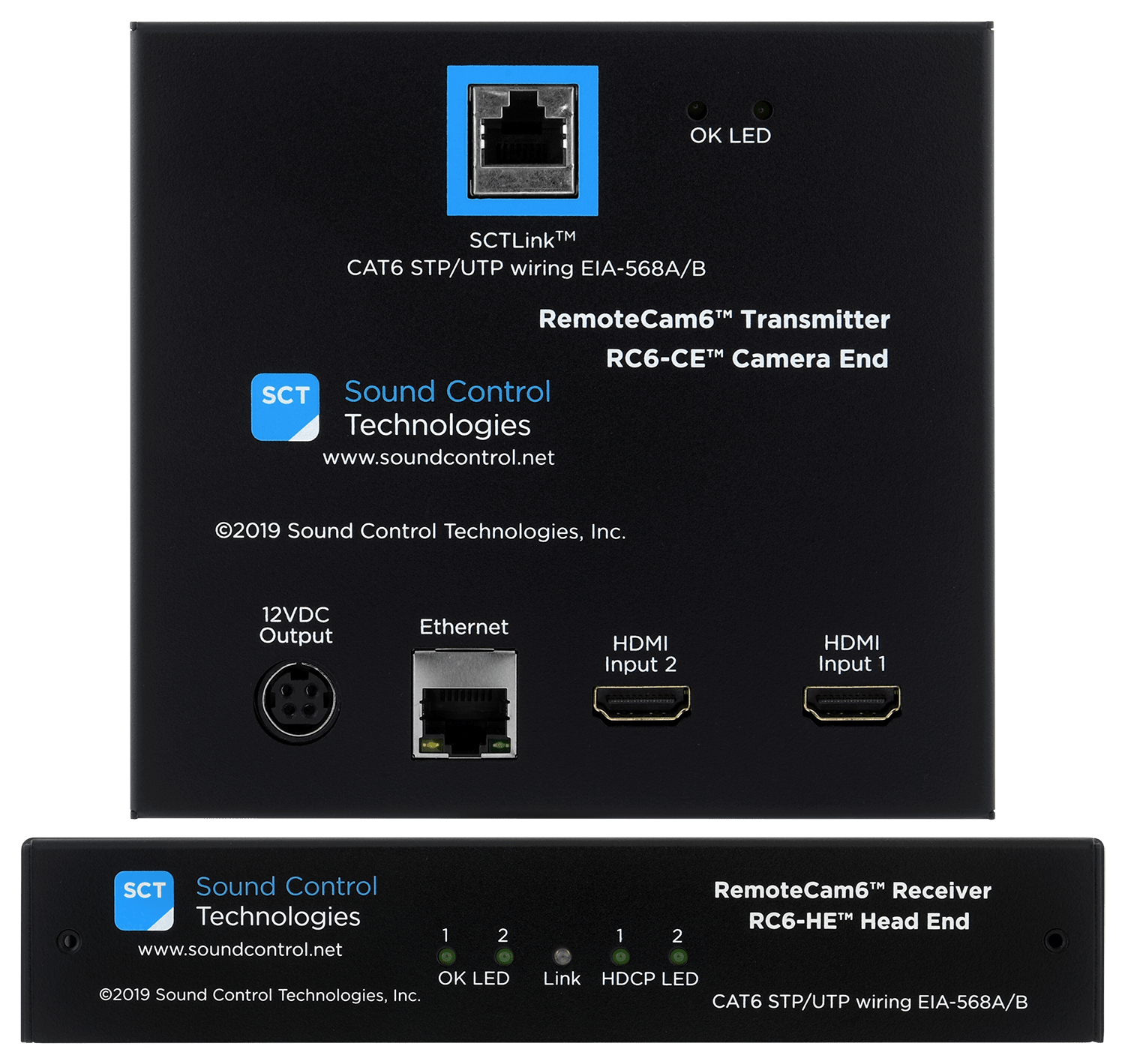

The Sound Control Technologies RC6-P15-K is a complete project pack for extending Panasonic AW-UE145 and AW-HE145 PTZ cameras over a single CAT cable to a rack-mounted codec or control system. Built for commercial AV integrators, this kit pairs the RemoteCam6 extension system with the RC-CUBBY-BRC camera-end cubby for a clean, professionally installed solution. The system carries dual HDMI, IP control, 12V camera power, and HDMI DA output, maintaining full PTZ camera control at distances beyond direct cable runs.

Product Description

The RC6-P15-K project pack combines the RemoteCam6 Panasonic camera extension kit with the RC-CUBBY-BRC cubby accessory, providing a complete installation package for AW-UE145 and AW-HE145 PTZ camera deployments. The RemoteCam6 system extends dual HDMI video signals, IP-based PTZ control, and 12V camera power over one structured CAT cable, eliminating the need for multiple discrete cable runs. The RC-RKM rack shelf is included to mount the head-end module in a standard equipment rack alongside a compatible codec or control processor. IP control passthrough allows full PTZ operation—pan, tilt, zoom, and preset recall—from any compatible IP control system. The RC-CUBBY-BRC provides cable management at the camera end for large-format PTZ cameras. An HDMI DA output at the head end supports a secondary display or program monitor. This kit is suited for permanent installation in houses of worship, auditoriums, boardrooms, and broadcast studios where Panasonic PTZ cameras are deployed at distance from the rack. Country of origin: USA/Taiwan.

Key Features

• Dual HDMI Extension — Extends two HDMI signals from the Panasonic PTZ camera to the equipment rack over one CAT cable.
• 12V Camera Power — Delivers power to the AW-UE145 or AW-HE145 over the CAT run, eliminating a local power supply at the camera.
• IP PTZ Control Passthrough — Passes full IP PTZ control, preserving pan, tilt, zoom, and preset functions for the Panasonic camera.
• RC-CUBBY-BRC Included — Large-camera cable management cubby included for a clean camera-end installation with large-format PTZ cameras.
• RC-RKM Rack Shelf Included — 2RU rack shelf mounts the head-end module in a standard equipment rack.
• HDMI DA Output — Secondary HDMI output at the rack end for a program monitor or additional display.
• Single CAT Cable Infrastructure — All signals over one structured CAT cable, simplifying installation and reducing conduit fill.
• Commercial-Grade Rated — Designed for permanent installation in houses of worship, auditoriums, boardrooms, and broadcast studios.

Typical Applications

• House of worship PTZ camera extension with Panasonic AW-UE145 or AW-HE145
• Auditorium and broadcast studio PTZ camera deployments
• Boardroom and conference room Panasonic camera installations with remote rack
• Training rooms and multi-purpose spaces requiring PTZ cameras at extended distances

Technical Specifications

Frequently Asked Questions

What is the difference between RC6-P15 and RC6-P15-K?

The RC6-P15-K adds the RC-CUBBY-BRC large-camera cable management cubby to the base RC6-P15 extension kit. Both include the RC-RKM rack shelf.

Is the RC6-P15-K compatible with both AW-UE145 and AW-HE145 cameras?

Yes. The RC6-P15 extension system is designed for both Panasonic AW-UE145 and AW-HE145 PTZ cameras.

Does the system maintain full PTZ control over the CAT cable run?

Yes. IP control passthrough preserves all PTZ functions including pan, tilt, zoom, and preset recall.

What warranty applies to the RC6-P15-K?

Contact Creation Networks for current Sound Control Technologies warranty terms for the RC6-P15-K.
