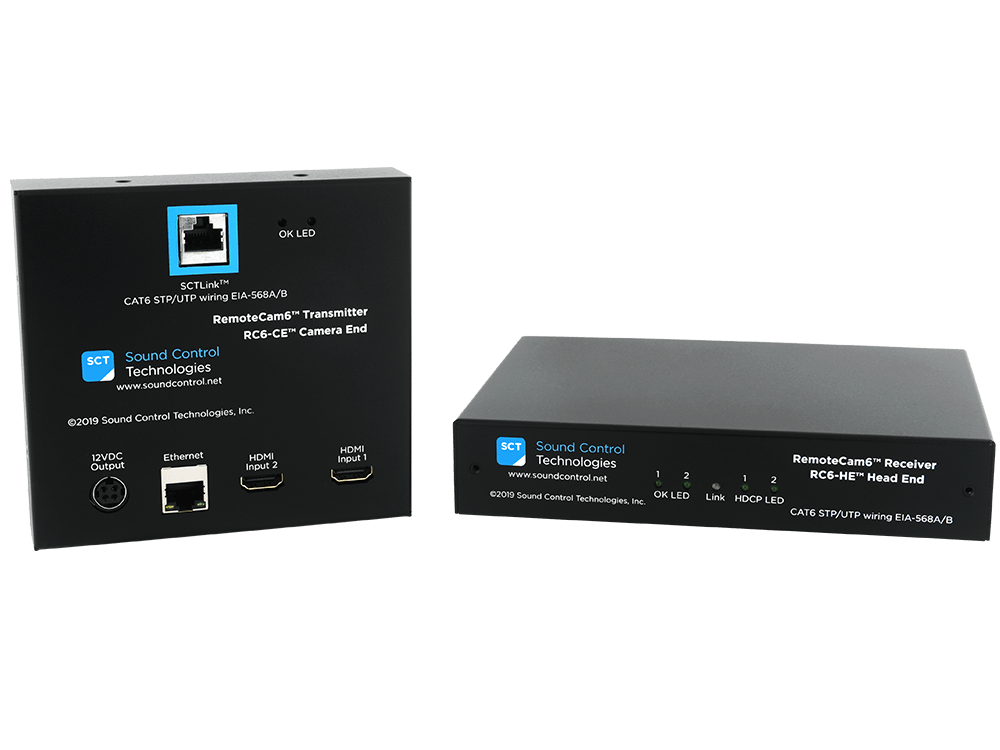

Sound Control Technologies RC6-P15 – RemoteCam6 Panasonic AW-UE145 Extension Kit

Product Overview

The Sound Control Technologies RC6-P15 extends Panasonic AW-UE145 and AW-HE145 PTZ cameras over a single CAT cable to a rack-mounted control system or codec. Designed for commercial AV integrators working with Panasonic professional PTZ cameras, the RC6-P15 carries dual HDMI video, IP PTZ control, 12V camera power, and HDMI DA output in one structured-cabling solution. The included RC-RKM rack shelf positions the head-end module in a standard equipment rack for clean, permanent installation.

Product Description

The RC6-P15 RemoteCam6 extension kit provides a single-cable solution for extending Panasonic AW-UE145 and AW-HE145 PTZ cameras to a remote equipment rack. The system carries dual HDMI video, IP-based PTZ control, and 12V camera power over one structured CAT cable, replacing multiple discrete runs with a single infrastructure connection. IP control passthrough preserves full PTZ operation including pan, tilt, zoom, and preset recall from any compatible IP control system or codec. The RC-RKM 2RU rack shelf is included to mount the head-end module in a standard rack. An HDMI DA output at the head end supports a secondary display or program monitor. The RC6-P15 is suited for houses of worship, auditoriums, broadcast studios, and boardrooms where Panasonic PTZ cameras are installed at distance from the equipment room. For installations requiring the RC-CUBBY-BRC camera-end cable management cubby, see the RC6-P15-K project pack. Country of origin: USA/Taiwan.

Key Features

• Dual HDMI Extension — Two HDMI channels from the Panasonic PTZ camera to the equipment rack over one CAT cable.
• 12V Camera Power — Delivers power to the AW-UE145 or AW-HE145 over the CAT run, no local power supply needed at the camera.
• IP PTZ Control Passthrough — Full pan, tilt, zoom, and preset control maintained over the CAT extension.
• RC-RKM Rack Shelf Included — 2RU rack shelf for mounting the head-end module in a standard equipment rack.
• HDMI DA Output — Secondary HDMI at the head end for a program monitor or additional display.
• Single CAT Cable Run — Reduces all camera signals to one structured CAT cable, simplifying installation.
• Commercial-Grade — Rated for permanent installation in houses of worship, auditoriums, and boardrooms.

Typical Applications

• House of worship PTZ camera deployments with Panasonic AW-UE145 or AW-HE145
• Auditorium and broadcast studio Panasonic camera installations
• Boardroom and conference room PTZ camera extension with remote equipment rack
• Training rooms and multi-purpose spaces requiring Panasonic PTZ at extended distances

Technical Specifications

Frequently Asked Questions

Does the RC6-P15 include a camera-end cubby?

No. The base RC6-P15 includes the extension kit and RC-RKM rack shelf. For installations needing the RC-CUBBY-BRC, order the RC6-P15-K project pack.

Is the RC6-P15 compatible with both AW-UE145 and AW-HE145?

Yes. The RC6-P15 extension system supports both Panasonic AW-UE145 and AW-HE145 PTZ cameras.

What warranty applies?

Contact Creation Networks for current Sound Control Technologies warranty terms for the RC6-P15.
