Product Overview

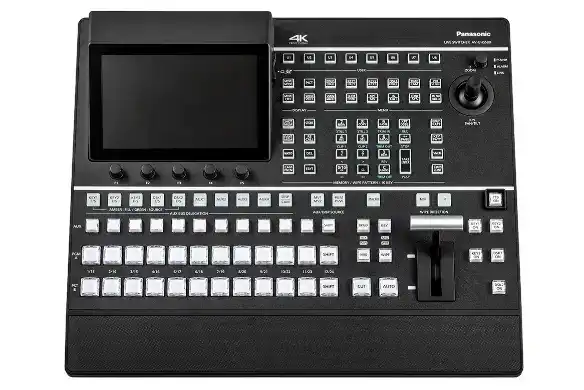

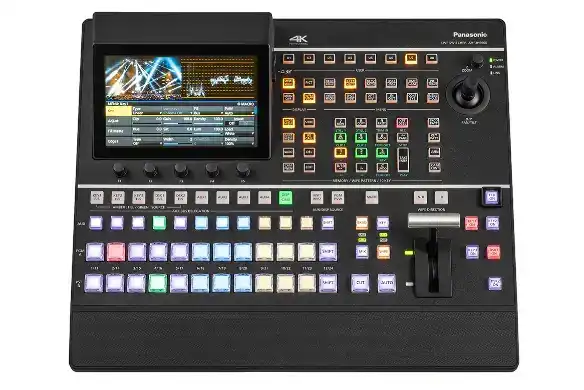

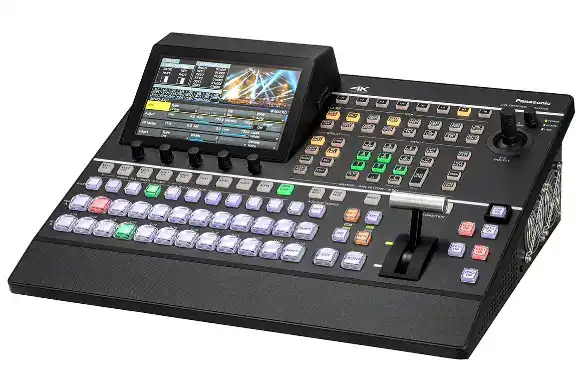

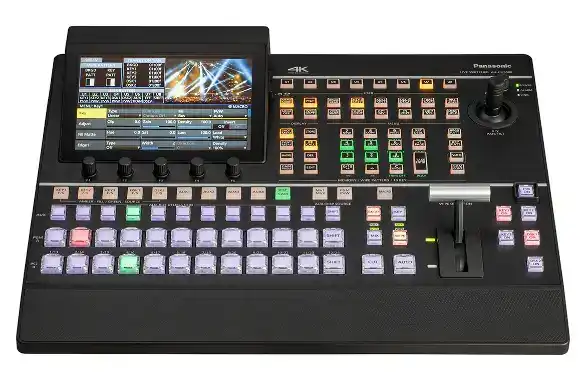

The Panasonic AV-UHS500 is a compact 4K live production switcher built for event staging, corporate productions, broadcast studios, OB vans and higher-education lecture capture. It supports 12G-SDI as standard along with HDMI input, so a single coaxial run carries 4K video without external converters. With multi-format 4K/3G/HD handling and built-in conversion, the AV-UHS500 is a practical 4K video switcher for technical directors who need broadcast-grade switching in a rack-mountable chassis.
Product Description
The AV-UHS500 maintains the same input and output count in 4K as in HD, and five optional interface boards let integrators scale connectivity for camera-heavy events. The unit carries five keyers, including two channels of chroma key and two channels of picture-in-picture, plus built-in up/down conversion, HDR/SDR conversion and ITU-R BT.2020/BT.709 conversion that remove the need for separate conversion boxes. Shot, event and macro memories speed live operation, while two MultiViewer outputs display up to 16 split sources. An integrated PTZ control function operates Panasonic 4K/HD integrated cameras directly from the switcher, pairing well with models such as the AW-UE160, AW-UE150A and AW-UE100. For larger IT/IP-based production cores, the catalog also carries the Panasonic KAIROS KC200 Core platform.
Key Features
- 12G-SDI Standard — Carries 4K over a single coaxial cable for simpler cabling and setup.
- 4K/3G/HD Multi-Format — Maintains HD input/output counts even when operating in 4K.
- Five Keyers — Includes two chroma-key channels and two picture-in-picture channels for layered production.
- Built-In Conversion — Up/down, HDR/SDR and BT.2020/BT.709 conversion without external boxes.
- Integrated PTZ Control — Operates up to 16 Panasonic integrated cameras from the switcher.
- Option-Board Expandability — Five optional boards add inputs and system flexibility for large events.
- Production Memories — Shot, event and macro memories plus dual MultiViewer outputs streamline live shows.
Typical Applications
- Broadcast studio and OB/live-truck switching
- Auditorium and large event-staging productions
- Training rooms and university lecture capture
- Commercial meeting spaces and conference-hall AV
Technical Specifications
| Type | Compact 4K live production switcher, 1 M/E |
|---|---|
| SDI Interface | 12G-SDI (also 3G/HD-SDI); HDMI input |
| Signal Formats | 2160/59.94p, 50p (and 29.97p/25p/24p/23.98p with firmware); 1080/59.94p, 50p, 59.94i, 50i, PsF variants; 720/59.94p, 50p |
| Keyers | 5 total, including 2 chroma-key and 2 PinP |
| Conversion | Up/down, HDR/SDR, ITU-R BT.2020/BT.709, scaler, color correction |
| PTZ Control | 8 cameras standard, up to 16 with optional board |
| Option Boards | 5 optional interface boards available |
| Signal Processing | RGB 4:4:4 8-bit / 4:2:2 10-bit (HDMI); Y CB CR 4:2:2 10-bit |
| Storage | SDHC/SDXC memory card slot |
| LAN | 1000BASE-TX, AUTO-MDIX, RJ-45 (IP control) |
| Power Supply | AC 100 V to 240 V, 50/60 Hz; current consumption 1.5 A |
| Dimensions (W x H x D) | 440 x 170 x 360 mm (17-5/16 x 6-11/16 x 14-3/16 in), excluding protrusions |
| Weight | Approx. 7 kg (approx. 15.4 lb) |
| Operating Temperature | 0 C to 40 C (32 F to 104 F) |
Specifications sourced from Panasonic / vendor data. Firmware-dependent format support and current option-board availability require manual review against the current Panasonic AV-UHS500 spec sheet before specifying.
Competitor Comparison
| Criteria | Panasonic AV-UHS500 | Blackmagic ATEM Constellation 4K | Roland V-600UHD |
|---|---|---|---|
| SDI standard | 12G-SDI standard, single-cable 4K | 12G-SDI standard across inputs | Primarily 12G/3G-SDI and HDMI on a fixed I/O set |
| Form factor / M/E | Compact 1 RU-class chassis, 1 M/E | 2 RU multi-M/E (up to 4 M/E) | Compact 1 M/E presentation/production unit |
| Keyers | 5 keyers incl. 2 chroma key + 2 PinP | Multiple upstream/downstream keyers per M/E | 4 keyers with luma/chroma and PinP |
| Built-in conversion | Up/down, HDR/SDR, BT.2020/709 standard | Format handling present; HDR workflow more limited | Built-in scaling on every input, HDR support varies |
| Integrated PTZ control | Controls up to 16 Panasonic cameras from the panel | No native panel PTZ control; uses separate software | Camera control via external systems, not on-panel PTZ |
| Expandability | 5 optional interface boards add inputs | Fixed I/O; scale by adding units | Fixed I/O; no option-board expansion |
| Best fit | Mid-size 4K live events needing PTZ integration and conversion | Large multi-M/E studio productions | Presentation-led AV and worship with heavy scaling needs |
Frequently Asked Questions
Does the AV-UHS500 require external converters for mixed formats? No. Built-in up/down, HDR/SDR and BT.2020/BT.709 conversion handle mixed-format environments inside the switcher.
Can it control PTZ cameras directly? Yes. It controls 8 Panasonic integrated cameras as standard and up to 16 with an optional board, including pan, tilt, zoom, focus, iris and preset recall.
How do I scale inputs for a larger production? Install the optional interface boards; five boards are available to add inputs and system flexibility.
How does it integrate into a rack and control system? The chassis is rack-friendly and offers RJ-45 1000BASE-TX LAN for IP control alongside TALLY/GPI for tally and triggering.
What support and warranty apply? The unit is backed by Panasonic professional video warranty and support; confirm current terms and firmware revisions at the time of purchase.
