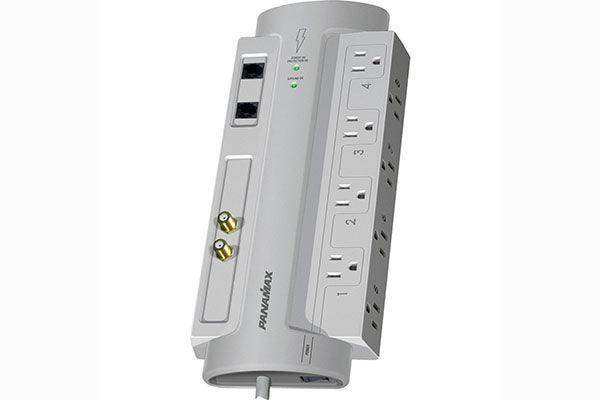

Panamax Surge Protector 8 AV - SP8-AV
Product Overview
The Panamax SP8-AV is an 8-outlet AV surge protector providing AC surge suppression alongside coaxial and telephone line signal protection on a 6-foot power cord. It is an entry-level Panamax unit suited for home theater systems that need reliable surge protection and signal line passthrough without power conditioning or AVM features.
Product Description
The SP8-AV provides eight AC outlets with spacing designed to accommodate bulky wall-wart adapters, all protected by Panamax's Protect or Disconnect circuitry at 1,125 joules and a 60,000-amp peak impulse current rating. An on/off power switch and 15-amp circuit breaker provide additional control and overcurrent protection. Coaxial F-connector input and output protect cable, satellite, or antenna lines across a 0 MHz to 2.2 GHz range with less than 0.5 dB insertion loss and a 75V clamping level. An RJ-11 telephone jack protects a single phone line pair at 260V. The 6-foot power cord includes a right-angle 45-degree offset plug for outlet-congested installations. Basic RFI/EMI filtration (45 dB at 100 kHz–1 MHz) is included. There is no AVM voltage monitoring or separate outlet bank isolation — distinguishing the SP8-AV from the M8-AV above it in the Panamax lineup. Backed by a $50,000 lifetime connected equipment protection policy when purchased from an authorized dealer such as Creation Networks.
Key Features
- 1,125-Joule Surge Protection — Protect or Disconnect circuitry; 60,000A peak impulse current; thermal fusing; <1 ns response time.
- 8 Spaced AC Outlets — Outlet spacing accommodates transformer-style wall-wart adapters without blocking adjacent plugs.
- Coaxial Signal Protection — Female F-connector; 0–2.2 GHz; 75V clamping; bidirectional; <0.5 dB insertion loss.
- Telephone Line Protection — RJ-11 in/out; 260V clamping; metallic & longitudinal suppression modes.
- On/Off Switch & 15A Circuit Breaker — Manual power control and resettable overcurrent protection for the connected load.
- 45-Degree Offset Plug — Right-angle cord plug reduces strain and fits more easily in confined outlet locations.
Technical Specifications
| Specification | Value |
|---|---|
| AC Outlets | 8 (all surge protected) |
| Single Pulse Energy Dissipation | 1,125 Joules |
| Voltage Protection Rating (UL 1449, 3,000A) | 500V |
| Peak Impulse Current | 60,000 Amps |
| Response Time | <1 ns |
| Maximum Current Rating | 15 Amps |
| Filtration Rating | 45 dB (100 kHz–1 MHz) |
| Coax Connector | Female F (gold plated) |
| Coax Frequency Range | 0 MHz–2.2 GHz |
| Coax Insertion Loss | <0.5 dB |
| Coax Clamping Level | 75V |
| Telco Connector | RJ-11 |
| Telco Wires Protected | 1 line (pins 3, 4) |
| Telco Clamping Level | 260V |
| AC Power Cord | 6 ft. (45-degree offset plug) |
| Dimensions | 12" L x 5" W x 1.75" H |
| Weight | 3.5 lbs |
| Connected Equipment Warranty | $50,000 Lifetime (authorized dealer purchase) |
