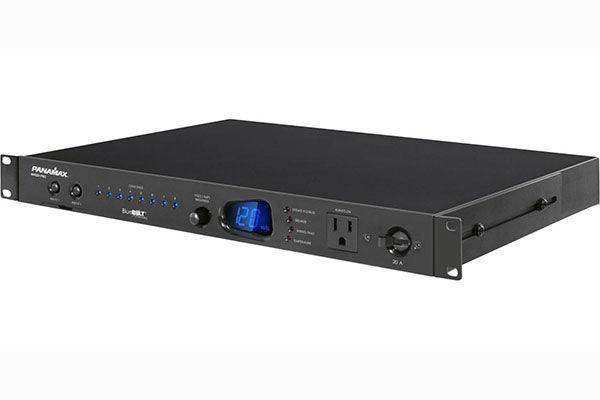

Panamax Pro Series 1 RU 20 AMP 8 BlueBOLT Programmable Outlets w/Auto Reset, 10Ft IEC Cord - M4320-PRO

Product Overview

The Panamax M4320-PRO BlueBOLT power conditioner is a 1RU, 20-amp rack-mount power conditioner with 8 individually controllable outlets and built-in BlueBOLT IP connectivity for commercial AV rack power management. Designed for AV integrators who need remote outlet control AV rack capability, the M4320-PRO enables power cycling, scheduling, and automated equipment reboot from any web browser via the BlueBOLT cloud platform. Its AVM Automatic Voltage Monitoring and LiFT Linear Filtering Technology deliver uncompromising AC protection and EMI/RFI noise filtration across all outlet banks. Currently available at a reduced price — an excellent opportunity for integrators outfitting multiple rooms.

Product Description

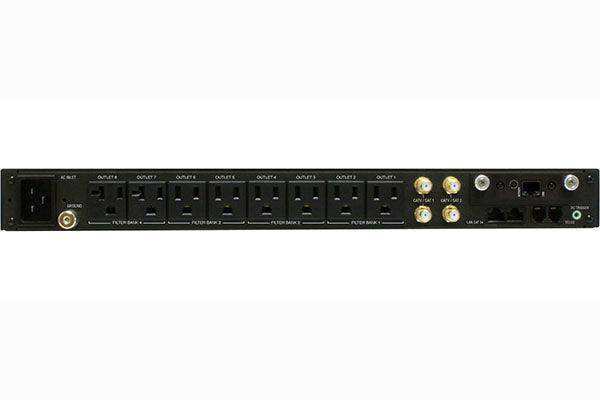

The M4320-PRO is Panamax's highest-amperage Pro Series rack power conditioner, rated at 20 amps with 8 rear-panel outlets and 1 always-on front-panel outlet (9 total). All 8 rear outlets are individually switchable via BlueBOLT, organized into four filter-isolated outlet banks: three standard LiFT-filtered banks for processors, displays, and network equipment, and one high-current bank for amplifiers and other power-hungry devices. Each bank delivers different filtration characteristics — Banks 1, 2, and 3 achieve 76 dB attenuation at 5–250 kHz, while the high-current Bank 4 provides 60 dB at 5–450 kHz — ensuring that different equipment categories receive appropriate noise rejection without impedance mismatches.

BlueBOLT IP power management is built into the M4320-PRO at no additional cost. Once connected to the facility network via standard Ethernet, the unit registers with the BlueBOLT cloud platform at mybluebolt.com, giving the integrator or facility manager browser-based control over every outlet. Outlets can be turned on or off individually, grouped into sequences, scheduled for automatic power cycling at set times, and configured to automatically reboot network devices when connectivity is lost. This IP power management AV integrator capability eliminates truck rolls for simple power resets and allows after-hours management of remote AV systems without requiring on-site staff.

The AVM circuit monitors incoming line voltage continuously. If voltage exceeds 134V or drops below 100V, the M4320-PRO executes a Protect or Disconnect response — removing power from connected equipment until the line returns to a safe range. This non-degrading protection method is distinct from standard MOV-based protectors, which lose effectiveness with each surge event. The M4320-PRO also includes a front-panel circuit breaker, 12V DC trigger input for integration with control systems, and a detachable 10-foot power cord with a 20-amp plug for direct connection to dedicated 20A circuits. Signal-side protection covers 1 LAN port, 1 telephone line, and 2 coaxial cable/satellite connections.

Key Features

• 20 Amp Capacity — Supports larger AV racks with high-draw amplifiers, displays, and processing equipment on a single conditioner.
• 8 Individually Controllable Rear Outlets — Each outlet is independently switchable via BlueBOLT, front panel buttons, or DC trigger input.
• Built-In BlueBOLT IP Management — Cloud-based remote outlet control, scheduling, automated reboot, and energy monitoring included with the unit.
• 4 Filter-Isolated Outlet Banks — Three LiFT-filtered banks for standard AV gear plus one high-current bank for amplifiers; each with independent filtration ratings.
• AVM Automatic Voltage Monitoring — Continuously checks line voltage and disconnects at 134V (over) or 100V (under) to protect connected equipment.
• Protect or Disconnect Surge Protection — Non-sacrificial protection with 2700 Joules energy dissipation and 135,000A peak impulse current rating.
• LiFT Linear Filtering Technology — Up to 76 dB EMI/RFI noise attenuation on standard banks; 60 dB on high-current bank.
• Auto Reset Function — Outlets automatically restore to their previous on/off state after a power interruption without manual intervention.
• Detachable 10 ft. 20A IEC Power Cord — Ready for connection to dedicated 20A circuits common in commercial AV installations.
• 12V DC Trigger Input — Integrates with control systems for automated power sequencing.
• Signal-Side Protection — Protects 1 LAN port (10/100/1000 BASE-T), 1 telephone line, and 2 coaxial connections.
• 1RU Rack-Mount Form Factor — Removable rack ears accommodate both rack and shelf installation in commercial AV environments.

Typical Applications

• Conference room AV rack protection and remote power management
• Boardroom AV system power management with scheduled power cycling
• House of worship AV systems requiring remote reboot capability
• Commercial meeting spaces with after-hours automated power management
• All-hands rooms and multi-purpose rooms with installed AV
• Training rooms with high-amperage AV rack systems
• Government AV installations with remote management requirements
• Broadcast facilities with IP-managed power distribution
