Panamax MR5100 Power Management System
Product Overview
The Panamax MR5100 power management system is a rack-mountable 11-outlet power conditioner and surge protector engineered for residential and commercial AV rack installations. It combines AVM (Automatic Voltage Monitoring), Protect or Disconnect surge protection, and Level 4 LiFT EMI/RFI filtration across 3 isolated outlet banks — including a dedicated high-current bank for amplifiers — at 15A total capacity. Currently available at a discounted price from its standard retail, the MR5100 is a mid-range MR Series unit suited for AV integrators who need solid multi-layer protection and filtration in a rack-mountable form factor.
Product Description
The Panamax MR5100 delivers three distinct layers of protection for AV rack systems. The first is AVM (Automatic Voltage Monitoring) — patented circuitry that continuously monitors incoming line voltage and displays the level on a front-panel LED voltmeter. If an undervoltage (brownout) or overvoltage condition is detected, the MR5100 displays a flashing red lightning bolt alert and automatically disconnects power to all 11 connected outlets. When voltage returns to a safe level, it reconnects automatically, protecting equipment from sustained exposure to unsafe voltage conditions.

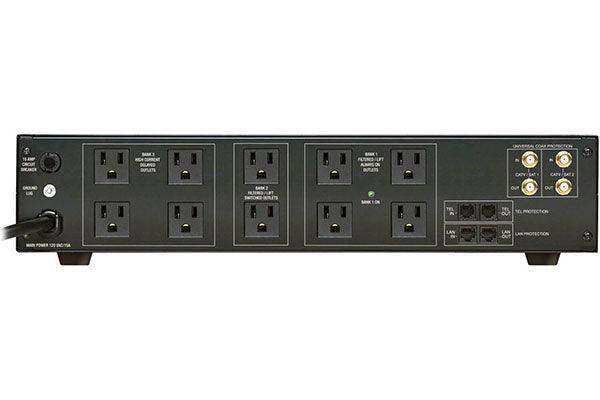

The second protection layer is Protect or Disconnect, Panamax's technology for handling catastrophic surge events such as lightning strikes. When the surge protection circuitry is overwhelmed by an extreme event, it instantly disconnects AC power to connected equipment — rather than attempting to absorb the surge through components that can fail — then reconnects when the event passes. The third layer is Level 4 LiFT linear filtration, which reduces EMI/RFI noise across 3 isolated outlet banks: Bank 1 is always on, Bank 2 is switched from the front-panel power button, and Bank 3 is a high-current, low-impedance bank with 4 outlets for amplifiers or subwoofers.
Signal line protection is included for 1 LAN (RJ-45, 10/100/1000bT), 1 telephone line (RJ-11), and 2 coaxial cable/satellite connections. A front-panel USB charger (500mA) is provided. The MR5100 ships with an 8-foot captive power cord with a low-profile plug, and rack ears are included for standard 19-inch rack installation. It carries a 3-year product warranty and a $5,000,000 Connected Equipment Protection Policy.
Key Features
- 11 protected and filtered outlets across 3 isolated banks
- 15A maximum current rating
- 1RU rack-mount form factor with included rack ears
- AVM (Automatic Voltage Monitoring): over/under voltage detection, auto-disconnect and auto-reconnect
- Protect or Disconnect surge protection: instant AC disconnect on extreme surge events
- Level 4 LiFT linear EMI/RFI filtration; dedicated high-current low-impedance bank (4 outlets)
- Power sequencing: 1 always-on bank, 1 switched bank, 1 delayed high-current bank
- Signal line protection: 1 LAN (RJ-45), 1 Tel (RJ-11), 2 Cable/Satellite (coax F)
- Front-panel LED voltmeter and USB charger (500mA)
- 8 ft. captive cord with low-profile plug; 3-year limited warranty
Typical Applications
- Conference room AV racks with mixed amplifier and signal processing loads
- Boardroom AV systems requiring multi-bank noise isolation and AVM monitoring
- House of worship AV installations with dedicated high-current amplifier outlets
- All-hands rooms and multi-purpose spaces with rack-mounted AV equipment
- Commercial meeting spaces managed by professional AV integrators
- Government AV installations requiring certified surge protection and voltage monitoring
Technical Specifications
| Specification | Value |
|---|---|
| Line Voltage | 120 VAC |
| Total Outlets | 11 |
| Isolated Banks | 3 (1 always-on, 1 switched, 1 high-current switched) |
| Maximum Current Rating | 15A |
| Voltage Regulation | No |
| Under-Voltage Shutoff | 95V ±3V |
| Over-Voltage Shutoff | 135V ±2V |
| Voltage Protection Rating (UL 1449 3rd Ed., 3,000A) | 330V |
| Energy Dissipation | 2,025 Joules |
| Response Time | 1ns |
| Initial Clamping Level | 200V Peak |
| Filtration Technology | LiFT Level 4 (3 isolated banks) |
| Signal Line Protection | 1 LAN (RJ-45), 1 Tel (RJ-11), 2 Cable/Satellite |
| USB Charging | 1x front-panel USB, 500mA |
| AC Power Cord | 8 ft. captive with low-profile plug |
| Dimensions | 17" W x 12" D x 3.5" H (4" with feet) |
| Weight | 13.5 lbs |
| Rack Mount | Yes, rack ears included |
| Warranty | 3-year limited; $5,000,000 Connected Equipment Protection Policy |
FAQs
Q: How many outlets does the MR5100 have and how are they organized?
The MR5100 has 11 total outlets across 3 isolated banks. Bank 1 (always on) keeps equipment continuously powered; Bank 2 is switched from the front-panel power button; Bank 3 is a dedicated high-current, low-impedance bank with 4 outlets for amplifiers and subwoofers, also switched with a startup delay to prevent speaker thump.
Q: What does AVM do and when does it activate?
AVM (Automatic Voltage Monitoring) monitors incoming line voltage continuously. On the MR5100, it triggers a protective disconnect when voltage drops below 95V or rises above 135V. It displays a flashing red lightning bolt alert during the disconnect condition, and automatically reconnects when voltage returns to a safe level.
Q: What is Protect or Disconnect?
Protect or Disconnect is Panamax's surge protection approach for catastrophic events. When the surge is too large for the suppression circuitry to absorb — such as a lightning-induced surge — the unit completely disconnects AC power to all connected equipment. This prevents surge energy from reaching connected components. Power reconnects automatically once the event clears.
Q: Does the MR5100 include signal line protection?
Yes. The MR5100 includes protection for 1 LAN port (RJ-45, 10/100/1000bT), 1 telephone line (RJ-11), and 2 coaxial cable/satellite connections (female F-connector). All signal protection is bidirectional and maintains full HD signal integrity.
Q: Does the MR5100 include voltage regulation?
No. The MR5100 monitors voltage and disconnects on unsafe levels, but does not regulate or correct output voltage. For active voltage regulation, see the Panamax Max 5400 (M5400-PM).
Q: Is the MR5100 rack-mountable?
Yes. The MR5100 ships with rack ears for standard 19-inch rack installation.
Q: What warranty and equipment protection does the MR5100 include?
The MR5100 includes a 3-year limited product warranty and a $5,000,000 Lifetime Limited Connected Equipment Protection Policy when purchased from an authorized Panamax internet dealer.
