Panamax MR4000 Power Management System
Product Overview
The Panamax MR4000 power management system is an 8-outlet rack-mountable power conditioner providing AVM (Automatic Voltage Monitoring), Protect or Disconnect surge protection, and Level 2 EMI/RFI filtration for AV rack installations. It delivers reliable multi-layer power protection at 15A capacity in a compact 1RU-height form factor with signal line protection for LAN and coaxial connections. Currently on sale from its standard retail price, the MR4000 is an entry-level MR Series option for integrators who need solid core power protection in a simple, clean rack package.
Product Description
The Panamax MR4000 delivers two core protection technologies across its 8 outlets. AVM (Automatic Voltage Monitoring) continuously monitors incoming line voltage; if it drops below 95V or rises above 140V, the MR4000 automatically disconnects power to all connected equipment, displaying a flashing red alert, and reconnects when voltage returns to a safe level. Protect or Disconnect handles catastrophic surge events — such as those caused by nearby lightning — by instantly disconnecting all AC power rather than attempting to absorb an overwhelming surge, then restoring power once conditions normalize.

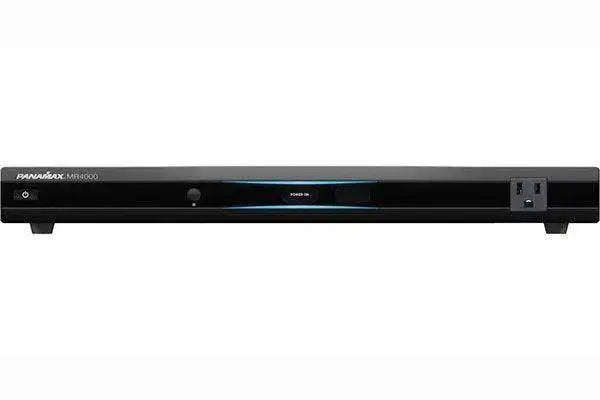

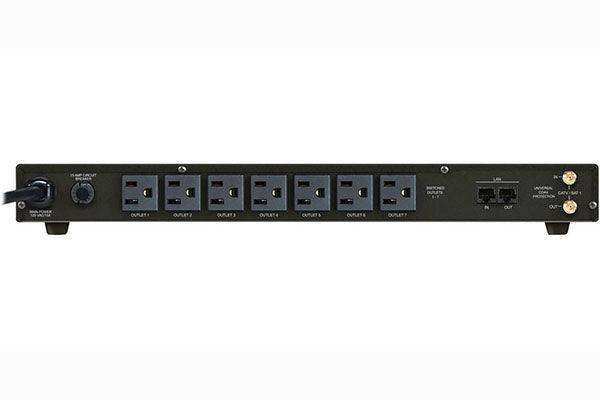

All 8 outlets are filtered and surge protected. One outlet is located on the front panel for easy device access; the remaining 7 are rear-panel outlets for permanent equipment connections. Level 2 EMI/RFI filtration reduces electrical noise across all outlets. Signal line protection is included for 1 LAN connection (RJ-45, 10/100bT) and 1 coaxial cable/satellite connection. The MR4000 ships with rack ears for 19-inch rack installation, an 8-foot captive power cord with a low-profile plug, and is backed by a 3-year product warranty and $5,000,000 Connected Equipment Protection Policy.
Key Features
- 8 protected and filtered outlets (1 front-panel, 7 rear-panel)
- 15A maximum current rating
- Rack-mountable, 1RU height (17" W x 6" D x 1.75" H) with included rack ears
- AVM (Automatic Voltage Monitoring): auto-disconnect on over/under voltage, auto-reconnect on recovery
- Protect or Disconnect surge protection: L-N, L-G, N-G protection modes; 1,350 Joules
- Level 2 EMI/RFI filtration on all outlets
- Signal line protection: 1 LAN (RJ-45), 1 Cable/Satellite (coax)
- 8 ft. captive cord with low-profile plug
- 3-year limited warranty; $5,000,000 Connected Equipment Protection Policy
Technical Specifications
| Specification | Value |
|---|---|
| Line Voltage | 120 VAC |
| Total Outlets | 8 (1 front, 7 rear) |
| Maximum Current Rating | 15A |
| Voltage Regulation | No |
| Under-Voltage Shutoff | 95V ±2V |
| Over-Voltage Shutoff | 140V ±4V |
| Voltage Protection Rating (UL 1449 3rd Ed., 3,000A) | 400V |
| Energy Dissipation | 1,350 Joules |
| Response Time | <1ns |
| Peak Impulse Current | 52,000A |
| Initial Clamping Level | 200V Peak |
| Filtration Technology | Level 2 RFI/EMI |
| Signal Line Protection | 1 LAN (RJ-45), 1 Cable/Satellite (coax) |
| AC Power Cord | 8 ft. captive with low-profile plug |
| Dimensions | 17" W x 6" D x 1.75" H (2.19" with feet) |
| Weight | 6.5 lbs |
| Rack Mount | Yes, rack ears included |
| Warranty | 3-year limited; $5,000,000 Connected Equipment Protection Policy |
