Panamax Module, CAT5 Ethernet - MOD-CAT5

Product Overview

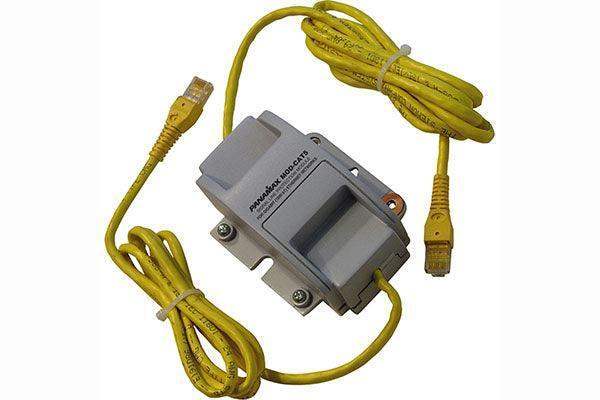

The Panamax MOD-CAT5 is a modular Ethernet surge protection module for MaxMOD-compatible Panamax base units, providing gigabit-capable transient suppression on a single CAT5/5e network line. It is designed for AV rack installations where network-connected equipment shares a rack with power management hardware and needs signal line protection beyond the AC circuit.

Product Description

The MOD-CAT5 plugs into the modular expansion bay of a compatible Panamax MaxMOD base unit, adding Ethernet signal line protection to an existing AV power management installation. It protects all 8 pins of an RJ-45 connection using differential and common-ground suppression modes, with a 19V initial clamping level at 1 mA and a capacitance of less than 6 pF — low enough to maintain signal integrity at Gigabit Ethernet speeds up to 1000 BASE-T. The module is CAT5E compliant and compatible with CAT 5, fast Ethernet, ATM, and other 100 MHz-per-pair active transport networks. Panamax MOD modules can be stacked or daisy-chained to protect multiple network lines on a single base unit installation. cULus certified. Available at Creation Networks.

Key Features

• Gigabit Ethernet Compatible — Low capacitance (<6 pF) maintains signal integrity through 1000 BASE-T; CAT5E compliant.
• All 8 Pins Protected — Differential and common-ground suppression on all RJ-45 pins.
• 19V Initial Clamping Level — Measured at 1 mA; appropriate for Ethernet signal line protection without signal degradation.
• MaxMOD Bay Compatible — Installs in modular expansion bays of compatible Panamax base units; stackable for multiple lines.
• cULus Certified — Meets US and Canadian safety standards.
