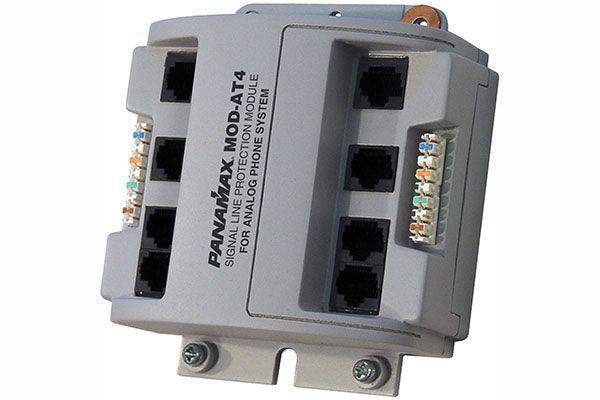

Panamax Module, Analog Tel, 4-Line - MOD-AT4
Panamax Module, Analog Tel, 4-Line - MOD-AT4 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Panamax Module, Analog Tel, 4-Line - MOD-AT4
Product Overview
The Panamax MOD-AT4 is a modular signal protection module for MaxMOD-compatible Panamax base units, providing surge suppression for up to 4 analog telephone lines. It is DSL modem compatible and uses multiple connector types for flexible installation in both residential and commercial AV rack deployments.
Product Description
The MOD-AT4 plugs into the modular expansion bay of a compatible Panamax MaxMOD base unit to add 4-line analog telephone surge protection to an existing AV power management installation. It protects 8 wires total across 4 phone pairs, using RJ-45, RJ-14, RJ-11, and 110 punchdown (S110D) connectors to accommodate a variety of cable termination styles without requiring adapters. Metallic and longitudinal suppression modes handle both differential and common-mode transients on the telephone pairs. The 260V clamping level and 30 pF capacitance make it appropriate for standard POTS and DSL (ADSL, G.Lite) circuits. The fuseless, auto-resetting design restores protection without manual intervention after a surge event. Available at Creation Networks.
Key Features
- 4-Line Analog Telephone Protection — Protects 8 wires across 4 phone pairs in a single module.
- Multi-Connector Flexibility — RJ-45, RJ-14, RJ-11, and S110D punchdown connectors support diverse termination options.
- DSL Compatible — Safe for ADSL and G.Lite DSL modem lines.
- Metallic & Longitudinal Suppression — Addresses both differential and common-mode transients on telephone pairs.
- Fuseless, Auto-Resetting — Automatically restores protection after a surge event without manual reset.
- MaxMOD Bay Compatible — Installs in modular expansion bays of compatible Panamax base units.
Technical Specifications
| Specification | Value |
|---|---|
| Lines Protected | 4 analog telephone lines |
| Wires Protected | 8 |
| Connectors | RJ-45, RJ-14, RJ-11, S110D punchdown |
| Suppression Modes | Metallic & Longitudinal |
| Clamping Level | 260V |
| Capacitance | 30 pF (approx.) |
| Fuseless / Auto-Resetting | Yes |
| DSL Compatible | Yes (ADSL, G.Lite) |
| Dimensions | 6" L x 2" W x 5" H |
| Compatibility | Panamax MaxMOD-compatible base units |
