Panamax Module, Analog Tel, 2-Line - MOD-AT2

Product Overview

The Panamax MOD-AT2 is a modular signal protection module for MaxMOD-compatible Panamax base units, providing surge suppression for up to 2 analog telephone lines. It supports RJ-11, RJ-14, RJ-45, and 110 punchdown connectors for installation flexibility, and is DSL modem compatible.

Product Description

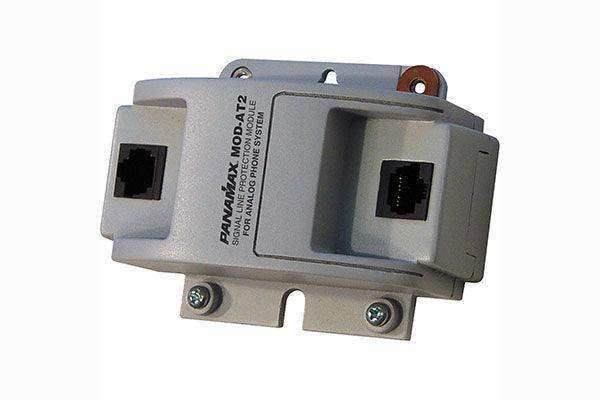

The MOD-AT2 plugs into the modular expansion bay of a compatible Panamax MaxMOD base unit, adding 2-line analog telephone surge protection alongside the base unit's AC and other signal line protection. It protects pins 3, 4, 5, and 6 of an RJ-45 connection — covering a single phone line via RJ-11 (2-wire) cord or dual-line via RJ-14 (4-wire) cord. Metallic and longitudinal suppression modes address differential and common-mode transients on the telephone pairs. The 260V clamping level and 30 pF capacitance are appropriate for both standard POTS and DSL modem lines. The fuseless, auto-resetting design requires no manual reset after a surge event. Eight suppression modes total provide comprehensive transient coverage for telephone wiring entering an AV rack or equipment enclosure. Available at Creation Networks.

Key Features

• 2-Line Analog Telephone Protection — Protects one single line (RJ-11) or one dual line (RJ-14) in a single module.
• Multi-Connector Support — RJ-45, RJ-14, RJ-11, and S110D punchdown connectors for diverse installation configurations.
• DSL Compatible — Safe for ADSL and G.Lite DSL modem lines at 260V clamping level.
• Metallic & Longitudinal Suppression — 8 suppression modes address both differential and common-mode telephone line transients.
• Fuseless, Auto-Resetting — Restores protection automatically after a surge; no manual reset required.
• MaxMOD Bay Compatible — Installs in modular expansion bays of compatible Panamax base units.
