Panamax MB850 850VA Shelf Mount battery Backup UPS

Product Overview

The Panamax MB850 UPS battery backup is an 850VA shelf-mount uninterruptible power supply that provides continuous battery backup and surge protection for AV equipment in locations where a rack-mount form factor is not available or required. Designed for home theater systems, small commercial AV deployments, and any installation where equipment sits on a shelf or credenza rather than in a rack, the MB850 combines battery backup with automatic voltage regulation (AVR), surge protection, and signal-side protection in a single unit. Its LCD display provides real-time visibility into input voltage, output voltage, battery capacity, estimated runtime, and load level.

Product Description

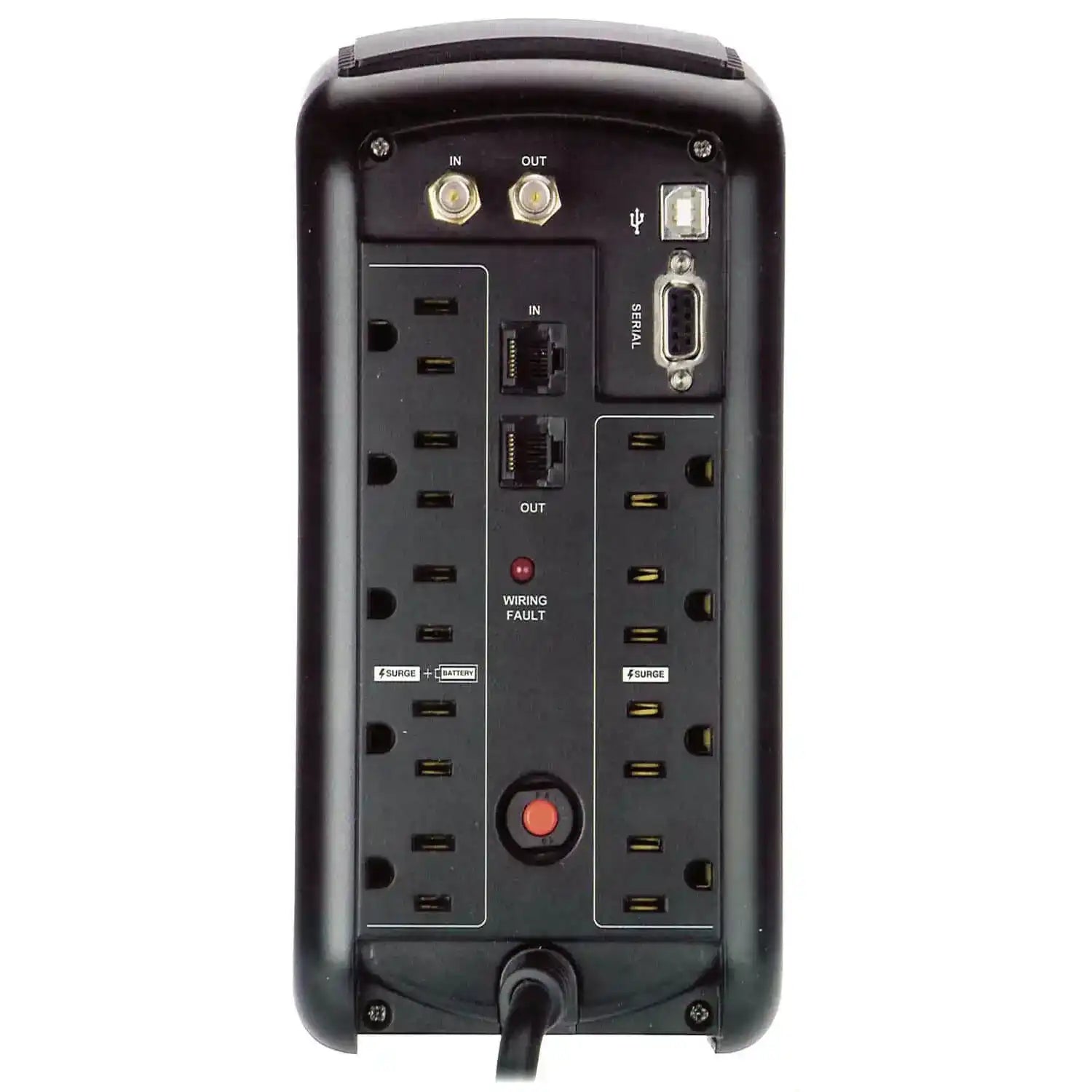

The MB850 provides 9 total outlets: 5 battery-powered and surge-protected rear outlets for equipment that must remain on during a power disruption, and 4 always-on surge-protected outlets for equipment that does not require battery backup. This split configuration allows integrators and end users to prioritize limited battery capacity toward the equipment that matters most — a lamp-based projector that needs to complete its cool-down cycle, a DVR recording in progress, or an AV processor that takes significant time to reboot — while still providing surge protection to secondary gear like subwoofers, power amplifiers, or playback sources.

Automatic Voltage Regulation (AVR) stabilizes the incoming AC voltage to an appropriate level for optimal equipment performance, eliminating the effects of brownouts and overvoltages on connected gear. During brownout conditions where utility voltage drops but does not fail completely, the AVR circuit boosts voltage back to the correct output level so equipment continues to operate without switching to battery mode. Over-voltage conditions above 140V and under-voltage conditions below 90V trigger a disconnect to protect connected equipment. The simulated sine wave output — rated at 850VA / 510W — is appropriate for most AV equipment including displays, processors, and networking gear.

Signal-side protection covers one LAN/telephone port combination and one coaxial cable/satellite connection, protecting the connected equipment from surges entering via signal lines as well as the AC power path. USB and serial port interfaces allow a connected computer to communicate with the MB850 for auto-shutdown software integration, enabling the MB850 to gracefully shut down a home theater PC or similar device before the battery is exhausted during a long power outage. The front-panel LCD and icon indicators give a clear, at-a-glance status of the UPS operating mode, battery condition, and any fault or overload conditions.

Key Features

• 850VA / 510W UPS Capacity — Provides battery backup for AV equipment during power disruptions.
• 5 Battery-Powered + 4 Surge-Protected Outlets — 9 total outlets allow prioritization of battery backup to critical equipment while still protecting secondary gear.
• Automatic Voltage Regulation (AVR) — Stabilizes input voltage to eliminate brownouts and overvoltages without switching to battery mode.
• Simulated Sine Wave Output — Suitable for displays, processors, and networking equipment; 120V ±5% output regulation.
• 4ms Transfer Time — Fast switchover to battery ensures connected equipment does not experience a power gap during outages.

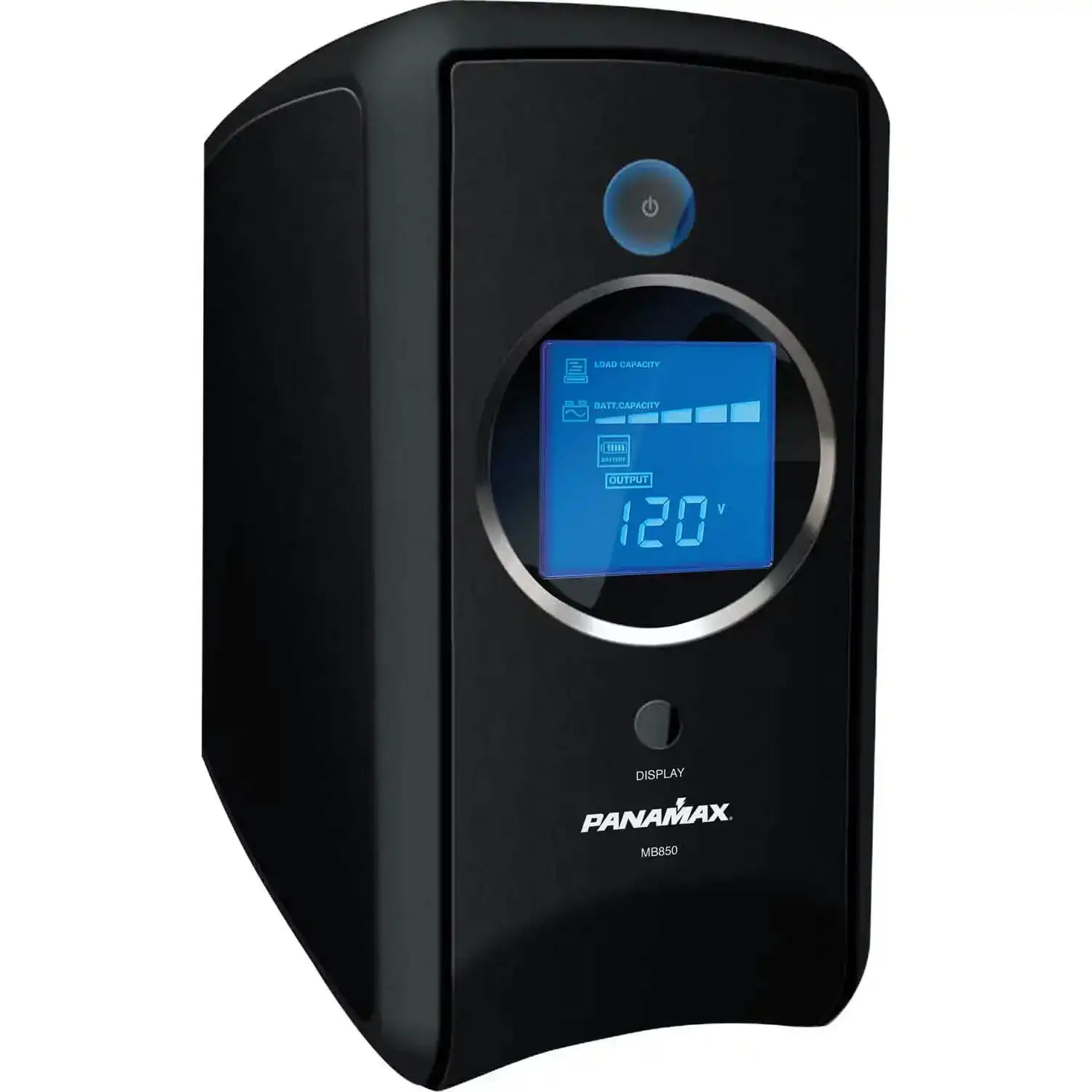

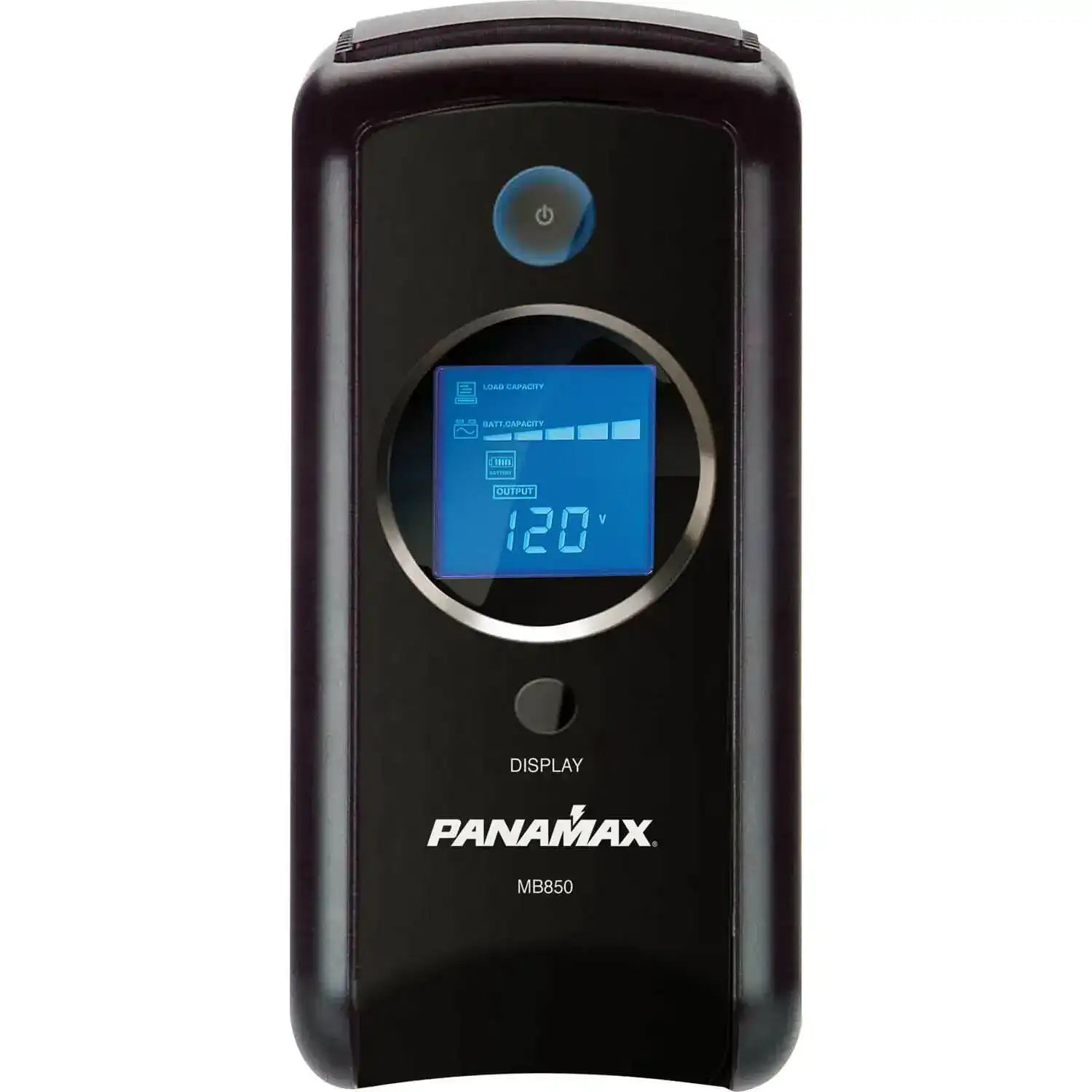

• LCD Front Panel Display — Shows input voltage, output voltage, AVR status, battery capacity, estimated runtime, and load level in real time.
• Over/Under Voltage Protection — Disconnects at 140V (over) or 90V (under) to protect connected equipment from unsafe voltage conditions.
• USB and Serial Port Interfaces — Enables communication with a connected PC for auto-shutdown software integration during extended outages.
• Signal-Side Protection — Protects 1 LAN/telephone port and 1 coaxial cable/satellite connection from signal-line surges.
• Wiring Fault Indicator — LED illuminates when wiring problems are detected in the connected circuit.
• Resettable Circuit Breaker — Provides overload protection without requiring fuse replacement.
• Shelf-Mount Form Factor — Designed for placement on shelves, credenzas, or inside AV furniture rather than rack installation.

Typical Applications

• Shelf-mounted AV system battery backup in commercial meeting spaces
• Conference room AV equipment protection in non-rack configurations
• House of worship AV systems with shelf-mount equipment
• Boardroom AV systems where rack installation is not available
• Training rooms with credenza-mounted AV equipment
• Multi-purpose rooms with non-rack AV installations
• Small commercial AV deployments requiring UPS battery backup
