Panamax Max-In-Wall Power & Signal Bay, 15A Code Compliant Extension System - MIW-XT

Product Overview

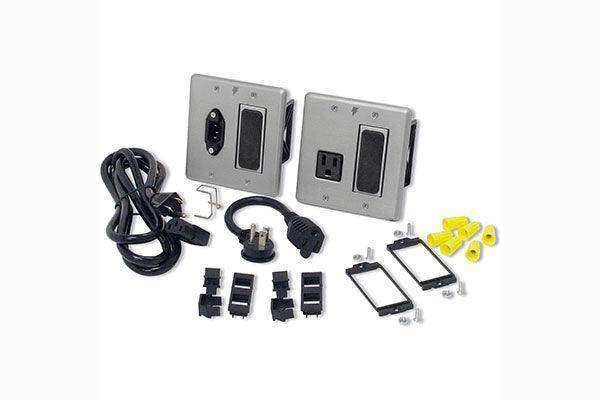

The Panamax MIW-XT Max-In-Wall Power & Signal Bay is a 15A code-compliant in-wall extension system designed for flat-panel display and projector installations requiring concealed power and AV signal runs. It accepts an IEC-C13 inlet cord from a wall-mount power management unit and terminates at a NEMA 5-15 outlet faceplate inside the wall cavity, enabling a clean, NEC-compliant power path without surface conduit. The MIW-XT also accommodates optional MIW Signal Line Modules (sold separately) for co-located AV signal pass-through.

Product Description

The MIW-XT is the foundational component of Panamax's Max-In-Wall ecosystem, purpose-built for commercial and residential AV integrators who need to run power inside walls to wall-mounted displays without violating electrical codes. The inlet faceplate accepts a standard IEC 320-C14 connector from a compatible Panamax power management unit, while the outlet faceplate presents a NEMA 5-15 receptacle on the display side — creating a continuous, code-compliant power path entirely within the wall cavity. The ultra-thin profile allows the connected display to hang less than one inch from the wall surface, maintaining a flush, professional appearance. EMI/RFI noise filtration is built into the outlet receptacle, providing clean power to the display even without a full power conditioner in the signal chain. CSA Certification confirms the system meets applicable electrical codes for in-wall wiring. The modular bay design supports optional Panamax MIW Signal Line Modules, allowing HDMI, component, or other AV signals to pass through the same rough-in location. The included 6-foot IEC power inlet cord provides connection flexibility between the power management unit and the MIW-XT inlet.

Key Features

• Code-Compliant In-Wall Power — CSA Certified for NEC-compliant in-wall power runs to wall-mounted displays without surface conduit.
• IEC 320-C14 Inlet / NEMA 5-15 Outlet — Standard connectors on both faceplates ensure compatibility with Panamax power management units and standard display power cables.
• EMI/RFI Noise Filtration — Built into the outlet receptacle for clean power delivery to connected AV equipment.
• Ultra-Thin Profile — Enables displays to mount less than one inch from the wall for a professional, flush installation appearance.
• Modular Signal Bay — Accommodates optional MIW Signal Line Modules (sold separately) for AV signal co-location at the same wall plate.
• 6-Foot IEC Inlet Cord Included — IEC 320-C13 to NEMA 5-15 flat plug; also includes 11-inch NEMA 5-15P to 5-15R AC power cord.
• 3-Year Product Warranty — Backed by Panamax's standard warranty for in-wall power products.
