Panamax Max-In-Wall Power-Pro-PFP, (2) 15A OUTLETS, Surge Protection, EMI/RF Filtration - MIW-POWER-PRO-PFP

Product Overview

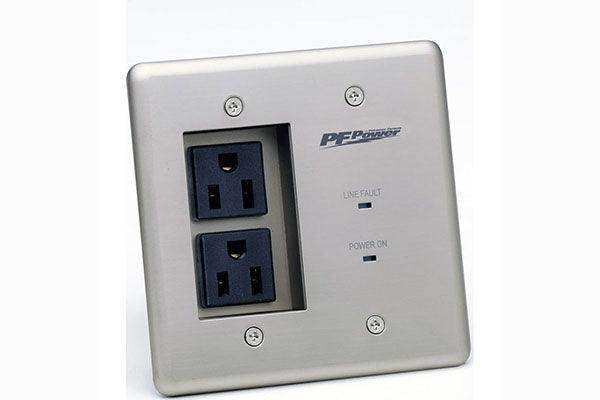

The Panamax MIW-POWER-PRO-PFP is an in-wall power outlet module delivering two protected and filtered 15A AC receptacles directly behind a wall-mounted display or projector. It integrates surge protection and EMI/RF filtration into a standard in-wall form factor, eliminating the need for a separate power strip or conditioner at the display location. Designed for commercial AV installations where clean, code-compliant in-wall power is required, it fits standard single-gang rough-in boxes and terminates with an enlarged 4.5" × 4.5" faceplate that accommodates oversized wall cutouts common in retrofit installations.

Product Description

The MIW-POWER-PRO-PFP provides a clean, protected power termination point for behind-display AV installations where running power through the wall cavity is required. Both recessed AC outlets are filtered and surge-protected, with peak impulse current handling of 32,500A and 546 joules of energy dissipation — sufficient for standard AV display and peripheral loads. The Protect-or-Disconnect circuitry monitors for catastrophic surges and cuts power to the outlets if a damaging event is detected, protecting connected equipment from sustained overvoltage. A blue LED indicates active power delivery to the outlets, while a separate LED illuminates to signal an overvoltage condition — providing at-a-glance status for both installers and end users. The enlarged 4.5" × 4.5" faceplate is specifically designed to cover larger rough-in cutouts that are common when retrofitting displays into existing drywall. Surge suppression meets UL 1449 standards with protection in all three modes: L-N, L-G, and N-G. Currently available at a reduced price of $169.95 (regularly $173.35), the MIW-POWER-PRO-PFP represents a cost-effective way to add professional-grade in-wall power protection to any display installation.

Key Features

• 2 × 15A Recessed Outlets — Both outlets are filtered and surge-protected for clean power delivery to wall-mounted AV equipment.
• 546-Joule Surge Protection — 32,500A peak impulse current handling with UL 1449-rated suppression in L-N, L-G, and N-G modes.
• Protect-or-Disconnect Circuitry — Automatically cuts AC power to outlets during a catastrophic surge event to protect connected equipment.
• EMI/RF Filtration — Built-in noise filtration reduces interference on the AC line from reaching connected displays and AV devices.
• Dual LED Status Indicators — Blue power LED and separate overvoltage warning LED provide clear system status at a glance.
• Enlarged 4.5" × 4.5" Faceplate — Covers oversized wall cutouts typical in retrofit or commercial AV installations.
• Thermal Fusing — Provides additional protection against sustained overload conditions.

Technical Specifications
